Hyster W40Z, W45Z, and W50Z Forklift 2006–2008 Factory Service Manual (P/N 1511565, 1499833, 897076)

• Model and configuration coverage: Identifies the Hyster W40Z [B218], W45Z [C215], and W50Z [D215] and distinguishes the covered battery and electrical configurations. It also includes application-specific lubrication data for standard, cold-storage, freezer/food-processing, and W50Z Cold Storage/Arctic packages.
• ZAPI controller diagnosis and setup: Uses separate factory sections for the W40Z and the W45Z/W50Z. Coverage includes selectable drive modes, custom performance parameters, set options, live tester data, handset operation, PC-interface functions, data logging, alarm history, fault-code isolation, controller removal and installation, and brass-stud replacement.
• Electrical repair procedures: Details contactor testing and replacement, key-switch and battery-indicator/hourmeter service, model- and voltage-specific fuse layouts, control-handle-arm proximity-switch checks and adjustment, old- and new-style control-handle card configuration and calibration, switch replacement, W50Z lift-link proximity-sensor testing, and early- versus late-model battery-charger diagnosis and battery-mode selection.
• Drive, brake, and DC motor work: Documents master drive unit removal, internal disassembly, inspection of gears, bearings, seals, and the drive axle, reassembly, and operational checks. Brake coverage includes override operation, removal, repair, installation, air-gap inspection, and troubleshooting. The DC motor section adds brush and commutator service, commutator stoning, brush alignment, and field/armature circuit testing for traction and hydraulic-pump motors.
• Hydraulic, lifting, frame, and wheel systems: Includes separate hydraulic layouts for the covered voltage configurations, hydraulic-unit and pump removal, reservoir service, lift-cylinder repacking, relief-pressure testing and adjustment, lift-linkage and load-wheel repair, compression-rod and upper/lower-link service, optional caster replacement, frame separation and assembly, battery-compartment adjustment, and load-wheel bearing work.
• Maintenance and technical references: Provides maintenance schedules, truck-blocking and disabled-truck procedures, battery charging and change-out information, hydraulic-oil, gear-oil, and grease specifications, battery fitment tables, weights, tire data, component-specific torque tables, metric/SAE fastener identification, electrical test data, troubleshooting charts, and factory schematics.

Repair and diagnostic depth

The set is organized as 15 Hyster service publications. DC Motor Maintenance and Industrial Battery are general Hyster all-electric-truck references. Metric and Inch (SAE) Fasteners applies to all models, while several brake, electrical, steering, and master drive unit chapters are shared with related A495/B495 trucks.

The electrical chapters follow the operating logic from the control-handle inputs through the ZAPI controller, main contactor, traction motor, brake coil, lift-pump motor, and lowering valve. Multi-page ZAPI fault charts correlate dash-display alarms, controller LED behavior, handset or PC messages, affected circuits, possible causes, and test points.

The documentation explains use of the ZAPI handset, adapter harness, interface cable, and PC software; those diagnostic tools and software are not included. Internal electronic repair of the controller itself is outside the scope. The controller sections instead cover setup, diagnosis, replacement, and the specified external brass-stud repair.

The hydraulic and capacities sections separate pressure-test data and battery specifications by truck class and voltage rather than treating all three models alike. Their tables distinguish 4,000-lb/24-volt, 4,500-lb/12-volt, 4,500-lb/24-volt, and 5,000-lb/24-volt arrangements. Battery references include compartment dimensions, cell arrangements, spacer requirements, allowable weight, charging methods, hydrometer testing, connector service, and the 12-volt battery tap. The periodic-maintenance chapter adds inspection schedules for controls, brakes, lift linkage, casters, wheels, tires, electrical components, and lubrication points.

Diagrams and important scope limits

Named visual references include the 1.8 Ton Schematic Diagram, 2.0-Ton 12-Volt Schematic, 2.0-Ton 24-Volt Schematic, Control Handle Assembly, Hydraulic Unit, and Drive Unit and Brake Assembly. The included Diagrams section, 8000 SRM 1011, contains nine named electrical schematic and diagram figures and applies to W40Z and W45Z only. The Electrical System publication points W50Z owners to Diagrams 8000 SRM 1228, which is not part of this set.

The brake chapter warns that the top Allen screws on the brake coil must not be disturbed because they alter the factory preset. It also shows the required brake-harness routing notch, which prevents the wiring from being damaged as the motor and brake assembly are installed. Hydraulic-cylinder repair notes warn against allowing sealant into the cylinder, where it can damage other hydraulic components.

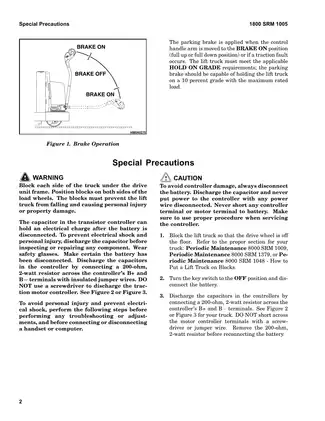

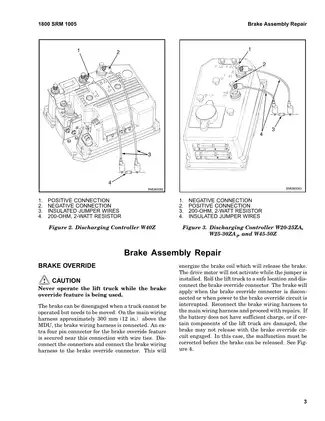

Because these trucks combine high-current battery circuits, stored energy in controller capacitors, a spring-applied brake, and pressurized hydraulics, the battery must be isolated, controller capacitors discharged by the specified method, and the truck securely blocked before repair or testing.

Publication breakdown — 343 PDF pages total
