Yamaha Grizzly 550 FI ATV Owner’s & Service Manual Set, 2009–2011 (P/N LIT-11616-22-19)

619 Pages • ZIP Download: 2 Printable PDFs (English)

4.7starstarstarstarstar_half(3)
$17.79 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Models & Model Codes:

Grizzly 550 FI — Owner’s Manual: YFM5FGA, YFM5FGHA, YFM5FGPA, YFM5FGPHA. Service Manual: YFM5FGY (28P1, 28P5), YFM5FGPY (34D1, 34D5, 34D8).

Grizzly 700 FI — Service Manual: YFM7FGY (5C0A, 5C0C), YFM7FGPY (43P1, 43P5, 43P8, 43PA).

Model Years: 2009–2011 (2009, 2010, 2001)


  • Fuel tank capacity: 20.0 L (5.28 US gal)

  • Fuel reserve: 4.5 L (1.19 US gal)

  • Tire pressure (Recommended): Front 5.0 psi (35.0 kPa), Rear 4.4 psi (30.0 kPa)

  • Tire pressure (Minimum): Front 4.6 psi (32.0 kPa), Rear 4.0 psi (27.0 kPa)

  • Maximum load capacity: 220.0 kg (485 lb)

  • Auxiliary DC jack rating: DC 12 V, 10 A (120 W)

  • Tire size (Front): AT25 x 8-12

  • Tire size (Rear): AT25 x 10-12

  • Transmission: V-belt automatic with shaft drive (both models)

Yamaha Manual Features & Selected Content Preview

Publication Pages

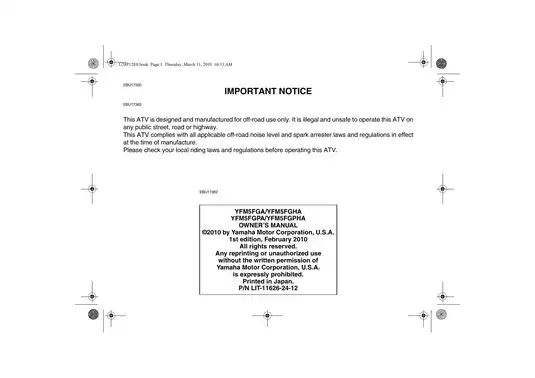

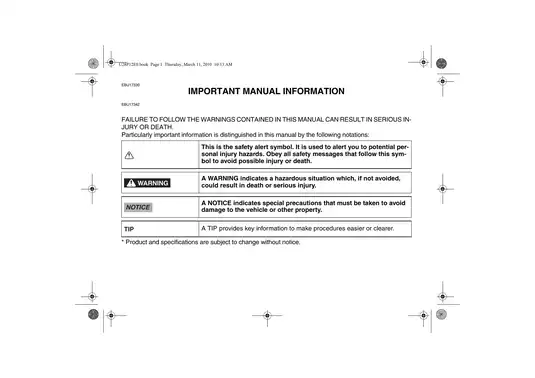

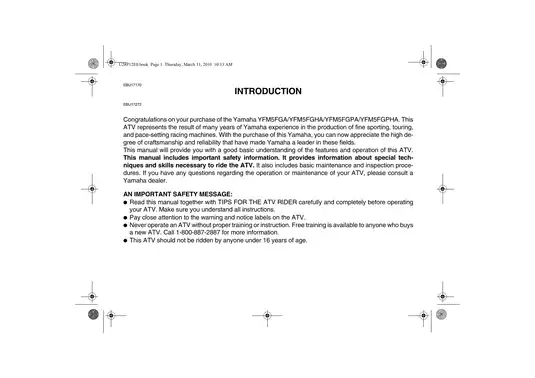

Owner’s Manual (P/N LIT-11626-24-12, first edition February 2010) — Grizzly 550 FI: YFM5FGA, YFM5FGHA, YFM5FGPA, YFM5FGPHA 172
2009 Service Manual (P/N LIT-11616-22-19, first edition May 2008) — Grizzly 550 FI: YFM5FGY, YFM5FGPY. Grizzly 700 FI: YFM7FGY, YFM7FGPY 447

The Owner’s Manual covers operating controls, pre-ride checks, and routine upkeep. The Service Manual covers workshop repairs and separates EPS procedures and model-specific specifications where they differ.

PDF Search, Bookmarks, and Wiring Diagrams

Text search and diagram detail. Both PDFs have searchable manual text and embedded chapter bookmarks. The two registration-card pages at the end of the Owner’s Manual are image pages. In the Service Manual, zoom in to read the small connector labels and wire codes in the fuel injection and EPS circuit diagrams and the full-color wiring sheet.

The ZIP contains two printable English PDFs totaling 619 pages, including the covers, front matter, blank pages, the two registration-card pages with safety information in the Owner’s Manual, and the final foldout-format wiring diagram in the Service Manual.


ATV Operation, Driveline Repair, and Fault Diagnosis

These are selected topics from the two manuals. The Owner’s Manual also covers long-term storage, and the Service Manual includes a chart for tracing driveline noise.

  • Owner maintenance. Pre-operation checks, maintenance schedules, fluid changes, spark plug inspection, air filter cleaning, fuse replacement, and headlight bulb replacement.

  • Engine repair. Engine removal, cylinder head and valve work, piston and ring inspection, camshaft and timing chain service, crankcase assembly, crankshaft installation, and oil pump checks.

  • CVT and driveline. V-belt inspection and replacement, primary and secondary sheave service, clutch inspection, transmission repair, and differential and final-drive backlash adjustment.

  • Fuel injection. Fuel pressure testing, injector and throttle body checks, throttle position sensor adjustment, onboard diagnostic mode, and ECU fault code troubleshooting.

  • Steering and brakes. EPS diagnostics, steering stem removal, tie rod and ball joint inspections, caliper and master cylinder service, and hydraulic brake bleeding.

  • Cooling and electrical systems. Radiator and cap checks, thermostat and water pump service, starting and charging system tests, and circuit diagrams for individual systems.

Yamaha wrote the Service Manual primarily for dealers and qualified mechanics who already understand vehicle repair.

On-Command 4WD and Routine Service

The Owner’s Manual explains the drive select lever, On-Command 4WD, and differential lock, along with engine break-in and riding guidance for slopes, descents, and shallow water crossings. It separates emission-control maintenance from general maintenance and lubrication.

Routine service covers engine oil, final gear oil, differential gear oil, coolant, and throttle cable free play. Carrier and trailer loading guidance, lighting configurations, and shock spring preload adjustments are also included.

Engine and Driveline Workshop Procedures

The engine chapter separates 550 and 700 piston dimensions, ring clearances, and wear limits. Exploded assembly views carry torque, lubrication, and replacement notes. Chassis procedures cover wheel bearings, suspension arms, and toe-in adjustment.

The secondary sheave procedure identifies spring compressor YM-04134. The clutch carrier nut has a left-hand thread. Driveline procedures include middle gear alignment, CV shaft disassembly, and final-drive pinion preload and shim selection. Yamaha treats the front ring gear and differential gear as a factory-assembled unit and warns against taking it apart.

Fuel Injection, EPS, and Circuit References

The fuel injection fault tables link codes to sensor and actuator checks, connector checks, and ECU recovery procedures. The fuel pressure procedure identifies gauge YU-03153 and adapter YM-03176.

EPS diagnostics distinguish current faults from fault history. The torque sensor, motor, battery, and charging checks help trace an EPS warning before replacing the steering unit. Yamaha covers removal and electrical testing of the EPS assembly and warns that internal disassembly can damage it.

Circuit references include the 2WD/4WD selection and starter cut-off diagrams, plus the EPS block diagram. The lubrication and cooling diagrams accompany torque tables, fluid capacities, wear limits, and electrical test values. For brake and steering repair, consult a qualified mechanic if the work is beyond your experience.

Sample CVT Wear Limits and Fuel Pressure Specs

For the 550 and 700 variants in the Service Manual, the V-belt is 33.3 mm (1.31 in) wide as standard, with a wear limit of 30.0 mm (1.18 in). The wet centrifugal clutch shoe has a standard thickness of 1.5 mm (0.06 in) and a wear limit of 1.0 mm (0.04 in).

The fuel injection procedure specifies 324 kPa (46.1 psi) for the fuel pressure check with the engine running.
