2008 Kawasaki KFX450R (KSF450B) ATV Service Manual

This Kawasaki service manual covers the 2008 KFX450R (KSF450B), including model codes KSF450B8F and KSF450B8FA. It combines periodic maintenance with engine, drivetrain, chassis, and electrical repair procedures.

• Engine repair: Engine removal and installation, cylinder-head service, valve-clearance adjustment, camshaft timing, piston inspection, and crankshaft work.

• Clutch and transmission: Clutch disassembly, friction-plate inspection, external shift-mechanism service, and internal checks of transmission shafts, gears, shift forks, and drum.

• DFI diagnosis: Self-diagnosis terminal procedures, service-code interpretation, ECU circuit checks, injector testing, and fuel-pressure and delivery measurements.

• Cooling and lubrication: Radiator pressure testing, water-pump service, oil-pump inspection, and oil-pressure testing with system diagrams and component specifications.

• Brakes, wheels, and frame: Brake bleeding, caliper seal replacement, master-cylinder inspection, wheel and tire service, hub-bearing replacement, and frame inspection.

• Suspension and final drive: Shock-absorber adjustment, suspension-arm and swingarm service, steering-stem and tie-rod inspection, chain adjustment, and rear-axle work.

• Electrical troubleshooting: Wiring diagrams and connector information support charging-system tests, ignition diagnosis, starter-motor repair, and lighting and radiator-fan circuit checks.

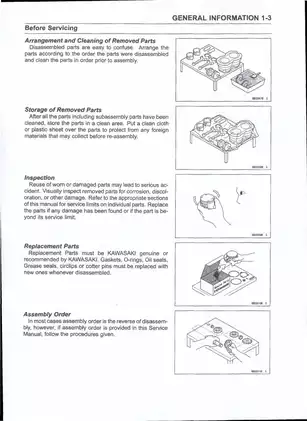

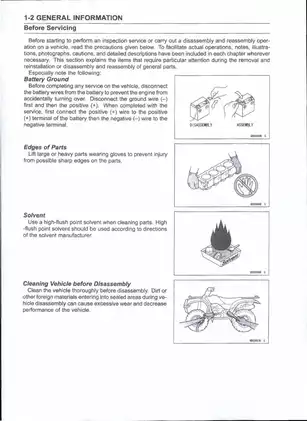

The procedures suit technicians and experienced owners familiar with mechanical measurements and electrical testing; internal engine work also calls for the specified workshop tools.

DFI Fault Tracing and Fuel-System Service

The DFI Diagnosis Flow Chart and service-code table organize fault isolation, while the DFI System Wiring Diagram identifies circuit connections. ECU power-supply checks and main throttle sensor output-voltage tests provide component-level diagnostic detail.

Fuel-pressure and delivery tests address problems that self-diagnosis may not identify. These checks help distinguish fuel-supply faults from electrical faults before a pump, injector, or sensor is replaced.

The fuel-pump pressure regulator and filter are built into the pump assembly; the service coverage treats faults in these components at the pump-assembly level.

Component handling: Excessive force on the resin fuel-pump outlet or throttle-body delivery pipe can break the connection. The main throttle sensor is factory-set and nonadjustable, and dropping the throttle body can damage it.

Valve Timing, Clutch Work, and Internal Engine Inspection

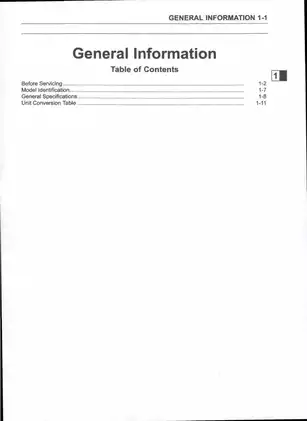

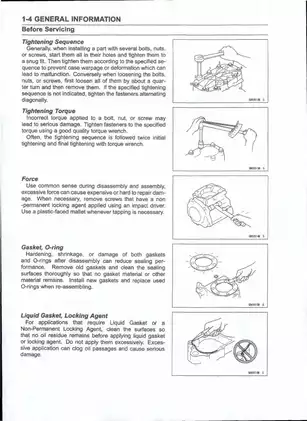

Maintenance interval charts, component torque tables, and a unit conversion table accompany the repair procedures. Cylinder-head work includes shim-under-bucket valve adjustment, valve-guide replacement, valve-seat repair, and fastener tightening requirements.

Camshaft installation and timing instructions sit alongside cylinder, piston, and ring inspections. The specifications distinguish standard dimensions from service limits when assessing wear.

Clutch and transmission: Inspection extends to clutch-plate wear and warpage, housing damage, gear engagement surfaces, and shift-fork clearances. Crankshaft disassembly and reassembly require a shop with the necessary tools and equipment.

Right engine cover: This procedure is incomplete in the supplied file because printed page 6-11 is missing.

Cooling and Oil-Circulation Checks

The Coolant Flow Chart identifies the cooling circuit, followed by radiator, cap, hose, and water-pump procedures. Pressure testing and component inspections support diagnosis of leakage and overheating.

The Lubrication System Chart traces oil circulation through the engine. Oil-pressure testing, pump inspection, and oil-level precautions for the semi-dry-sump system distinguish lubrication diagnosis from a routine oil change.

Brake, Suspension, and Chassis Repairs

Brake coverage goes beyond pad replacement to caliper fluid seals, master-cylinder components, disc inspection, and bleeding. Wheel and tire procedures include removal, installation, and bearing inspection.

Suspension sections cover damping and spring-preload adjustments, linkage bearings, swingarm service, and suspension arms. Steering checks address toe alignment and tie-rod condition, while final-drive procedures cover sprockets, the rear axle, and its bearing housing.

Frame and bodywork sections describe cover, fender, and rear-frame removal, with inspection criteria for structural damage.

Electrical Circuits and Harness Routing

Charging and ignition tests include component specifications and troubleshooting procedures. The Electric Starter Circuit accompanies starter-motor inspection and repair, linking the electrical checks to the mechanical assembly.

Cable, Wire and Hose Routing illustrations show harness paths and attachment points around the chassis. These views support reassembly after engine, frame, or electrical work.

A Preview of Valve, Oil, and Fuel Specifications

The valve section lists a standard intake clearance of 0.10–0.15 mm with the engine cold; this is an adjustment specification, not a wear limit. Lubrication data give 1.35 L for a completely dry engine, with separate quantities for routine oil changes. Fuel-line diagnosis specifies 294 kPa with the engine idling. Each value belongs to its stated measurement or filling condition.

Finding Sections and Reading Wiring Detail

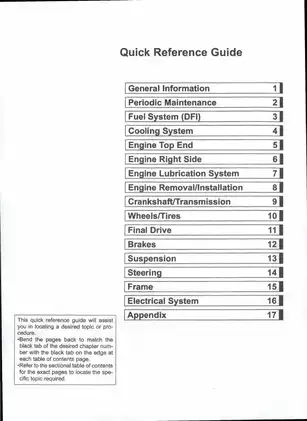

Search, navigation, and diagram detail: The PDF has no searchable text or bookmarks. Navigation uses chapter contents and printed page numbers, and some pages are out of sequence. Small wire-color labels need magnification and remain partly blurred.

Supplied as one English-language, 477-page printable PDF. That total includes one Quick Reference Guide page and two placeholder pages marked “Dummy Page.”
