2013 Arctic Cat Wildcat X Service Manual - Repair Procedures

Comprehensive Arctic Cat Wildcat X service documentation covering fuser assembly, paper path, and imaging procedures with diagnostic flowcharts. Ref: 0444-213, 0644-389.

5.0starstarstarstarstar(1)
visibility Preview Available
Arctic Cat 2013 Arctic Cat Wildcat X Service Manual - Repair Procedures manual page preview - page 1 of 197

Sample pages from the 2013 Arctic Cat Wildcat X Service Manual - Repair Procedures manual

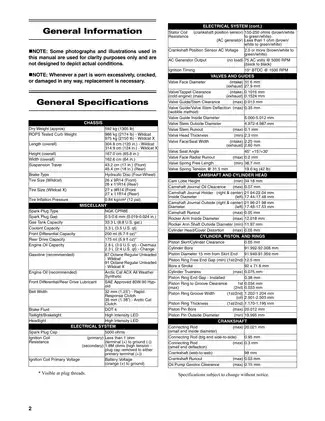

Arctic Cat 2013 Arctic Cat Wildcat X Service Manual - Repair Procedures manual preview page 1 - thumbnail

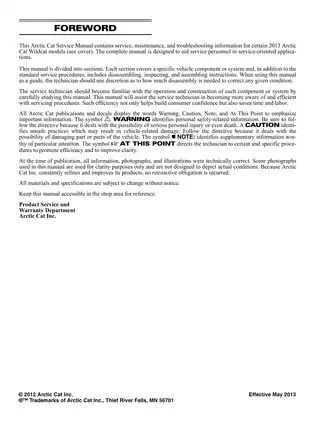

Arctic Cat 2013 Arctic Cat Wildcat X Service Manual - Repair Procedures manual preview page 4 - thumbnail
Arctic Cat 2013 Arctic Cat Wildcat X Service Manual - Repair Procedures manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$18.00 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
1 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Arctic Cat Models Covered & Key Technical Specifications

Models: 2013 Arctic Cat Wildcat, 2013 Arctic Cat Wildcat X
Sub-models / Variants: 4-Wheel Drive, Rapid Response Clutch, Arctic Cat Clutch
Build Years: 2013
Technical Data:

  • Engine displacement: 951 cc (inferred from common engine architecture for this unit)
  • Compression (Front/Rear, Wildcat): 125–145 PSI / 165–185 PSI
  • Compression (Front/Rear, Wildcat X): 190–220 PSI / 190–220 PSI
  • Valve clearance (intake): 0.1016 mm (0.004 in.)
  • Valve clearance (exhaust): 0.1524 mm (0.006 in.)
  • Ignition timing: 10° BTDC @ 1500 RPM
  • Spark plug gap: 0.5–0.6 mm (0.019–0.024 in.)
  • Fuel tank capacity: 33.3 L (8.8 U.S. gal.)
  • Coolant capacity: 3.3 L (3.5 U.S. qt)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
31549 / Susan Stewart
File Size:
24.71 MB
File Type:
PDF
Language:
English
Pages:
197
Printable:
Yes
Category:
UTV
Last updated / verified
Jun 24, 2025

Arctic Cat Manual Features & Content Preview

2013 Arctic Cat Wildcat and Wildcat X Technical Documentation

  • Covers 2013 Arctic Cat Wildcat and Wildcat X utility vehicles, including variants with both Rapid Response Clutch and standard Arctic Cat Clutch systems
  • Official Arctic Cat OEM publication P/N 2012 Arctic Cat Inc. Effective May 2013, 197-page manual
  • Features 197 pages of mechanical assembly, component inspection, and torque specifications, including engine, drivetrain, suspension, and electrical systems
  • Delivers searchable text and high-resolution diagrams suitable for the workshop floor
  • File downloads to your account within seconds of checkout
  • Indexed PDF search covers every chapter and appendix for rapid part-number lookup
  • This 2013 service manual documents the complete range of 2013 Arctic Cat Wildcat and Wildcat X UTVs, bridging the differences between clutch and engine specifications for the 951 cc platform

Engine and Drivetrain Documentation

This 197-page Arctic Cat service manual provides technical data and assembly instructions for the 2013 Arctic Cat Wildcat series. The document covers engine top-side servicing, including valve clearance adjustment, cam chain inspection, and piston ring replacement, along with detailed procedures for removing the engine and transmission from the frame. Additional sections detail the fuel, lubrication, and cooling systems, providing specifications for radiators, water pumps, and electronic fuel injection components.

Technical Specifications Preview

The manual includes extensive torque tables and reference charts for the 2013 Arctic Cat Wildcat platform. Engine compression for the Wildcat X is documented at 190–220 PSI. Intake valve clearance is listed at 0.1016 mm in the cylinder head specification table. The manual specifies 10° BTDC @ 1500 RPM for ignition timing. The coolant system capacity for these 2013 units is documented at 3.3 liters. Reference only — always consult a certified technician before performing service on this equipment. This official OEM workshop manual provides detailed assembly, maintenance, and technical specifications for the 2013 Arctic Cat Wildcat and Wildcat X, documenting engine, chassis, drivetrain, and fuel system parameters for the model-year fleet.

Manual FAQ, Purchase & Download Details

What technical specification tables and reference data charts are contained in the manual? keyboard_arrow_down

Manual contains comprehensive specification tables for the engine, chassis, and electrical systems, including torque conversion charts and component-specific tolerance data. These tables are organized to provide quick access to reference values for various machine parts.

Is the electrical system coverage deep enough to show component wiring and connector pinout details? keyboard_arrow_down

Electrical system sections include detailed information on sensors, ignition components, and wiring references to support comprehensive system analysis.

Are exploded views and component diagrams provided for the major mechanical assemblies? keyboard_arrow_down

Document includes numerous exploded views and parts illustrations throughout the engine, transmission, and suspension chapters. These diagrams show how individual components are arranged and assembled within their respective systems. They serve as a visual reference for understanding the construction of the machine.

Which specific vehicle systems receive dedicated chapter coverage in this document? keyboard_arrow_down

Manual provides structured chapters covering the engine and transmission, fuel, lubrication and cooling, electrical systems, drive and brake systems, suspension, and steering and frame controls.

Can the manual be used to look up intake and exhaust valve clearance references and tightening spec categories? keyboard_arrow_down

Document lists specific intake and exhaust valve clearance references within the engine sections. Specification tables also contain torque categories for engine components and fasteners.
