1999–2002 Suzuki LT-F250 / LT-F250F Quadrunner 250 ATV Factory Service Manual (P/N 99500-42143-01E)

This Suzuki factory service manual covers the 1999–2002 LT-F250 and LT-F250F Quadrunner 250 ATVs, publication P/N 99500-42143-01E. It combines the base workshop sections with integrated Y/FY, K1/FK1, and FK2 model updates.

• Engine repair: Engine removal and installation, cylinder-head service, crankcase separation, piston and crankshaft inspection, cam-chain timing, and recoil-starter repair.

• Clutch and transmission: Centrifugal-clutch inspection, engagement and lock-up tests, transmission disassembly, shift-fork checks, and model-specific sub-transmission assembly views.

• LT-F250F shaft drive: Secondary bevel-gear service, front differential overhaul, bearing-preload checks, backlash measurement, tooth-contact inspection, and shim adjustment.

• Fuel and lubrication: Fuel-pump diagnosis, BST31SS and BSR29SS carburetor service, float and needle-valve inspection, cooling-fan thermoswitch testing, and a lubrication-system chart.

• Brakes and chassis: Front hydraulic and rear mechanical drum-brake service, master-cylinder repair, suspension inspection, steering adjustment, wheel-bearing replacement, and selection-cable adjustment.

• Electrical diagnosis: Charging, starting, and CDI ignition troubleshooting, starter-motor overhaul, relay tests, wiring diagrams, and harness-routing illustrations.

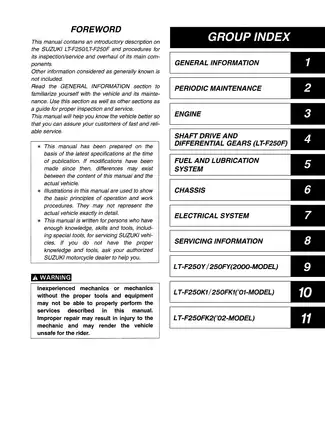

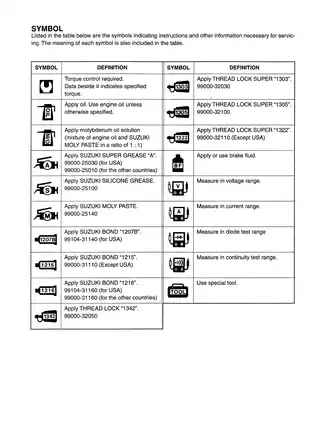

The manual is written for mechanics who already have the knowledge, skills, and special tools needed to service Suzuki vehicles; basic workshop methods are assumed.

Maintenance and Engine Repair

Maintenance charts organize service by distance and elapsed time. Tune-up procedures cover valve adjustment, throttle-cable play, brake-pedal height, lubrication, and compression and oil-pressure checks.

The oil-filter installation illustration highlights an important repair trap: incorrect filter orientation can cause serious engine damage.

Internal engine coverage includes valve-guide replacement, valve-seat machining, camshaft-journal inspection, cylinder and piston wear assessment, and crankshaft installation. Tool references include 09920-13120, the crankcase separating tool.

Transmission and sub-transmission sectional views show the positions of gears, bushings, washers, and circlips. These views distinguish the two model configurations during reassembly. The clutch shoe assembly is treated as nonserviceable, while the oil pump is replaced as a complete unit rather than internally overhauled.

Shaft Drive and Differential Adjustment

The LT-F250F sections include separate adjustment information for the secondary bevel gears and front differential. Bearing preload, side-gear clearance, gear backlash, and tooth contact each have their own inspection or adjustment coverage.

Tooth-contact illustrations distinguish contact at the tooth tip from contact at the root. Shim charts and part-number lists help relate the observed contact pattern to the appropriate adjustment, rather than relying on backlash alone.

Carburetor Service and Model Updates

Fuel-pump inspection addresses diaphragm, check-valve, and leakage faults. Carburetor inspection explains needle-valve conditions associated with overflow or restricted fuel delivery, alongside float adjustment and pilot-system service.

The BST31SS cleaning instructions flag the risk of diaphragm damage from compressed air. The Y/FY update supplies revised BSR29SS procedures and carburetor-hose routing.

Later sections provide changed specifications and refer back to earlier chapters for unchanged work. The FK2 update adds regulator/rectifier, ignition/starter control relay, and CDI checks, including a starting-fault chart covering the parking-brake interlock.

Brake, Suspension, and Steering Service

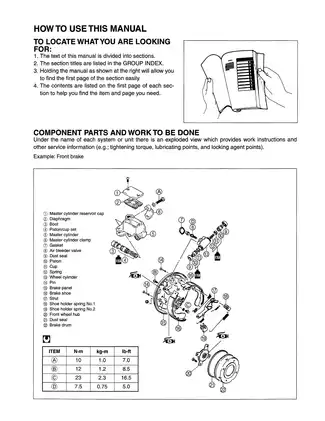

Front-brake exploded views accompany drum, shoe, wheel-cylinder, and master-cylinder inspection procedures. Rear-brake coverage addresses the mechanical operating components, while chassis sections cover suspension-arm bushings, hub bearings, steering components, toe-in, and range and selection cables.

Working on ATVs carries inherent safety risks. Verify the applicable specifications for your machine, and consult a certified professional before major mechanical teardowns or brake repairs.

Electrical Troubleshooting and Circuit Drawings

Charging System and Starter System circuit drawings accompany fault-finding charts for battery discharge, no-crank conditions, and ignition faults. Inspection data distinguish generator, regulator/rectifier, relay, coil, and wiring problems.

Connector-terminal test tables specify the use of 09900-25008, the multi circuit tester set. Market-specific wiring diagrams and harness, cable, and hose-routing drawings support circuit tracing and reassembly.

A Sample of Throttle and Differential Specifications

These examples represent a small selection of the manual’s adjustment and lubricant data.

The X/FX and Y/FY service data specify throttle-cable play of 1–3 mm. The K1/FK1 and FK2 data specify 3–5 mm, showing why the model update matters when selecting adjustment specifications.

For the LT-F250F front differential, the manual lists a 150 ml capacity and SAE #90 hypoid gear oil meeting API GL-5.

Searchable Text, Bookmarks, and PDF Contents

Text searches and diagram detail: OCR text supports searches across the service chapters and model updates, with occasional recognition errors, especially in small diagram labels. Embedded bookmarks link to the main groups and subsections. Small wiring labels are best read at higher zoom.

One printable English-language PDF contains 353 pages total: 296 pages for the cover, introductory material, and Sections 1–8; 26 pages for the Y/FY update; 14 for K1/FK1; and 17 for FK2. The cover, three introductory pages, and all update opening pages are already included in that total.
