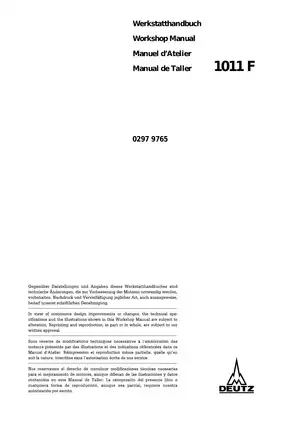

2001 Deutz F 1011 F / BF 1011 F Diesel Engine Workshop Manual (P/N 0297 9765)

This original Deutz workshop manual, P/N 0297 9765, 2001 edition, covers the 1011 F diesel engine family, including F 1011 F and BF 1011 F versions in two-, three-, and four-cylinder configurations.

Searchable Repair Text and PDF Contents

Text search and navigation: The repair instructions have searchable text, although some small-print cover text is not searchable. There are no embedded PDF bookmarks.

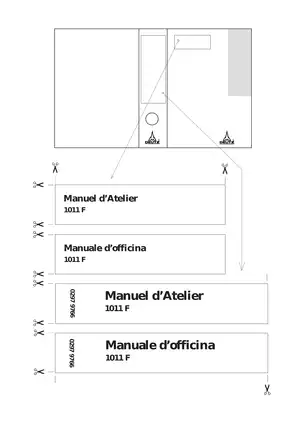

One printable PDF contains 410 pages, with the main workshop content in German, English, French, and Spanish. The total includes two binder-label sheets, one tool-ordering sheet, and 12 blank pages.

Engine Stripdown, Component Repair and Adjustment

The following selected workshop topics outline the repair coverage. Further subjects include starter ring-gear replacement and crankcase-breather installation.

• Engine assembly: Complete engine disassembly and reassembly, crankshaft bearings, pistons, connecting rods, cylinder head, and valve gear.

• Crankcase repair: Cylinder-bore inspection, slip-fit liner replacement, camshaft bearing-bush installation, and control-rod guide-bush work.

• Timing drive: Camshaft and crankshaft gears, toothed-belt replacement and tensioning, idler pulley installation, and valve-timing checks.

• Fuel injection: Compression testing, injector opening-pressure adjustment, tightness and spray-pattern checks, and on-engine injection-pump testing.

• Cooling and lubrication: Blower and fan-drive service, oil-cooler and thermostat installation, lube-oil pump removal and refitting, and oil-pressure control valves.

• Auxiliary equipment: Hydraulic-pump bracket repair and removal and refitting of the hydraulic pump, air compressor, alternator, and exhaust turbocharger.

Written for qualified personnel, this manual assumes access to the required measuring equipment, hand tools, and special tools.

Engine Inspection and Rebuild Planning

Step-by-step instructions connect engine stripdown with component inspection and reassembly, supporting overhaul work in an appropriately equipped independent workshop. Crankshaft inspection limits, connecting-rod alignment checks, piston-ring measurements, and valve-seat reworking data provide references for evaluating components before assembly.

Pistons and cylinder head: The manual distinguishes FL and FM piston-class selection from BF engine requirements. Piston-projection measurements determine the appropriate notched cylinder-head gasket. Slip-fit liner replacement is covered with the requirement for new standard pistons.

Drawings and measurement references: Valve-clearance schematics, cylinder-head bolt tightening-order drawings, bearing-bush installation diagrams, and piston-projection measurement views accompany the procedures.

The cylinder-head instructions address protection of valve-stem seals from the stem splines during assembly. Front-cover assembly notes also identify the shaft-seal lip as vulnerable to damage when installing the centrifugal governor.

Injection Tests, Timing Checks and Special Tools

The on-engine injection-pump leak test applies specifically to pumps 0417 9573 and 0417 9981 with a constant-pressure valve. Pump installation includes compensating-gasket selection from measured depth, with different installation dimensions for B/FL and B/FM engines.

Injector procedures cover disassembly, shim selection, opening-pressure adjustment, leakage assessment, and buzzing and spray-pattern tests. Because high-pressure fuel systems pose severe safety hazards, rely on the original OEM procedures and qualified professional judgment before beginning hands-on work.

Timing service includes dedicated adjusting pins, belt-tension measurement, and a separate valve-timing check. Tool references identify adjusting pin 100 700, toothed-belt tension gauge 100 720, piston-projection gauge 100 750, and injection-pump gasket template 103 020.

Accessory Work and Repair Boundaries

Hydraulic-pump and air-compressor coverage concerns removal and refitting; separate component-repair procedures cover the hydraulic-pump bracket and fan drive. The turbocharger section describes removal, replacement, and refitting of the complete unit rather than internal rebuilding.

The front-cover chapter covers the centrifugal governor, shutdown mechanism, and torque control. Precise engine-power and speed adjustment requires a bench test.

The main complete-engine sequence describes the standard specification and excludes customization components. Later sections cover alternative alternator and fan-drive arrangements and the manifold-pressure compensator. Operating and routine-maintenance instructions are assigned to the separate Operation Manual.

Selected Cylinder-Bore and Compression References

The cylinder-inspection section specifies a standard bore of 91 mm with a +0.02 mm tolerance and a 91.1 mm wear limit.

Compression-test reference ranges are 25–30 bar for F engines and 22–27 bar for BF engines. The manual treats these readings primarily as comparisons between cylinders because cranking speed and installation altitude affect the measured pressure.
