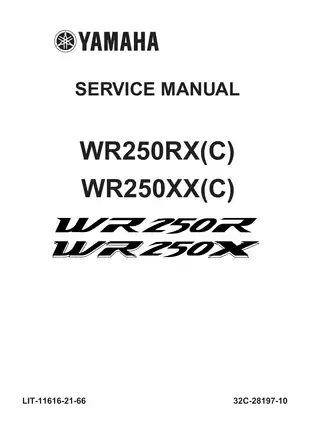

2008–2013 Yamaha WR250R, WR250X Factory Service Manual (P/N LIT-11616-21-66)

• Three-document, 588-page PDF set: the 364-page WR250RX(C)/WR250XX(C) Service Manual, P/N LIT-11616-21-66, plus separate 112-page WR25RZ(C) and WR25XZ(C) Owner's Manuals, P/N LIT-11626-23-56 and LIT-11626-23-57.
• Covers engine removal and internal repair, including camshafts and timing chain, cylinder head, valves and seats, cylinder and piston, clutch, oil pump and balancer gear, starter clutch, crankcase, crankshaft, and six-speed transmission work.
• Details chassis repair procedures for the R/X-specific wheels and front brakes, calipers and master cylinders, hydraulic brake bleeding, fork disassembly and assembly, steering head, rear shock linkage, swingarm, and chain drive.
• Documents fuel-injection and cooling-system service, with fuel tank and pump removal, injector and pressure-regulator checks, throttle-position-sensor adjustment, air-induction and California canister coverage, radiator testing, thermostat inspection, and water-pump assembly.
• Provides ECU self-diagnosis, fault-code troubleshooting, diagnostic-mode checks, actuator tests, and fail-safe tables, backed by eight system-specific circuit diagrams, including ignition, electric-starting, charging, cooling, and fuel-injection circuits, plus an overall 2008 wiring diagram.
• Supplies exploded views and job charts along with engine and chassis torque tables, capacities, clearances, wear limits, electrical test values, lubrication and cooling diagrams, cable and brake-hose routing, and a factory special-tool list with part numbers.

Exact Yamaha Model and Publication Coverage

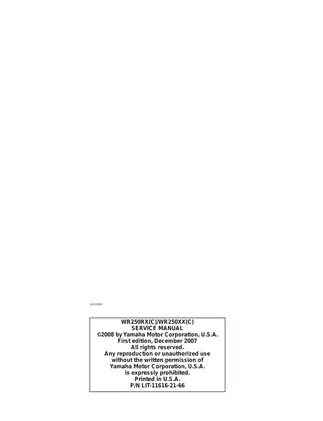

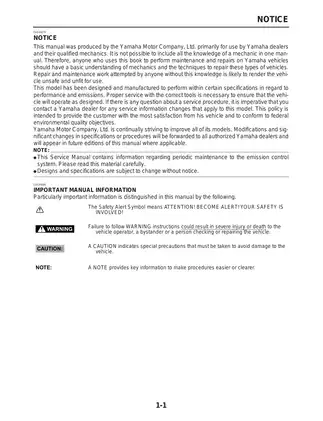

The service manual identifies WR250R models 32C1 (U49) and 32C3 (California) and WR250X models 32C2 (U49) and 32C4 (California). It is the first edition dated December 2007. Yamaha states that this publication was produced primarily for its dealers and qualified mechanics, and it assumes basic mechanical knowledge and established motorcycle-repair techniques; the companion Owner's Manuals cover operator-level inspection and maintenance.

The R and X versions are not treated as one generic chassis specification. Factory data separates their wheel and tire combinations, front brake hardware, secondary reduction ratios, steering geometry, rear-suspension settings, drive-chain adjustment data, and several dimensions. U49 and California configurations are identified where fuel capacity and evaporative-emissions equipment differ, helping the reader select the correct parts and specifications before repair work begins.

Engine, Chassis, and FI Repair Depth

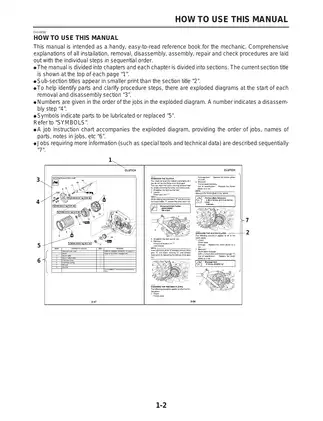

Removal and disassembly sections open with exploded assembly views, numbered job charts, replacement and lubrication symbols, tightening references, and linked inspection procedures. The engine material reaches case splitting, crankshaft installation, transmission inspection, valve-seat work, cam timing, and final assembly rather than stopping at routine tune-up. The chassis chapter follows the same format for wheel bearings, brake hydraulics, fork internals, steering bearings, suspension linkage, and drive components.

Electrical diagnosis is organized by system instead of being limited to a single schematic. The fuel-injection chapter explains stored fault codes, substitute operating characteristics, meter-based diagnostic mode, sensor monitoring, actuator operation, fault-history handling, and component-by-component fault isolation. Separate troubleshooting covers starting failures, incorrect idle, poor midrange or high-speed performance, shifting and clutch faults, overheating, braking problems, fork trouble, unstable handling, and lighting or signaling failures.

Specifications, Diagrams, and Yamaha Tools

The specification chapter groups general, engine, chassis, and electrical data with component-specific tightening tables. It also contains lubrication points, a lubrication-system chart, cooling-system diagrams, connector locations, and routing drawings for the harnesses, control cables, fuel and coolant hoses, and both brake hoses.

The special-tool pages identify both 90890-series numbers and the corresponding U.S./Canada tool numbers. Notable examples include the YU-01135-B crankcase separator, YM-01442 fork-seal driver, YM-03176 fuel-pressure adapter, YU-24460-01 radiator-pressure tester, and YU-A1927 digital circuit tester. Those references make the manual useful for planning a repair before the motorcycle is disassembled.

WR250-Specific Service Cautions

The valve chapter flags an easy-to-miss material issue: the intake valves are titanium, and valves used during seat lapping must not be returned to service. The camshaft section also warns that moving the crankshaft during cam installation can cause damage or incorrect valve timing, while electrical connector testing is illustrated to prevent loosened terminals and damaged leads.

Residual fuel can remain in the injection plumbing after the tank is drained, and the rear shock contains high-pressure nitrogen. Follow the publication's precautions for fuel, brake fluid, hot coolant, electrical testing, and shock handling rather than treating these systems as routine removal work.

Separate R and X Owner's Manuals

The June 2009 first-edition Owner's Manuals are model-specific: WR25RZ(C) for the R publication and WR25XZ(C) for the X publication. They add controls and instrument operation, pre-operation checks, starting and shifting guidance, maintenance schedules, routine oil/filter and coolant service, air-filter and spark-arrester care, suspension adjustments, wheel removal, basic troubleshooting charts, specifications, and U.S. consumer and warranty information. They support day-to-day ownership but do not replace the deeper service-manual procedures for internal engine, brake, suspension, fuel-injection, or electrical repair.
