1996-2004 Volvo S40 & V40 - Comprehensive Workshop Diagnostics & Repair
Manual Preview

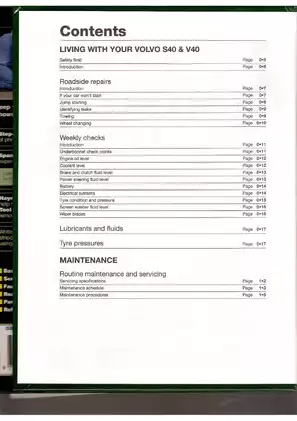

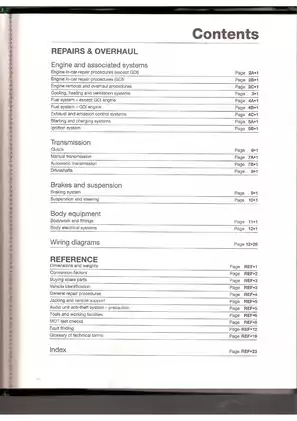

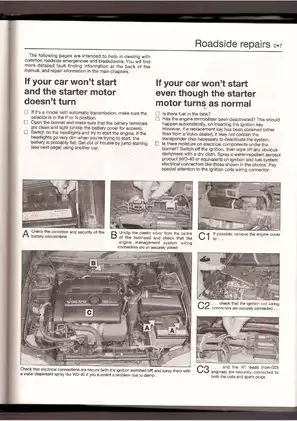

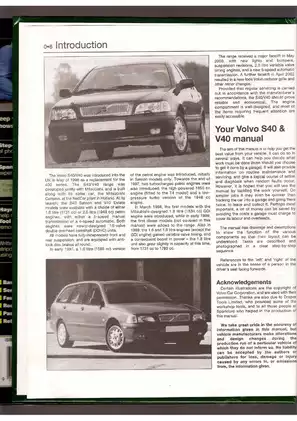

Sample pages from the 1996-2004 Volvo S40 & V40 - Comprehensive Workshop Diagnostics & Repair manual
Purchase & Download
Models Covered & Key Technical Specifications
- Volvo S40 (1996-2004)
- Volvo V40 (1996-2004)
Professional Workshop Service Manual & Technical Specifications
Volvo S40 & V40 Petrol Reference Manual (1996 to Mar 2004, “N” registration onwards)
Fit check for the exact S/V40 scope
Coverage is clearly labeled for Volvo S40 and V40 petrol models from 1996 up to March 2004, with the registration boundary noted as “N registration onwards.” Engine-family splits appear in the contents (including a dedicated 1.8 GDI fuel-system section), helping you align the book to the correct petrol variant set.
What you can confirm at a glance
Haynes manual number: 3569
Vehicle range: Volvo S40 & Volvo V40
Fuel type scope: Petrol (diesel not indicated in this edition)
Year gate: 1996 to Mar 2004 (N registration onwards)
Dedicated system splits: Fuel system (except GDI) vs Fuel system (GDI)
Wiring diagrams section: pages 12–26 (as listed in contents)
Quick scan markers from the contents pages
Manual no. 3569
S40 & V40 petrol: 1996–Mar 2004 (“N” reg onwards)
Fuel system sections: “except GDI engine” + “GDI engine”
Engine & associated systems: in-car and complete overhaul coverage blocks
Transmission coverage: clutch, manual transmission, automatic transmission, driveshafts
Reference block includes: vehicle identification, dimensions/weights, torque spec section, fault finding index
Spec snapshots (service data examples)
| Spec item | Engine/area | Value |
|---|---|---|
| Fuel tank capacity | Petrol models | 60 litres |
| Coolant capacity | Cooling system | 8.3 litres |
| Engine oil capacity | 1.9 turbo models | 5.7 litres |
| Engine oil capacity | 1.8 GDI models | 5.0 litres |
| Brake pad minimum thickness | Front/Rear | 2.0 mm |
Section layout that helps you navigate by subsystem
The chapter map is grouped into “Repairs & Overhaul” for engine and supporting systems (cooling/heating/ventilation, fuel delivery, exhaust/emissions, ignition/charging, starting), followed by transmission (clutch/manual/automatic/driveshafts), then brakes & suspension and body systems. A separate reference area lists dimensions/weights, torque references, vehicle identification, and glossary/index pages for quick cross-checking.
Boundaries and variant cues worth noting
The printed scope is petrol-only for S40/V40 in the stated year window, and the contents explicitly call out a separate path for GDI vs non-GDI fuel-system coverage. If your car falls outside the 1996–Mar 2004 bracket or uses a diesel powertrain, that’s the earliest mismatch signal based on the cover and contents labeling.
