2000 Arctic Cat 250cc, 300cc, 400cc, and 500cc ATV Service Manual (P/N 2256-223)

• Coverage and document ID: Arctic Cat service manual P/N 2256-223, supplied as a 333-page PDF, for 2000 250 2x4, 300 2x4/4x4, 400 2x4/4x4, and 500 4x4 models with the manual clutch and geared transmission. The 500 Automatic requires the separate supplement P/N 2256-254, which is not included here.
• Engine and transmission repair: Separates 250/300 cc and 400/500 cc procedures for power-unit removal and installation, top-end service, left- and right-side components, clutch inspection, crankcase separation, and internal transmission repair.
• Fuel, lubrication, and cooling work: Covers carburetor removal through reassembly, oil-flow and pump-pressure diagnosis, the 250/300 cc oil cooler, and the radiator, fan, thermostat, and water pump used on 400/500 cc models.
• Electrical fault tracing: Provides component tests for charging, ignition, starting, switches, indicators, relays, CDI units, and regulator/rectifiers, backed by model-specific wiring diagrams and electrical test specifications.
• Drive, steering, suspension, and brakes: Details front differential and drive-axle service, 400/500 cc rear-drive repair, wheel hubs, hydraulic calipers and bleeding, shocks, A-arms, tie rods, knuckles, and toe adjustment.

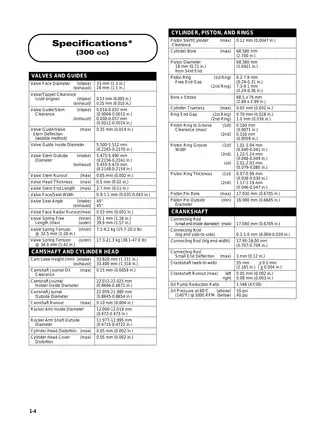

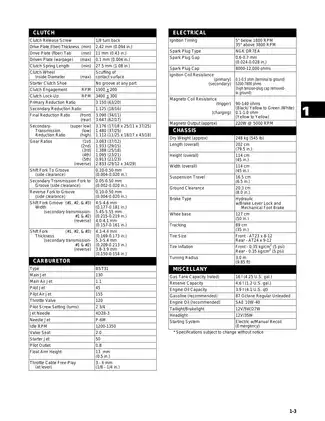

• Factory reference data: Includes a periodic maintenance chart, separate specification tables for all four displacements, component torque tables, fluid and lubrication data, wear limits, adjustment data, and condition/remedy troubleshooting charts.

This Arctic Cat factory manual moves from scheduled service through complete powertrain teardown, chassis and drive repair, component-level electrical diagnosis, and systematic troubleshooting. Its crankcase, differential, press, dial-indicator, and multimeter work makes it best suited to professional technicians or experienced owners with the tools and shop equipment required for major repairs.

Model-Specific Repair Depth

Separate procedure paths keep the major designs from being mixed. The 250/300 cc powertrain material covers the recoil starter, magneto rotor, starter clutch, clutch pack, shift forks, secondary gears, crankshaft, driveshaft, and countershaft. The 400/500 cc chapters add their own cam-chain, water-pump, driven-gear, and crankcase details, while 400 cc 2x4 left-side work is separated from the 400 cc 4x4/500 cc arrangement.

Inspection coverage reaches valve stems and guides, piston and cylinder condition, camshaft and crankshaft runout, clutch-plate wear and warpage, shift-fork clearances, and bevel-gear backlash and tooth-contact patterns. The specification sections also distinguish primary, secondary, and final reduction data, individual transmission ratios, valve-clearance settings, ignition tests, capacities, and approved lubricants by engine family.

Routine service is equally model-aware. The maintenance section covers valve/tappet checks by feeler gauge or factory adjuster, compression testing, clutch and reverse-shift adjustment, brake inspection and bleeding, pad burnishing, ignition timing, fluid service, and cooling-system checks. Fuel-system repair addresses the BST carburetors, tank, valve, and hoses, with setup data kept in the displacement-specific tables.

Diagnostics and Factory Tool References

Electrical diagnosis is organized by component. The manual provides tests for the foot and handlebar brakelight switches, 300 cc oil-temperature switch, 400/500 cc fan motor, gear-position circuits, ignition coil and magneto, starter motor and relay, CDI, regulator/rectifier, neutral-start relay, lighting, and ignition timing. Troubleshooting tables then map engine, drive, fuel, electrical, steering/suspension, and brake symptoms to likely conditions and remedies.

Factory tool callouts show what the repair work expects. Examples include Valve Gap Adjuster P/N 0444-092 for 250/300 cc engines, Valve Clearance Adjuster P/N 0444-078 for 400/500 cc engines, Side Case Puller P/N 0644-262, Crankcase Separator/Crankshaft Remover P/N 0444-009, Oil Pressure Gauge P/N 0444-039, and Fluke Model 73 Multimeter P/N 0644-191.

Diagrams and Shop Cautions

Named visual references include the 300 cc 4x4 Wiring Diagram, 400/500 cc Wiring Diagram, 250/300 cc Oil Flow Chart, 300 cc 4x4 Front Lock Assembly, 400/500 cc Rear Drive Assembly, and Hydraulic Brake Assembly Schematics. More than 100 service photographs, exploded assemblies, and model-specific component illustrations support part identification during repair.

The cautions are tied to real failure points. Incorrect placement of the cam-sprocket tab washer can allow the alignment pin to escape and cause severe engine damage; forcing a cylinder into place can damage the piston, rings, cylinder, or crankshaft assembly. Secure the ATV on an appropriate support before wheel, drive, suspension, or brake work, and follow the manual's fuel, battery, cooling-fan, and brake-fluid warnings during service.
