Suzuki LT-Z400 QuadSport 2009–2014 Service & Owner's Manual Set (P/N 99500-43080-03E)
632 Pages • ZIP Download: 2 Printable PDFs • 31.14 MB
Suzuki Models Covered & Key Technical Specifications
Model & Model Codes: LT-Z400 QuadSport (LT-Z400K9: E-19 [E.U.], E-28 [Canada], E-33 [U.S.A.])
Model Years: 2009–2014 (2009, 2010, 2011, 2012, 2013, 2014)
Effective Frame No.: JSAAK4AA92 100001–
-
Engine displacement: 398 cc, 90 mm bore diameter
-
Spark plug gap: 0.7–0.8 mm
-
Wheel nut torque: 66 N·m
-
Rear axle housing bolt and chain adjuster torque: 100 N·m (housing bolts), 30 N·m (chain adjuster nut)
-
Transmission: 5-speed manual with reverse
-
Brake fluid: DOT4
-
Coolant capacity: 1200 ml (total 50:50 mixture, Owner's Manual) / 900 ml engine side and 250 ml reservoir side (Factory Service Manual)
-
Load capacity: 110 kg
Suzuki Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Suzuki Factory Service Manual for LT-Z400K9 (E-19 E.U., E-28 Canada, E-33 U.S.A.), P/N 99500-43080-03E, March 2008 | 492 |

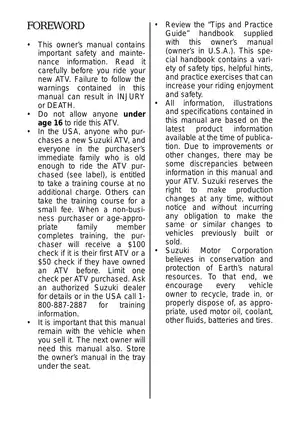

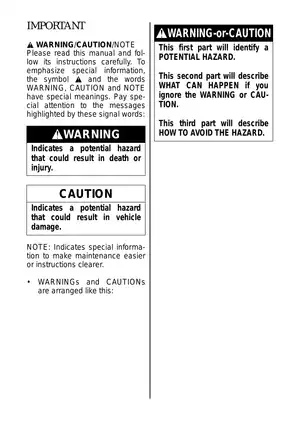

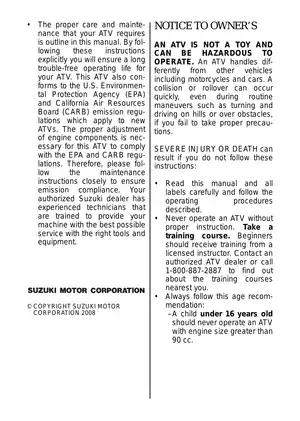

| Suzuki Owner's Manual for LT-Z400, K9 edition, P/N 99011-33H50-03A, February 2008 | 140 |
The owner's manual covers ATV setup, pre-ride checks, and routine maintenance. The factory service manual provides the tests, inspection limits, and repair procedures used in the workshop.
Model coverage is limited to the 2009 K9 configuration. The factory service manual lists an effective frame number of JSAAK4AA92 100001– for all three markets.
PDF Search, Bookmarks, and Page Count
Finding procedures and wiring details. Both PDFs support text search. The service manual has embedded chapter and procedure bookmarks, while the owner's manual has an unlinked table of contents and index. Zoom in to read the smallest connector pin numbers and wire color codes in the service manual.

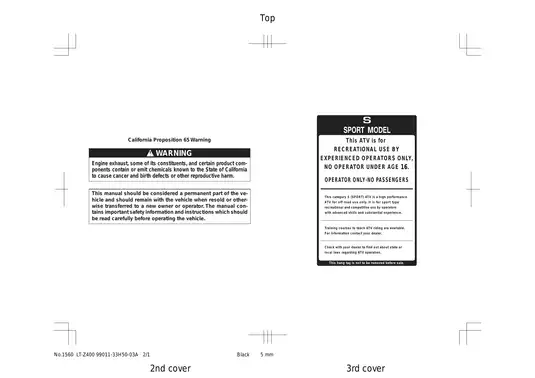

The ZIP contains two printable PDFs totaling 632 pages. That count includes the owner's manual's four cover pages and nine blank or divider pages, plus the service manual's publication page and nine blank or header-only pages.
Fuel Injection, Chassis Repair, and ATV Operation
Along with the selected procedures below, the manuals cover headlight beam adjustment and air cleaner drain tube service.
- Fuel injection diagnosis: Suzuki Diagnostic System (SDS) checks and resets, diagnostic trouble code (DTC) and fail-safe tables, ECM circuit tests, fuel pressure inspection, and throttle body service.
- Engine overhaul: Step-by-step engine removal and installation, cylinder head disassembly, crankcase separation, and oil pump and water pump service.
- Ignition, starting, and charging: Ignition coil tests, starter motor and starter clutch service, and generator and regulator/rectifier testing.
- Transmission and rear driveline: Gear and shift linkage inspection, reverse lock cable adjustment, wet multi-plate clutch removal and installation, chain cutting and joining, sprocket replacement, and rear axle housing bearing and seal service.
- Suspension, wheels, and steering: Wishbone, wheel hub, and steering knuckle service, rear shock removal and adjustment, cushion linkage and swingarm bearing work, wheel and tire service, and steering shaft and toe-out adjustment.
- Hydraulic and parking brakes: Master cylinder and caliper disassembly, disc inspection, hose routing, brake bleeding, and parking brake adjustment.
- Rider setup and operation: Throttle limiter and suspension settings, the inspection schedule, and guidance on hills, obstacles, water crossings, and cold-weather riding.
The factory service manual is written for technicians with the necessary skills, equipment, and Suzuki special tools. Have a qualified technician handle brake, fuel-system, internal-engine, or electrical repairs when the required tools or experience are unavailable.
ECM Fault Tracing and Engine Inspection
The DTC procedures cover crankshaft position, throttle position, coolant temperature, intake air pressure and temperature, tip-over, ignition, gear position, the injector, and the fuel pump and cooling fan relays. For a throttle-position fault, the test chart and ECM connector layout help distinguish a sensor adjustment problem from a wiring fault before parts are replaced.
The liquid-cooled DOHC single-cylinder engine uses dry-sump lubrication. Internal engine procedures include valve guide replacement, valve seat repair, cam chain service, piston and ring checks, crankshaft and balancer inspection, and bearing replacement. Separate exhaust instructions cover spark arrester cleaning.
Wiring, Routing, and Workshop References
The FI System Wiring Diagram and ECM terminal layout complement the full Wiring Diagram and harness routing pages. Other references include the Engine Lubrication System Chart, cooling circuit and water hose routing diagrams, front and rear brake hose routing diagrams, and the Transmission Construction view. Exploded views cover engine, suspension, rear axle, brake, transmission, clutch, steering, lighting, and body assemblies.
Service tables give component torque, fluid and lubricant requirements, clearances, wear limits, electrical test values, and approved service materials. Symptom charts cover the engine, suspension, driveline, brakes, transmission, clutch, and steering. Tool references include the SDS set 09904-41010, crankshaft installer 09910-32812 with attachment 09911-11310, chain cutting and joining tool 09922-22711, rear axle nut wrench set 09940-92460, and bearing installer set 09913-70210.
Driving the crankshaft into the crankcase with a mallet can affect its alignment. Unsuitable solvents or lubricants can damage the sealed drive chain's O-rings.
Owner Maintenance and Riding
The owner's manual covers fuel, oil, and coolant selection, control use, and clutch, throttle, and choke cable adjustments. Routine service includes the air cleaner, spark plug, engine oil and filter, chain, coolant, brakes, tires, wheel hardware, lights, fuse, and lubrication points.
Riding topics include protective gear, starting and shifting, turning, braking, skidding, traversing slopes, snow riding, and reversing. The manual also covers loading, transport, washing, winter storage, and return to service. Suzuki identifies this Category S sport ATV as a single-rider model for experienced operators age 16 and older.
Sample Valve Clearance and Fuel Pressure Specs
For the K9 engine's shim selection procedure, the cold valve clearance is 0.10–0.20 mm on the intake side and 0.20–0.30 mm on the exhaust side.
The K9 fuel injection pressure check specifies approximately 294 kPa with the ignition on. The fuel-system section uses the pressure reading to guide checks of the fuel hose, fuel valve, and pump.
