Kawasaki Z750T / 750 Turbo 1983–1985 OEM Service Manual (P/N 99924-1049–51)

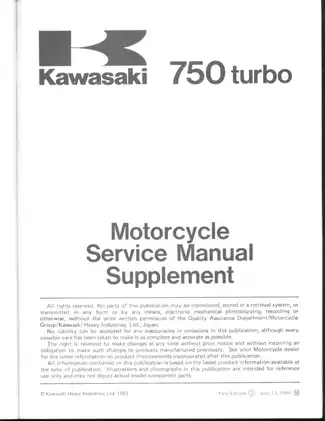

• Publication and coverage: 107-page PDF of the Kawasaki 750 Turbo Motorcycle Service Manual Supplement, P/N 99924-1049-51, First Edition July 1984, for the 1984 ZX750-E1 beginning with frame number ZX750E-000001 or 17-character frame-number format JKAZXDE1*EB500001 (the asterisk marks the variable digit).
• Turbo and oil-system work: Covers the engine oil-flow circuit, turbocharger feed and return routing, scavenging oil pump, actuator and turbine-wheel inspection, plus turbocharger and muffler removal and installation.
• DFI diagnosis and fuel-system repair: Provides self-diagnosis trouble codes, control-unit and relay tests, sensor-signal checks, injector and fuel-pump testing, pressure-regulator diagnosis, throttle-sensor positioning, and fuel-system removal/installation procedures.
• Engine, maintenance, and chassis coverage: Details valve-clearance inspection and shim selection, throttle-body vacuum synchronization, clutch and top-end inspection, brake hydraulic component checks, front-fork setup and oil-service information, drive-chain care, and related torque, wear-limit, clearance, pressure, and electrical specifications.
• Electrical and diagram support: Includes region-specific ZX750E wiring diagrams, the DFI system wiring diagram, model-specific test circuits, connector and wire-color references, ignition timing/speed information, and LCD fuel gauge and warner-unit troubleshooting.
• Important scope note: This is the turbo-specific supplement, not the KZ750 Four base service manual. It is designed for use with P/N 99924-1021-04; 750 Turbo service data and model-specific procedures are contained here, while many common KZ750 repair operations are referenced to the base manual.

What This Supplement Adds

Most routine KZ750 procedures were not reprinted. Kawasaki concentrated this publication on the ZX750-E1's differences: turbo lubrication and scavenging, pressurized intake plumbing, Digital Fuel Injection, model-specific fuel delivery, and unique electrical and instrument functions. The foreword states that all 750 Turbo service data is here, but complete repair coverage still requires the base manual. That matters for engine teardown, transmission work, and other jobs that refer back to standard KZ750 procedures.

Turbocharger, Lubrication, and Engine Work

The engine section maps oil flow through the pump, cooler, filter, main galleries, crankshaft, camshafts, and transmission, then shows the added turbo feed and scavenging return path in dedicated flow and section views. The procedures cover actuator checks, turbine-wheel condition and runout inspection, oil-pump and scavenging-pump inspection, intake air-leak checks, surge-tank and air-cleaner-housing service, turbocharger and muffler removal/installation, and ZX750E-specific camshaft-timing information.

Turbo coverage is unit-level: external inspection, lubrication, actuator testing, and assembly removal/installation rather than an internal turbocharger overhaul. For broader engine repair, the supplement supplies the E-model exceptions and service data for the cylinder head, valves, camshafts, pistons, crankshaft, primary reduction, and clutch. Standard dimensions, service limits, torque and locking-agent tables, lubrication data, and inspection criteria are grouped in the service-data and torque sections.

DFI, Fuel-System, and Electrical Diagnosis

The DFI section is built around diagnosis. It begins with the 1984 control-unit LED self-diagnosis and fail-safe code table, then works through quick checks and individual test circuits. Named tests cover control-unit power supply, main relay, fuel-pump supply, pump relay, injector wiring and battery signal, throttle opening angle, engine speed, air temperature, engine temperature, starter input, and boost signal. Separate procedures address the throttle sensor, injectors, fuel pump, pressure regulator, fuel-pressure checks for running and no-start conditions, warning function, harness connectors, and intake-air integrity.

Model-specific removal and installation notes cover the tank and fuel-level sensor, filter, throttle-valve and injector assembly, fuel-distributing pipe, pump and regulator, DFI control unit and sensors, harness and relays, surge tank, and air-cleaner housing.

The throttle-sensor inspection and adjustment chart requires idle speed and vacuum synchronization to be checked before the sensor is moved. Factory tools identified by number include the Throttle Sensor Positioning Checker 57001-1003, Adapter 57001-1089, Balance Adjuster 57001-351, and Pressure Gauge 57001-125. The electrical chapter also adds ignition timing/engine-speed information and troubleshooting for the LCD Fuel Gauge and Warner Unit, including the side-stand, oil-pressure, battery-electrolyte, fuel-level, and DFI warning circuits.

Maintenance, Diagrams, and Repair Cautions

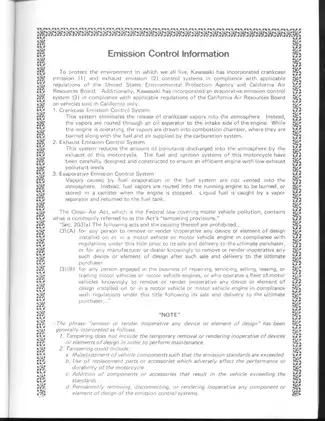

Scheduled maintenance covers oil and filter service, valve-clearance inspection and shim selection, air-cleaner service, idle adjustment, four-cylinder vacuum synchronization, drive-chain and wheel checks, front-fork setup and oil-change information, fuel-system inspection, fastener checks, and the California evaporative-emission system.

Useful visual references include the regional ZX750E Wiring Diagrams for US/Canada and other markets, the DFI System Wiring Diagram, the Engine Oil Flow Chart, turbocharger lubrication section views, injector and control-unit signal-test circuits, and the throttle-sensor adjustment flowchart. Exploded assembly drawings and routing views support fuel-injector, throttle-valve, fuel-distributing-pipe, pressure-regulator, surge-tank, turbocharger/muffler, and brake hydraulic work.

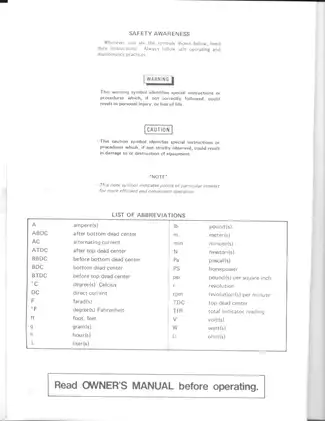

Several cautions address failure modes that are easy to create during repair. Disconnecting DFI wiring with the ignition on, or exposing the system to charging-voltage spikes, can damage the control unit. Carrying the turbocharger by its actuator rod can bend the linkage; installing the oil screen backward can compromise lubrication, and grease on the intake-pipe seals can let a connection disengage. The scavenging oil pump is indexed to its drive shaft; forcing it together out of alignment can damage the drive and interrupt oil return.

Fuel hoses may remain under pressure, and the pump can discharge fuel from an open line when the ignition is switched on. Use proper ventilation and fire protection, isolate electrical power, and leave turbocharger, fuel-injection, brake, or internal-engine repair to a qualified technician when the tools or experience are not available.
