Polaris Models Covered & Key Technical Specifications

Model: Outlaw 525 IRS (ES51KLE engine, 5-speed manual transmission)

Model Year: 2008


  • Battery voltage (fully charged): 12.8 volts or higher

  • Alternator output: 200 w @ 3000 RPM

  • Wheelbase: 51 in.

  • Wheel nut torque: 30–35 ft. lbs.

  • Throttle lever freeplay: 1/16" to 1/8"

Polaris Manual Features & Selected Content Preview

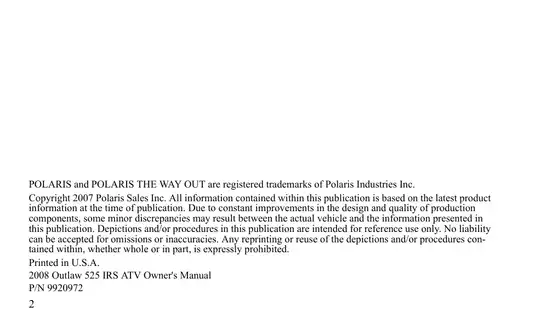

The 2008 Polaris Outlaw 525 IRS Owner's Manual for Maintenance and Safety covers operation, routine maintenance, and troubleshooting for the Category S sport ATV. This edition is P/N 9920972, Revision 01, copyright 2007 Polaris Sales Inc.

Searchable Manual and Included Pages

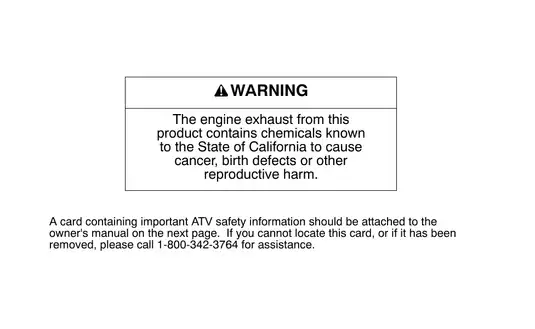

Text search and navigation: The numbered pages and the unnumbered safety notice have searchable text. The two covers are image pages. The table of contents and index provide page references, and the file has no embedded bookmarks.

The download is one printable English PDF with 220 pages, including 217 numbered pages, the front and back covers, and one unnumbered safety notice. The numbered pages include the four-page maintenance log.


ATV Operation, Maintenance, and Troubleshooting

The topics below are selected examples from the manual. Other sections cover preparing the ATV for storage and securing it for transport.

  • Riding and controls: Pre-ride inspection, engine break-in, manual shifting, reverse lock-out, and guidance for hills, slippery surfaces, and water crossings.
  • Engine lubrication: Oil changes, dual oil filter replacement, long and short oil screen cleaning, and related fastener torque specifications.
  • Fuel and cooling: Carburetor idle adjustment, float-bowl draining, jetting references for altitude and temperature, coolant-level checks, and cooling-system bleeding.
  • Clutch and brakes: Hydraulic clutch bleeding, clutch lever adjustment, brake-fluid checks, and inspection of pads, discs, and leaks.
  • Steering and suspension: Drive chain tension, toe alignment checks, front and rear sag measurements, spring preload, and rear compression damping.
  • Electrical maintenance: Sealed-battery charging, spark plug inspection, headlight service, and brake light switch adjustment.
  • Troubleshooting: Charts for starting trouble, misfires, overheating, power loss, and excessive oil consumption.

This manual is for owners performing routine checks and minor maintenance. Polaris directs major work, including internal engine and transmission repairs, to a Factory Certified Master Service Dealer technician using the separate Polaris Service Manual.

Break-In and Maintenance Planning

Break-in guidance includes engine-speed limits. The pre-ride checklist covers brake operation, clutch controls, and tire pressure. The riding guidance also covers protective gear and how to use the reverse lock-out.

The maintenance chart organizes service by operating hours, calendar time, and fuel consumed, with guidance for severe use. Valve-clearance checks and annual cooling-system pressure testing appear as maintenance items. The cooling chapter explains the recovery system and provides a bleeding procedure.

Oil Service, Cooling, and Carburetor Setup

The oil-change section identifies the two filters and screens and illustrates how the long oil screen seats. It explains that incorrect screen placement increases engine wear and that leaving the system drained too long can cause the oil pump to lose its prime.

The jetting chart for the Keihin FCR-MX 39 mm carburetor pairs main jets and needle clip positions with altitude and ambient temperature. The manual covers idle adjustment and float-bowl draining and directs altitude-related modifications to a trained dealer. Air-filter cleaning and spark arrestor clean-out are also covered.

Clutch, Alignment, and Suspension

The illustrated clutch-bleeding procedure specifies a bleeder syringe and KTM Hydraulic Clutch Oil. The brake system uses DOT 4 brake fluid.

The toe-alignment illustrations show how to check alignment. Polaris assigns tie-rod adjustment to an authorized dealer. Camber and caster are fixed. The independent rear suspension section illustrates the compression-damping clicker and gives its factory setting. Rear axle boot inspection and boot burping are also covered.

Follow the manual's precautions for hot coolant and exhaust components and for supporting the ATV during wheel or suspension work.

Electrical Checks and Engine Symptoms

The battery section includes a voltage and state-of-charge chart. Separate troubleshooting charts for an engine that will not crank and one that cranks but will not start help owners narrow the initial checks. Other charts cover lean or rich running, Electronic Throttle Control faults, power loss, and overheating.

Selected Sag and Toe Specifications

For the Outlaw 525 IRS, the front sag target is 3.75–4 in. and the rear target is 4–4.25 in. Both ranges refer to the difference between full extension and the measurement with the rider seated. The manual uses each range to guide spring preload checks.

The front alignment check specifies 0–1/16 in. of toe-out, measured at the front and rear of the front rim.
