2009 Polaris Outlaw 450 & 525 Service Manual

Expert database for Polaris Outlaw 450, 525, and 525 IRS models. Sourcebook for specialized maintenance procedures and functional diagnostic data. Registry for part numbers and system parameters. Dossier.

4.6starstarstarstarstar_half(5)
visibility Preview Available
Polaris 2009 Polaris Outlaw 450 & 525 Service Manual manual page preview - page 1 of 273

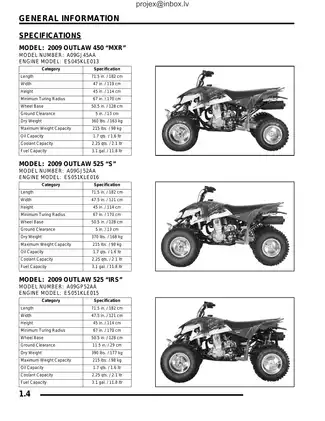

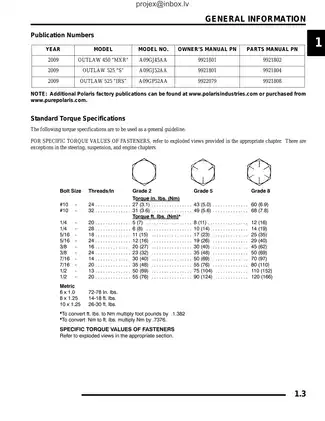

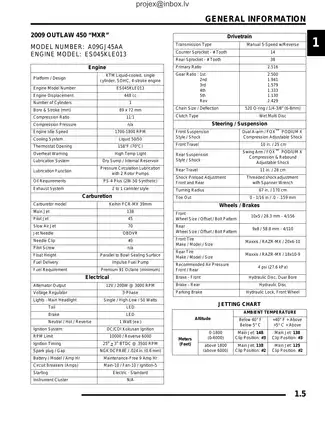

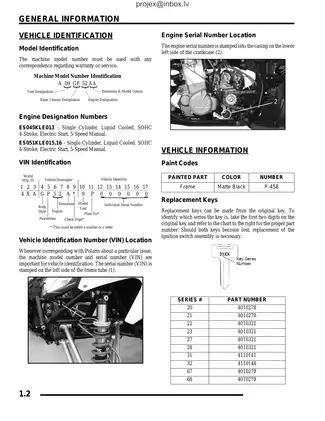

Sample pages from the 2009 Polaris Outlaw 450 & 525 Service Manual manual

Polaris 2009 Polaris Outlaw 450 & 525 Service Manual manual preview page 4 - thumbnail
Polaris 2009 Polaris Outlaw 450 & 525 Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$17.80 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Polaris Models Covered & Key Technical Specifications

Models: 2009 Polaris Outlaw 450 MXR, 2009 Polaris Outlaw 525 S, 2009 Polaris Outlaw 525 IRS
Sub-models / Variants: MXR, S, IRS, 4-stroke, 5-speed manual, Liquid Cooled
Build Years: 2009
Technical Data:

  • Engine displacement: 448 cc (Outlaw 450 MXR), 510 cc (Outlaw 525 S/IRS)
  • Engine type: Single cylinder, Liquid cooled, SOHC 4-stroke
  • Fuel type: Premium 91 Octane (minimum)
  • Drive system: Manual 5-Speed with Reverse, Chain drive
  • Oil capacity: 1.7 quarts / 1.6 liters
  • Coolant capacity: 2.25 quarts / 2.1 liters
  • Fuel capacity: 3.1 gallons / 11.8 liters
  • Standard tire pressure: 4 psi
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
31951 / Jennifer Brown
File Size:
16.44 MB
File Type:
PDF
Language:
English
Pages:
273
Printable:
Yes
Category:
ATV
Last updated / verified
Sep 23, 2025

Polaris Manual Features & Content Preview

2009 Polaris Outlaw 450 & 525 Service Documentation

  • Covers 2009 Polaris Outlaw 450 MXR, 525 S, and 525 IRS models featuring KTM-derived single-cylinder liquid-cooled 4-stroke engines
  • Third-party publication (Improved Manuals, [email protected])
  • Contains 51 technical reference tables, 17 exploded-view diagrams, and comprehensive jetting charts for varied altitudes and temperatures
  • Downloads to your account within seconds of checkout
  • Your order stays downloadable from your account for life
  • Indexed PDF search covers every chapter and appendix
  • Laid out for standard letter and A4 printing
  • This service reference provides the factory-recommended maintenance intervals, torque specifications, and engine identification data for the 450 and 525 series chassis and engine components

Engine and Maintenance Overview

This factory-authorized reference documents the service parameters for the 2009 Polaris Outlaw lineup. The contents include detailed maintenance schedules keyed to operating hours and conditions, covering critical system inspections, fluid service, and lubrication. The documentation transitions through system-specific chapters, detailing frame inspection, fuel system management, liquid cooling system maintenance, and final drive component servicing. It provides technical guidance for performing periodic maintenance tasks on the engine, cooling system, and chassis, ensuring the equipment remains in operational alignment with factory specifications.

Specification Highlights

Engine mounting torque values are documented for the 450 and 525 chassis, including swing arm pivot bolts at 85–105 ft. lbs. (115–142 Nm). The cooling system maintains a relief pressure of 20 psi. Spark plug torque is specified at 14 ft. lbs. (19 Nm) for the NGK DCPR8E plugs. The manual documents cooling system capacity at 2.25 quarts. It lists the dry weight of the Outlaw 450 MXR at 360 lbs. Reference understanding parts documentation for vintage Moto Guzzi to see how technical sections are organized.

This 273-page service manual provides technicians and owners with the technical specifications, diagrams, and inspection routines required for the 2009 Polaris Outlaw 450 MXR, 525 S, and 525 IRS liquid-cooled ATV models.

Document Reference: Third-party: Improved Manuals ([email protected]) — original OEM identity not confirmed
