2008 Polaris Outlaw 450 MXR / 525 S / 525 IRS ATV Service Manual (P/N 9920975)
271 Pages • Printable PDF • 18.21 MB • Download

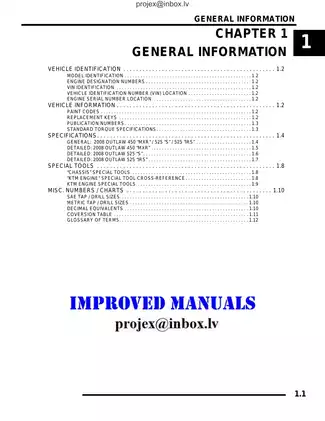

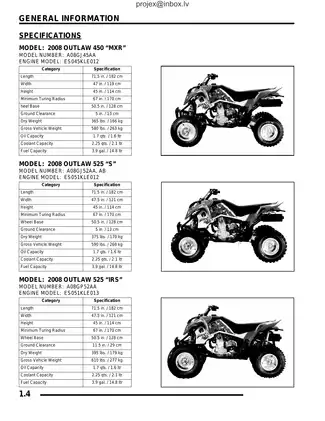

Polaris Models Covered & Key Technical Specifications

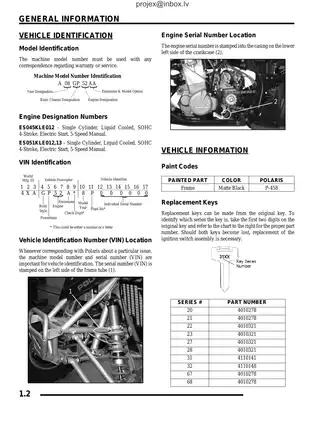

Models & Model Codes: Outlaw 450 MXR (A08GJ45AA), Outlaw 525 S (A08GJ52AA, A08GJ52AB), Outlaw 525 IRS (A08GP52AA)
Sub-models / Variants: MXR, S, IRS
Model Year: 2008
-

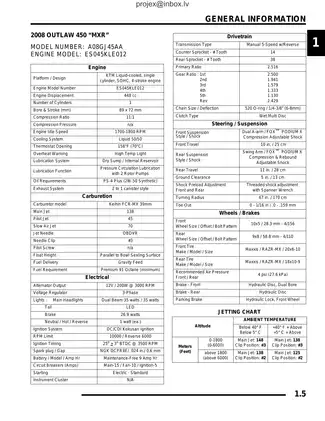

Engine displacement: 448 cc (Outlaw 450 MXR), 510 cc (Outlaw 525 S, Outlaw 525 IRS)
-
Engine type: KTM Liquid-cooled, single cylinder, SOHC, 4-stroke
-
Engine models: ES045KLE012 (Outlaw 450 MXR), ES051KLE012 (Outlaw 525 S), ES051KLE013 (Outlaw 525 IRS)
-
Compression ratio: 11:1
-
Transmission: Manual 5-Speed w/Reverse
-
Coolant capacity: 2.25 qts. / 2.1 ltr
-
Oil capacity: 1.7 qts. / 1.6 ltr
-
Fuel capacity: 3.9 gal. / 14.8 ltr
-
Alternator output: 200W @ 3000 RPM
-
Spark plug: NGK DCPR8E
-
Spark plug gap: 0.6 mm (.024 in.)
-

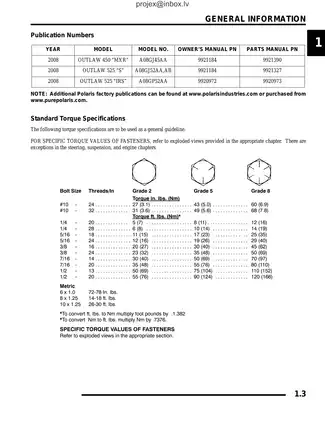

Engine oil drain plug torque: 15 ft. lbs. (20 Nm)
-
Overall length: 71.5 in. (182 cm)
Polaris Manual Features & Selected Content Preview
This Polaris service manual, P/N 9920975, covers the 2008 Outlaw 450 MXR, Outlaw 525 S, and Outlaw 525 IRS. Its integrated KTM engine/carburetion section includes internal engine and transmission repair procedures. Owner’s manuals and parts catalogs are separate publications and are not included.
-
Engine and transmission: Engine removal, crankcase separation, cylinder-head service, cam-chain installation, wet-clutch inspection, and transmission shaft disassembly and reassembly.
-
Fuel system: Keihin FCR-MX carburetor overhaul, model-specific jetting charts, accelerator-pump adjustment, and throttle-position sensor testing and adjustment.
-
Chassis and final drive: Steering, wheel-bearing, and A-arm service, plus separate procedures for solid rear axles and IRS rear housings and CV joints.
-
Shock service: FOX Podium, FOX Podium X, and RydeFX disassembly and rebuilding, with valving information, suspension setup, and damping adjustments.
-
Hydraulic brakes: Front and rear caliper service, master-cylinder repair, fluid replacement, bleeding, disc inspection, and brake troubleshooting.
-
Electrical diagnosis: DC/CDI ignition tests, charging-system checks, starter-motor overhaul, diagnostic flowcharts, and model-specific wiring diagrams with wire-termination tables.
This manual is suited to technicians experienced in ATV engine and chassis repair, with the special tools and measuring equipment required for engine overhaul and gas-shock service.
Engine, Transmission, and Clutch Service
The maintenance section sets out intervals for oil and filter changes, valve checks, and drive-chain adjustment. Engine removal instructions distinguish components accessible in the frame from crankshaft, balancer-shaft, and transmission work that requires engine removal.
Internal service extends to crankshaft and transmission-shaft endplay measurements, piston-to-cylinder clearance, valve-guide replacement, and cam-chain riveting. Tool references include crankshaft locking tool PA-48677 and cam-chain riveting tool PA-48686.
The lubrication instructions warn that an incorrectly installed long oil screen can lose its function and cause increased engine wear. Hydraulic clutch bleeding is covered using bleeder PA-48674, with an explicit warning against substituting brake fluid for the specified clutch oil.
Carburetor Tuning and Cooling-System Tests
Keihin FCR-MX 39 mm carburetor coverage combines altitude- and temperature-specific jetting charts with inspections of the needle, throttle slide, float valve, and accelerator pump. The throttle-position sensor section includes resistance checks and position adjustment.
The Cooling System Flow Chart accompanies pressure-testing and bleeding procedures. Separate radiator-cap testing and fan-control checks support investigation of overheating complaints.
Solid-Axle and IRS Chassis Repairs
The MXR and S procedures cover swing-arm removal, rear-axle disassembly, and axle runout inspection. IRS coverage addresses rear housing bearings, hub carriers, A-arms, and driveshafts, helping you select the assembly procedure that matches the rear suspension on the machine.
CV-joint service limits: Damaged inner CV-joint components require hub-assembly replacement. Complete disassembly of the outer CV joint is not recommended; mixing its internal components can cause binding and premature failure.
Shock variants: FOX Podium X procedures cover the MXR front shocks and the MXR/S rear shock. Separate sections address FOX Podium front shocks on the S/IRS and RydeFX rear shocks on the IRS, including piston orientation, seal service, and reassembly checks.
Observe the manufacturer’s precautions for supporting the ATV, brake work, and nitrogen-charged shock service. Polaris specifically recommends authorized MSD-certified technicians for steering repair and adjustment.
Brake Inspection and Electrical Fault Tracing
Front and rear brake-caliper exploded views accompany piston and bore inspection, seal replacement, and bleeding instructions. Separate rear-brake assembly drawings distinguish the MXR/S and IRS layouts.
The Ignition System Breakout Diagram, Charging System Testing Flow Chart, and Starter System Testing Flow Chart connect component checks with fault isolation. Starter voltage-drop tests help distinguish cable or connection problems from starter faults before parts are replaced.
Battery maintenance covers both the MXR/S charging connections and the IRS remote charging terminals. Wiring pages include connector cavities, wire colors, and circuit termination tables.
Examples from Valve and Cylinder Checks
For the KTM 450/525 engines, the valve-adjustment procedure specifies cold intake and exhaust clearance of 0.005 in. (0.127 mm). It also identifies rocker-arm axial clearance as a prerequisite to valve adjustment.
The cylinder-leakdown reference gives a 10% service limit. It explains why the engine’s automatic decompression mechanism makes a cranking compression test unreliable for assessing engine condition.
Searchable Service Text and Detailed Wiring Pages
Search, bookmarks, and diagram detail: Service text supports PDF searching, but wiring labels and some flowchart text are not searchable. Embedded bookmarks cover the vehicle chapters, engine/carburetion sections, and wiring appendix. Small connector labels and wire codes require zooming; the wiring layouts are oriented sideways on the pages.
One printable, English-language, 271-page PDF contains 180 pages of vehicle service chapters, 87 pages of KTM engine/carburetion material, and four wiring-diagram pages. The total already includes four notes pages and eight blank separator pages.
