Polaris Sportsman 800 EFI ATV Owner's Manual – 2005 (P/N 9917720)

Polaris owner's manual for the 2005 Sportsman 800 EFI, P/N 9917720, Revision 01. It covers operating procedures, minor maintenance and owner-level troubleshooting; major repairs are covered in the separate Polaris Service Manual.

Text Search, Navigation and PDF Format

Search and navigation: The main manual text is searchable; text on the covers and preliminary pages is only partly searchable. There are no embedded PDF bookmarks.

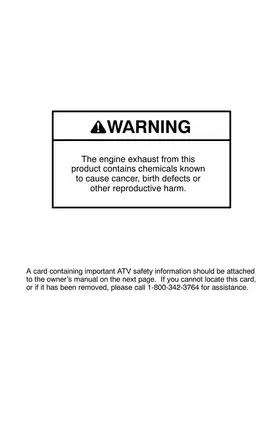

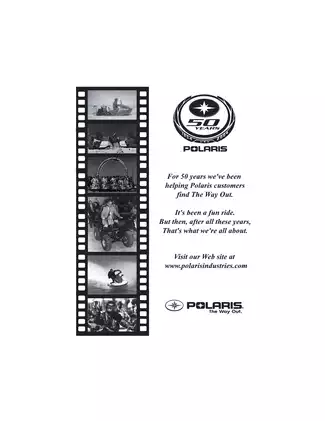

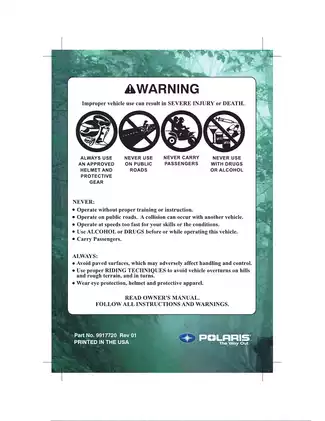

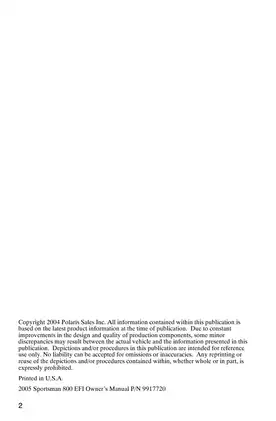

One printable 119-page PDF in English, including two cover pages, an introductory warning page and one additional unnumbered page.

ATV Operation, Routine Service and EFI Checks

This selection of contents highlights the operating and maintenance sections; other topics include cold-weather operation and vehicle transport.

• Controls and operation: On-Demand AWD, Electronic Throttle Control, transmission gear selection, pre-ride inspection, cargo loading and riding procedures.

• Engine and driveline upkeep: Step-by-step oil and filter changes, transmission and front/rear gearcase fluid service, air-filter cleaning and spark-plug replacement.

• Cooling, brakes and chassis: Coolant-level checks, hydraulic disc brake and master-cylinder inspection, wheel removal and installation, toe-alignment checks and rear-spring adjustment.

• EFI and instrument cluster: Fault-code retrieval, blink-code descriptions, diagnostic displays, programmable service reminders and rider-information-center settings.

• PVT and exhaust: High- and low-range guidance, PVT drying instructions, drive-belt troubleshooting and spark-arrestor carbon purging.

• Lighting and battery: Lamp and headlight-housing replacement, beam adjustment, battery removal and installation, charging and battery storage.

This manual suits adult owners and operators familiar with safe basic maintenance practices; dealer-marked service tasks are assigned to an authorized Polaris dealer.

Maintenance Planning and Service Access

Factory maintenance intervals and lubrication references support routine upkeep and general repair shop planning. The Periodic Maintenance Chart distinguishes normal from severe use and identifies work assigned to the dealer, helping separate owner checks from professional service requirements.

Cooling and lubrication: The cooling section explains how the radiator and recovery bottle work together. The Lubrication Guide distinguishes engine oil, transmission lubricant, Demand Drive front-gearcase fluid and rear angle-drive fluid.

Chassis and access: Specifications identify the MacPherson-strut front suspension and progressive-rate rear suspension. Illustrated side-panel and footwell removal procedures provide service-access guidance. Handlebar adjustment is described, while tie-rod adjustment and front-wheel-hub service are assigned to the dealer.

EFI Diagnostics and Troubleshooting References

Illustrated instrument-cluster views explain the rider information center. Its diagnostic screens report battery voltage, AWD-coil current status and gear-switch input resistance.

The separate EFI table covers 12 numbered fault codes, including TPS, injector and intake-air-temperature sensor faults, plus the “No RPM Signal” indication. These diagnostic modes provide information for fault identification; major repairs remain dealer work.

The altitude-specific Clutching Chart lists clutch weights, springs and helix part numbers. Symptom-based troubleshooting charts address no-crank and no-start conditions, backfiring, misfiring, overheating and loss of power.

PVT Belt Care and AWD Damage Risks

Low-range guidance addresses heavy pulling and sustained operation below 7 mph. The PVT explanation links belt slip to heat that can destroy the belt, wear clutch components and cause the clutch cover to fail.

Switching to On-Demand AWD while the rear wheels are spinning can severely damage the drive shaft and front gearcase. The manual explains engagement conditions alongside the operating controls.

Spark-arrestor purging and PVT drying have dedicated procedures; dealer service is still specified after water enters the PVT. Always review the factory warnings before working on the ATV, particularly around the hot exhaust and rotating PVT components.

Preview of Fluid, Spark-Plug and Fastener Specifications

The engine-oil reference specifies 2 quarts (1.9 liters) of 0W-40 synthetic oil. Transmission oil-change instructions specify 15 ounces (450 ml), with the level maintained at the bottom of the fill-plug hole.

For RC7YC spark plugs, the specified electrode gap is 0.035 inches (0.90 mm).

The engine oil drain-plug torque is 20 ft-lb (27 Nm). Separate wheel-installation specifications list 27 ft-lb (37 Nm) for both front and rear wheel nuts.
