Polaris Models Covered & Key Technical Specifications

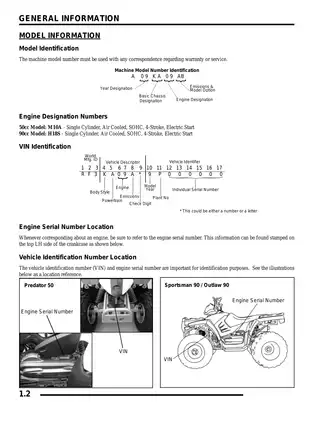

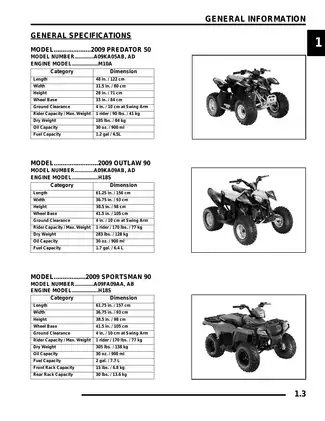

Models & Model Codes: Predator 50 (A09KA05AB, A09KA05AD), Outlaw 90 (A09KA09AB, A09KA09AD), Sportsman 90 (A09FA09AA, A09FA09AB)

Sub-models / Variants: 50cc (Predator 50, engine M10A), 90cc (Outlaw 90/Sportsman 90, engine H18S)

Model Year: 2009

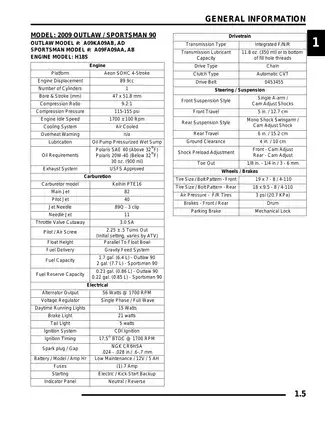

  • Engine displacement: 49.5cc (Predator 50), 89.9cc (Outlaw 90/Sportsman 90)

  • Engine configuration: Single-cylinder, air-cooled, SOHC, 4-stroke

  • Transmission type: Automatic CVT (Forward gear only for 50cc; Integrated Forward/Neutral/Reverse for 90cc)

  • Drive system: Chain drive

  • Fuel system: Gravity feed, Mikuni VM12H (50cc) or Keihin PTE16 (90cc) carburetor

  • Ignition timing: 17.5° BTDC @ 1700 RPM

  • Engine oil capacity: 30 oz. (900 ml)

  • Transmission oil capacity: 11.8 oz. (350 ml)

Polaris Manual Features & Selected Content Preview

This Polaris service manual (P/N 9921800) covers maintenance, diagnosis, and repair of the 2009 Predator 50, Outlaw 90, and Sportsman 90 youth ATVs, including the M10A and H18S engines.

Text Search, Bookmarks, and Wiring Detail

Search and diagram access: Most service text is searchable, with embedded bookmarks for chapters, individual procedures, and wiring diagrams. Detailed wiring labels and portions of some electrical diagnostic graphics are not searchable. Small wire codes and connector labels on the full wiring sheets require zooming.

Supplied as one printable, 170-page PDF in English, including four notes pages and two wiring-diagram pages.


  • Engine repair: Engine removal and installation, cylinder-head service, cylinder honing, piston inspection, crankcase disassembly, and camshaft timing procedures.
  • Transmission and CVT: Internal shaft and gear inspection, transmission assembly, drive-belt removal, and drive and driven clutch disassembly, inspection, and reassembly.
  • Fuel system: Separate Mikuni and Keihin carburetor procedures, float adjustment, needle-and-seat leak testing, and fuel-delivery troubleshooting.
  • Steering and suspension: Model-specific control-arm and A-arm replacement, swing-arm removal, steering-post service, tie-rod inspection, and front toe alignment.
  • Drum brakes: Front and rear brake service, shoe-wear inspection, wheel-hub bearing checks, cable adjustment, and exploded assembly views.
  • Electrical diagnosis: CDI and pulser-coil tests, stator and charging checks, starter troubleshooting, Electronic Throttle Control diagnosis, and model-specific wiring diagrams.

The manual suits technicians familiar with mechanical inspection and electrical testing; its CVT chapter specifically restricts maintenance and repair to properly trained, certified Polaris Master Service Dealer technicians.

Maintenance and Inspection

Coverage spans daily pre-ride checks and the scheduled services in the Periodic Maintenance Chart, including 10-hour, 30-hour, and 300-hour intervals. The Lubrication Chart connects fluid requirements and lubrication points with their service schedules.

Drive-chain inspection distinguishes the suspension position used on the 90cc models from the 50cc inspection method. Brake inspection, tire maintenance, throttle free play, and ETC adjustment are covered alongside the related service specifications.

Engine and Transmission Repair

The engine chapter provides step-by-step procedures for top-end and bottom-end disassembly and assembly. Cylinder-head coverage extends to rocker-arm and camshaft inspection, valve-seat reconditioning, and valve-sealing tests. Cylinder honing, piston-ring inspection, and cam-chain installation have their own procedures.

Engine Exploded Views & Torque Values include tightening patterns, while the Oil Flow Diagram traces pressure lubrication, splash lubrication, and the breather circuit. Tool references include flywheel puller PA-45153 and valve spring compressor PA-46502 with adapter PA-48701.

The compression-test section warns that an overlong tester adapter can damage the cylinder head. The 90cc compression references also differ between the general specifications and the model-specific Engine Service Data tables.

Transmission coverage includes bearings, shafts, shift forks, engagement dogs, and assembly checks, with differences between the forward-only and reversing versions identified in the procedures. Transmission service can be performed with the engine installed; crankcase work requires engine removal. Crankshaft components are treated as an assembly replacement.

Carburetors and CVT Service

Separate carburetor disassembly procedures preserve the differences between the Mikuni and Keihin units. Cleaning and inspection instructions lead into float-height adjustment and needle-and-seat pressure testing. The E-Clip Position vs. Fuel Flow chart explains how needle position affects mixture delivery.

CVT inspection covers rollers, bushings, sheave faces, friction shoes, and the driven spring. The overheating section addresses restricted cooling ducts on the 90cc models. Clutch assembly instructions identify roller orientation and sealing requirements.

Chassis and Electrical Fault Finding

Body-removal instructions distinguish all three models, including the Sportsman rack and bumper assemblies. Suspension and steering sections provide exploded views and fastener specifications. The toe-adjustment section warns that incorrect tie-rod-end positioning can prevent pivoting and cause breakage.

The electrical tests support fault isolation before component replacement. For example, the manual explains how a slack or stuck throttle cable can activate the ETC circuit and cause the CDI to retard timing and limit engine speed.

Ignition System Testing and Charging System Testing flowcharts accompany starter voltage-drop checks and full vehicle wiring diagrams. These distinguish power-supply, ground, switch, and component faults rather than treating every starting or RPM-limiting problem as a failed CDI.

Compression and Crankshaft Limit Examples

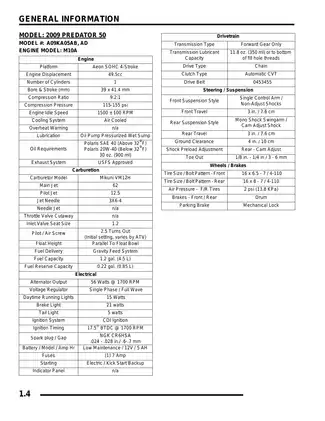

The Predator 50 Engine Service Data lists compression pressure at 115–155 psi, measured as the maximum reading with the throttle wide open.

Crankshaft inspection tables for both engine sizes specify a crankshaft-end runout limit of 0.0039 in. (0.1 mm), alongside connecting-rod clearance and cylinder-wear data.
