Polaris Sportsman 400/500 ATV 2001–2005 Service Manual Set (P/N 9919425)

The multi-year reference combines its main repair chapters with a supplement covering changes unique to later models. The two Polaris service manuals provide separate model-specific procedures and specifications; match the publication to the machine before selecting parts, settings, or test data.

Coverage is not a continuous 2001–2005 run: the included publications cover 2001–2003 and 2005 Sportsman models, but no 2004-specific service publication is included. The multi-year model table specifically identifies the 1997 Xplorer 500 4x4.

PDF Search, Bookmarks, and Wiring Detail

Search and navigation: The main text is searchable, with OCR recognition errors in the multi-year reference and some diagram labels unavailable to text search. All three files have embedded bookmarks; the 2005 wiring-diagram bookmark opens one page before the drawings. Small wiring labels require zooming, with softer detail in the older color diagrams.

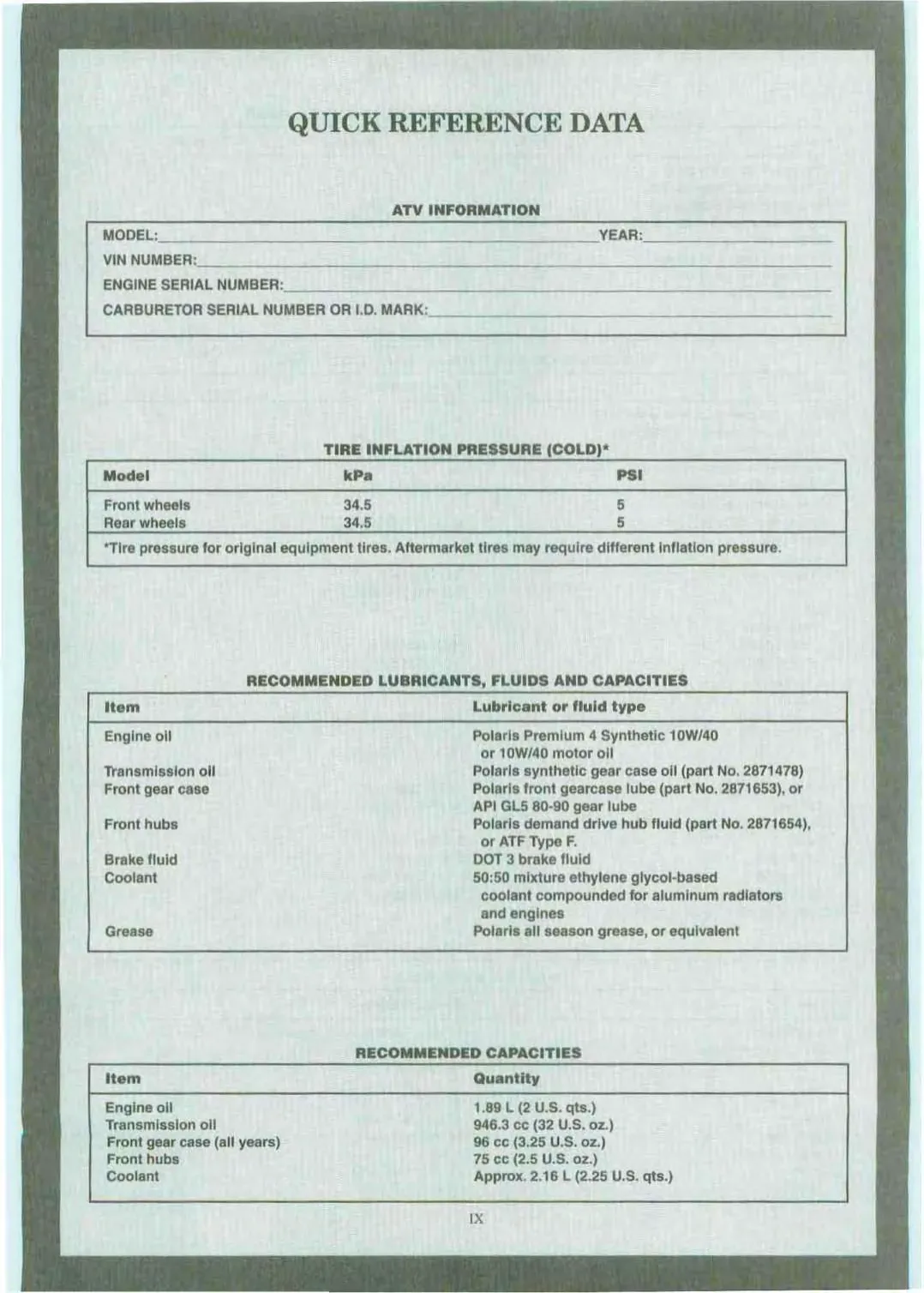

The ZIP contains three printable, English-language PDFs totaling 1,197 pages. This total already includes the 33-page service supplement, 11 front-matter pages, four notes pages, one feedback page, and one back cover.

Engine Overhaul, PVT Service, and AWD Diagnosis

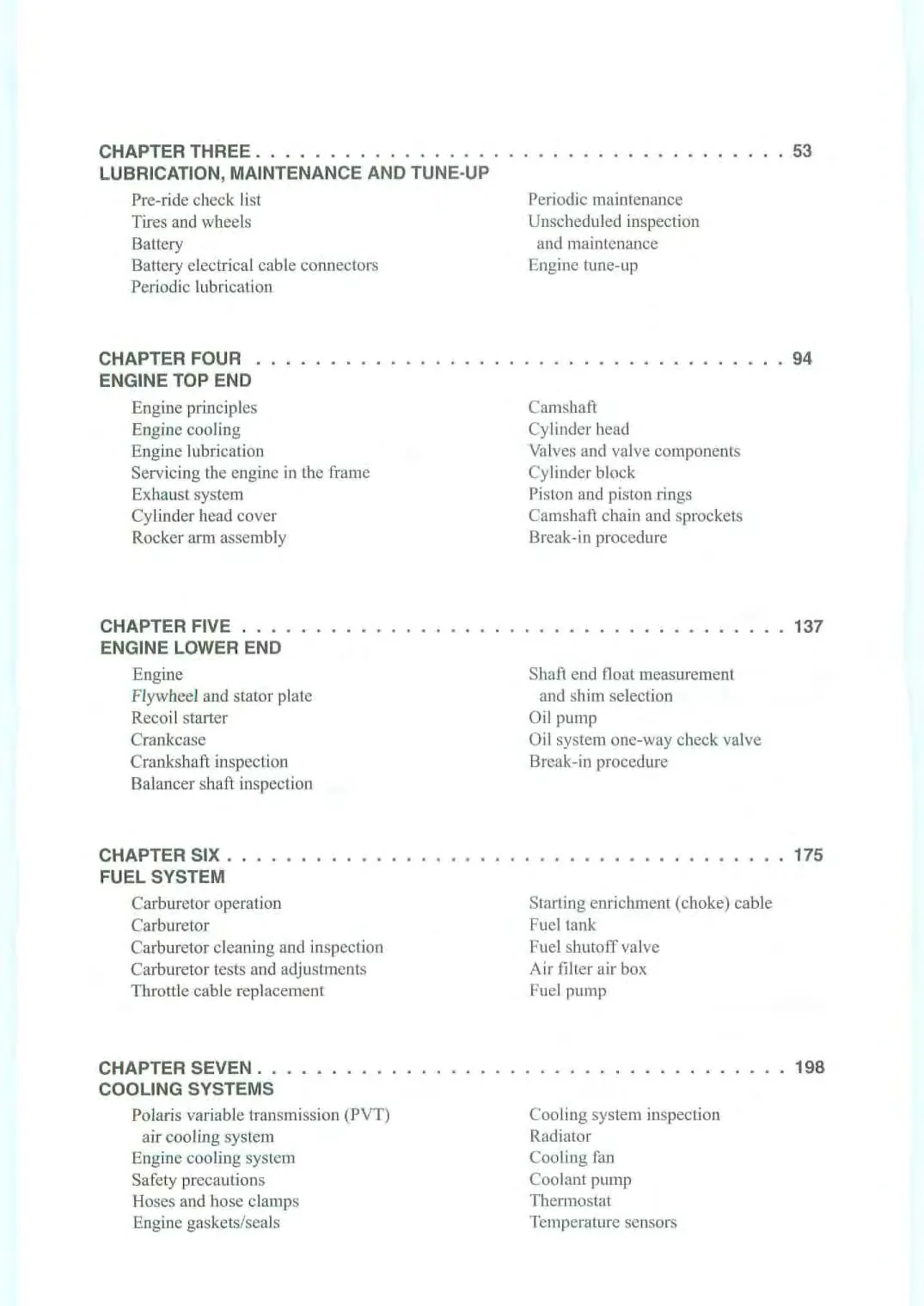

These selected coverage highlights summarize the repair content rather than reproduce the full contents lists. Other documented topics include vehicle storage and fastener identification.

• Engine repair: Step-by-step procedures for removal, top- and bottom-end disassembly, cylinder-head and valve service, crankshaft/counterbalancer inspection, oil-pump priming, and reassembly.

• Fuel and cooling: Mikuni BST34/BST40 carburetor repair, float adjustment, fuel-pump testing, cooling-system pressure tests, and thermostat, fan, sensor, and coolant-pump service.

• PVT and transmission: Non-EBS and EBS clutch disassembly, belt and bushing service, clutch alignment, shift-selector repair, and internal transmission overhaul.

• AWD and final drive: Hilliard clutch and front gearcase repair, magnetic-coil checks, axle and CV-boot service, prop shafts, U-joints, and rear driveshafts.

• Brakes and chassis: Hydraulic bleeding, caliper and master-cylinder repair, pad and disc inspection, steering-post service, ball joints, struts, suspension, and toe alignment.

• Electrical diagnosis: Ignition, charging, starter, speedometer, and AWD fault tracing, supported by wiring diagrams, connector information, and diagnostic flowcharts.

The Polaris service manuals are written primarily for ATV service technicians working in a properly equipped shop, with mechanical knowledge, appropriate measuring equipment, and the specified special tools.

Engine Inspection and Reassembly

The engine chapters extend from EH42PLE/EH50PLE removal through crankcase separation and final assembly checks. They cover camshaft and timing-chain work, rocker arms, valve guides and seats, cylinder honing, piston and ring inspection, crankcase bearings, and crankshaft runout and end play.

Oil-pump and one-way-valve service, sealed recoil repair, lubrication-flow diagrams, compression testing, and oil-pressure checks support diagnosis before and after an overhaul. Component-specific torque patterns, clearances, wear limits, and approved lubricant data accompany the procedures.

Incorrect camshaft timing can cause serious engine damage; the timing sections identify the reference marks and assembly relationships involved.

Carburetor and Cooling-System Differences

The 2005 manual separates the Sportsman 400’s Mikuni BST34 and non-EBS configuration from the Sportsman 500’s BST40 and EBS configuration. This distinction matters when selecting carburetor, drive-belt, clutch, and diagnostic information.

Fuel-system chapters explain CV carburetor operation, venting, temperature/altitude jetting, cleaning, inspection, needle-and-seat leakage testing, and fuel-level checks. Cooling coverage includes radiator-cap testing, hose inspection, coolant circulation, and related electrical tests.

Clutch, Transmission, and Hilliard Drive Systems

PVT sections explain clutch operation, cover and duct sealing, spring and weight inspection, belt tension, clutch offset, and troubleshooting. The supplement identifies a different driven-pulley fixed-sheave arrangement for 2003 models built after July 8, 2002.

Transmission chapters cover removal, internal inspection, reassembly, installation, and operational troubleshooting. The AWD material distinguishes hub-mounted Hilliard components from the centralized front gearcase, with armature-plate, roller-clutch, bearing, and seal information.

The repair cautions address one-way-clutch seal damage from opening the EBS driven clutch from the wrong side and roller-clutch damage from a displaced armature plate in the hub-mounted Hilliard assembly.

Brake, Steering, and Body Service

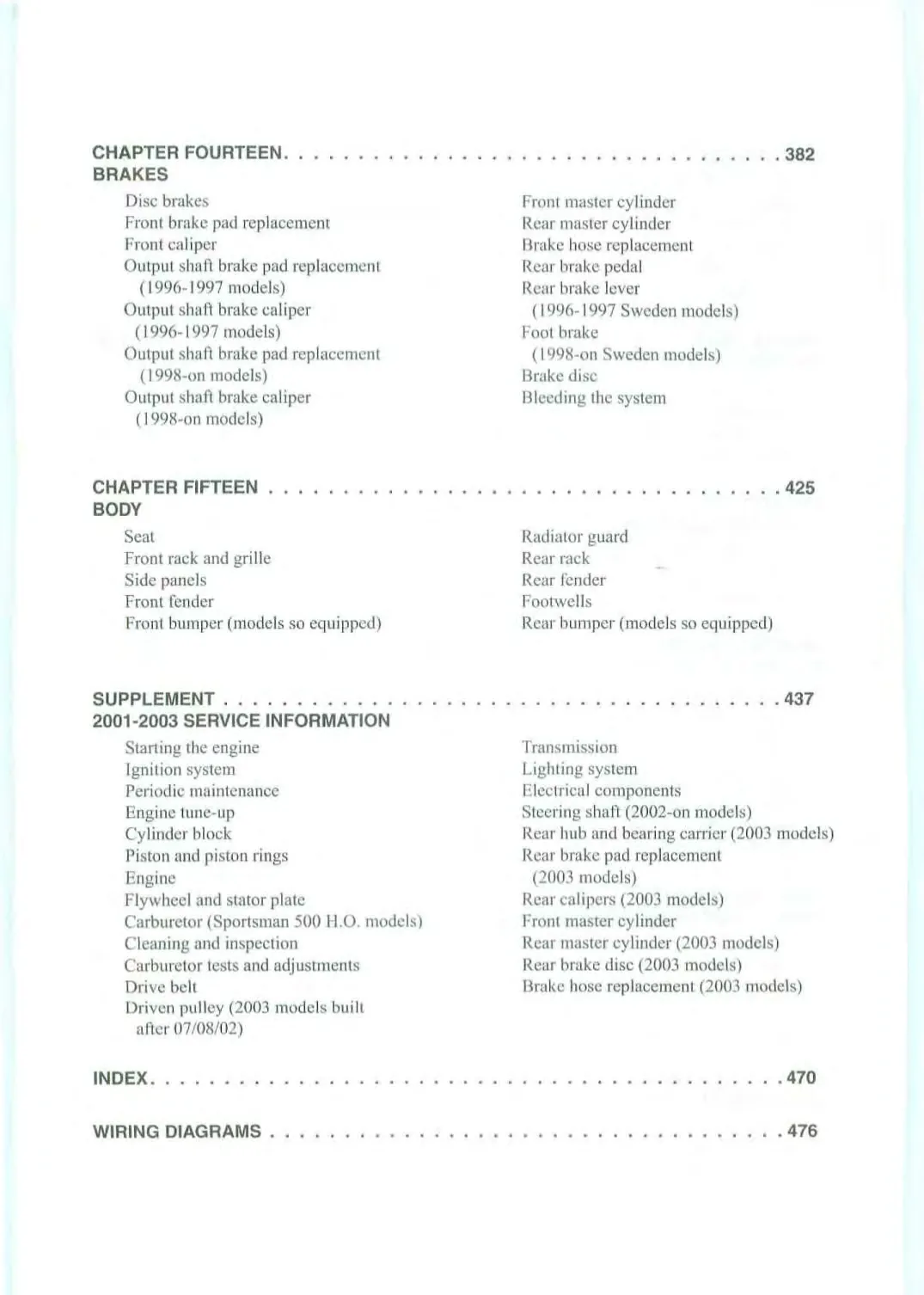

The supplement separates 2002-on steering-shaft work and the revised 2003 rear-hub and brake layout. Brake sections cover fluid replacement, front and rear hydraulic components, auxiliary brakes, and master-cylinder inspection.

Body and suspension coverage includes panels, racks, A-arms, MacPherson struts, tie rods, steering posts, and wheel alignment. Shop-safety sections address gasoline, battery service, hot and pressurized coolant, brake fluid, vehicle support, and rotating PVT components.

Electrical Tests, Drawings, and Special Tools

The supplement distinguishes early and late 2003 Sportsman 400 ignition test data. The 2005 publication adds Sure Power Box operation, instrument-cluster diagnostic screens, and speedometer troubleshooting charts. Its AWD fault charts distinguish electrical control problems from mechanical drive faults before gearcase work is selected.

Reference drawings include the EH42PL/EH50PL Engine Exploded View, Fuel Flow Diagram, EBS Exploded View, Front Gearcase — Centralized Hilliard Exploded View, and Ignition System Testing Flow Chart. Model-specific wiring includes the 2001 Sportsman 400, early/late 2001 Sportsman 500, and 2005 Sportsman diagrams, plus a winch wiring schematic.

Special-tool references identify the 2870506 Drive Clutch Puller, 2870654 Clutch Offset Alignment Tool, 2872292 EBS Clutch Alignment Tool, and 2871702 Shaft Drive Transmission and Front Gearcase Tool Kit. Pressure and electrical testing references include the 2870975 Mity Vac and 2460761 Hall Sensor Probe Harness.

Examples of Carburetor Float-Height Specifications

The 2005 Sportsman 400’s Mikuni BST34 has a specified float height of 13 ± 1 mm. The Sportsman 500’s BST40 specification is 14.7 ± 1 mm, with the corresponding adjustment and inspection information in the carburetion chapter.
