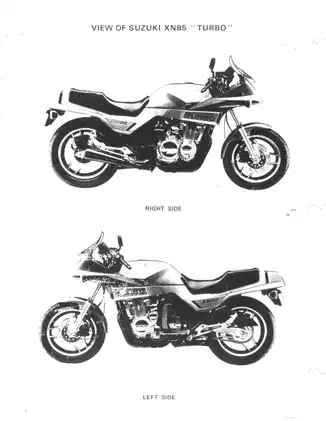

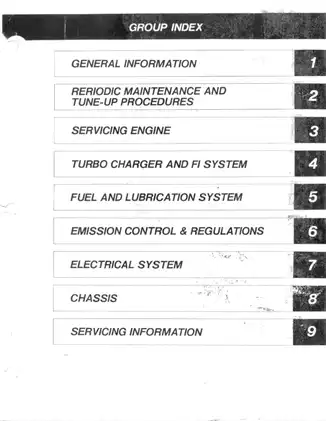

1983 Suzuki XN85 Turbo Service & Repair Manual (P/N 99500-36020-03E)

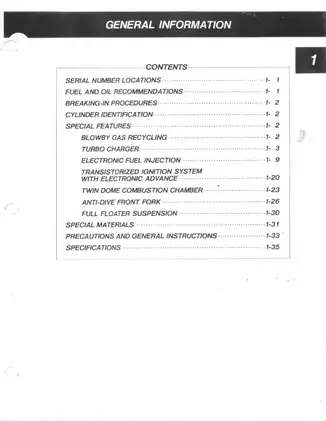

This Suzuki factory service manual covers the 1983 XN85 Turbo, including its electronic fuel injection, Twin Dome Combustion Chamber, anti-dive front fork, and Full-Floater rear suspension. Publication 99500-36020-03E contains maintenance, diagnosis, and repair procedures for this turbocharged model.

• Engine repair: Engine removal and remounting, cylinder-head servicing, valve-guide replacement, crankcase separation, piston inspection, and crankshaft bearing selection.

• Turbocharger and fuel injection: Turbocharger inspection and replacement, wastegate actuator testing, fuel-pressure checks, injector testing, and throttle-valve synchronization.

• Electronic controls: Computer-terminal voltage tables, air flow meter checks, throttle position sensor adjustment, and temperature-sensor and high-altitude compensator tests.

• Electrical diagnosis: Ignition and charging-system tests, starter-motor overhaul, LCD instrument troubleshooting, and fuel-injection and main wiring diagrams.

• Chassis service: Anti-dive fork disassembly, steering-stem bearing replacement, brake caliper and master-cylinder repair, and rear suspension linkage servicing.

• Maintenance and service data: Periodic service schedules, tappet shim selection charts, lubrication-system checks, tightening torques, wear limits, and cable and hose routing drawings.

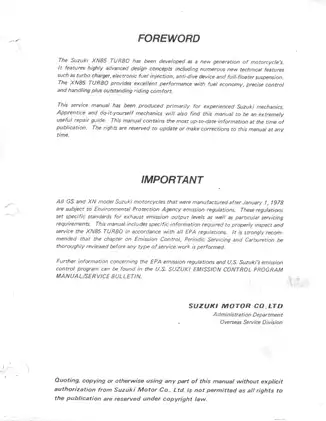

Written primarily for experienced Suzuki mechanics, the manual also addresses apprentice and do-it-yourself mechanics; internal engine work and fuel-system diagnosis call for the specified measuring equipment and special tools.

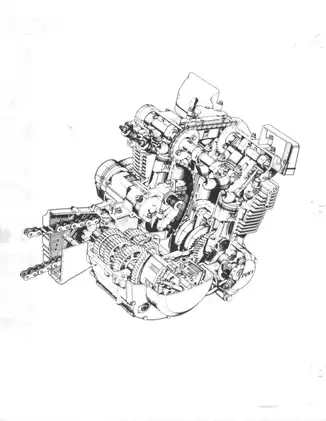

Engine and Lubrication Service

The engine chapter distinguishes components removable with the engine installed from work requiring engine removal. Cylinder-head procedures cover valve-seat conditioning, guide replacement, camshaft inspection, and cam-chain timing, supported by valve head radial runout illustrations and component-specific inspection limits.

Crankshaft and connecting-rod bearing selection tables relate identification marks to bearing grades. Transmission coverage extends to gear and shift-fork inspection, shaft assembly, and primary driven gear thrust-clearance adjustment. The wet multi-plate clutch and starter clutch have separate inspection and assembly instructions.

Oil-pressure testing is supported by engine and turbocharger lubrication diagrams, oil-cooler operation explanations, and oil-passage checks. The oil pump is treated as a replacement assembly rather than an internal overhaul job.

Turbocharger and Fuel-Injection Diagnosis

Turbocharger coverage includes removal, turbine-wheel inspection, wastegate actuator testing, and reinstallation. The turbocharger and actuator are not serviceable internally; the documented approach is inspection and assembly replacement.

Fuel-system procedures cover pump delivery, regulator operation, injector resistance, discharge and leakage, and the circuit opening relay. Fuel remains under pressure during relevant checks, and the manual includes precautions for fuel leakage and electrical isolation.

Computer-terminal tables and open- and short-circuit symptom charts connect individual sensor and wiring faults with starting, idling, and acceleration complaints. These references help distinguish an electrical input fault from a fuel-delivery problem before components are replaced.

The air flow meter has inspection procedures but is not intended for disassembly. Its sealed CO regulating screw is factory-set; disturbing it can impair injection performance. Charging the battery while it remains installed can damage the battery, computer unit, or regulator/rectifier.

The compressor efficiency chart, revolution advance angle graph, boost advance angle graph, and excess supercharge pressure prevention graph explain how boost and ignition control interact. The emission-control chapter adds fuel-injection malfunction guidance and the publication’s original regulatory background.

Brakes, Suspension, and Electrical Equipment

Front-fork service covers seals, anti-friction bushes, and anti-dive modulator inspection, with cross-section drawings showing the hydraulic arrangement. Brake bleeding instructions account for the anti-dive circuit, alongside caliper and master-cylinder servicing.

Rear chassis coverage includes swingarm bearings, cushion-lever and cushion-rod bearings, and coordinated front and rear suspension settings. The rear shock absorber is removed and replaced as a unit, rather than internally rebuilt.

Electrical coverage includes ignition coils, the signal generator, manifold pressure sensor, regulator/rectifier, and starter relay. LCD meter diagnostic charts address the fuel, boost, and oil-temperature displays; wiring and routing drawings support circuit tracing and reassembly.

A Preview of Fork and Idle Specifications

The front-fork section specifies 253 ml of oil per leg and an oil level of 218 mm with the spring removed and the inner tube fully compressed. It identifies the fork oil level gauge used for this check.

For routine adjustment reference, the maintenance section lists engine idle speed at 1,050 ± 50 rpm with the engine hot. These examples sit alongside the manual’s wider inspection limits and adjustment tables.

Printable PDF and Diagram Readability

Search, navigation, and wiring detail: PDF text search is unavailable, and there are no embedded bookmarks. Small labels in the fuel-injection wiring diagram require enlargement; some fine lettering in the main wiring diagram remains difficult to read when enlarged.

One printable English-language PDF contains 362 pages, including three repeated pages and two unnumbered fuel-hose routing sheets. These pages are already included in the total.
