Polaris Scrambler 500 2x4 & 4x4 ATV Service Manual (2001) (P/N 9916578)
382 Pages • 1 Printable PDF (English) • Download
Polaris Models Covered & Key Technical Specifications
Models & Model Codes: Scrambler 500 2x4 (A01BA50AA, engine EH50PLE04), Scrambler 500 4x4 (A01BG50AA, engine EH50PLE12)
Sub-models / Variants: 2x4, 4x4
Model Year: 2001
-
Engine displacement: 498 cc
-
Engine type: Single cylinder, liquid-cooled, SOHC, 4-stroke
-
Transmission type: PVT (Polaris Variable Transmission) with separate 2x4 and 4x4 gearboxes. Both have high, neutral, and reverse. The 4x4 gearbox also drives the front prop shaft.
-
Fuel type: 87 octane non-oxygenated or 89 octane oxygenated
-
Front suspension: MacPherson Strut
-
Rear suspension: Progressive Rate Swing Arm
-
Dry weight: 523 lbs (2x4), 571 lbs (4x4)
-
Idle speed: 1200 RPM (+/- 200), lights off
Polaris Manual Features & Selected Content Preview
Polaris service manual P/N 9916578 covers the 2001 Scrambler 500 2x4 (A01BA50AA) and Scrambler 500 4x4 (A01BG50AA) with Gen III bodywork.
PDF Search, Bookmarks, and Wiring Detail

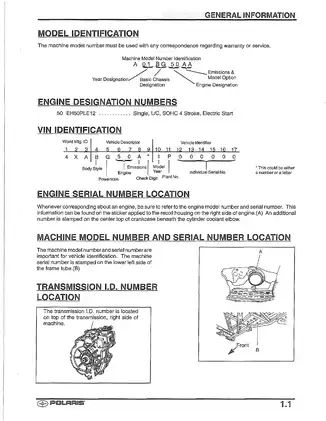

Text search and diagram labels: Embedded OCR makes the main chapters searchable, with incomplete recognition of small wiring labels. Bookmarks open all ten chapters and the alphabetical index. The wiring bookmark opens the 4x4 diagram, with the 2x4 diagram on the preceding page. Small wire and connector labels are best read when enlarged.

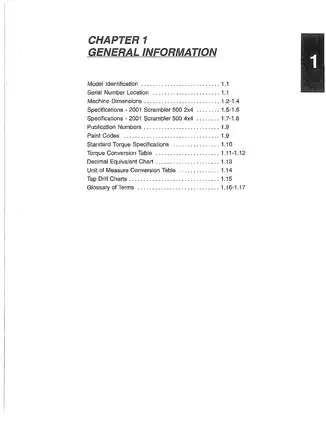

The download is one printable 382-page PDF in English. The total includes one chapter-index page, ten chapter-opening contents pages, a six-page alphabetical index, 18 blank pages, and one electrical notes page.
Engine Overhaul, Drivetrain Service, and Electrical Testing
These selected service topics show the repair and diagnostic coverage. Other procedures include compression testing and throttle cable adjustment.
-
Engine repair: Step-by-step EH50PL top- and bottom-end disassembly, valve-seat reconditioning, crankcase assembly, camshaft timing, and component inspection.
-
Fuel system: Mikuni BST 40 carburetor overhaul, float adjustment, needle-and-seat leakage testing, fuel-pump inspection, and jetting charts.
-
PVT and transmission: Drive and driven clutch service, belt inspection, clutch alignment, and separate 2x4 and 4x4 transmission disassembly and reassembly procedures.
-
AWD and final drive: Hilliard clutch inspection, magnetic hub-coil service, front gearcase overhaul, CV boot replacement, and concentric-swingarm rear axle service.
-
Chassis and brakes: Steering and strut repair, Fox shock service, master-cylinder and caliper overhaul, disc inspection, and dual hydraulic brake bleeding.
-
Electrical diagnosis: CDI and stator tests, charging and starter troubleshooting, reverse-limiter and AWD testing, and separate wiring diagrams for the two models.
This manual is suited to experienced ATV technicians equipped for precision engine measurements and component overhaul.
EH50PL Engine Repair, Lubrication, and Cooling
Engine measurements: EH50PL coverage includes EH50PLE04 and EH50PLE12 identification, piston and cylinder measurements, crankshaft runout, and end-play checks for the crankshaft, counterbalancer, and oil-pump shaft. Service tables give wear limits and component-specific torque data.
Maintenance and fluid systems: Periodic schedules accompany valve-clearance procedures, fluid capacities, and tire-pressure specifications. The EH50PL Oil Flow Diagram supports lubrication diagnosis alongside oil-pressure testing and oil-pump priming. Cooling-system pressure tests and coolant bleeding are also covered.
Water-pump seal: The accessible-component list helps determine which repairs can be done with the engine in the frame. The mechanical-seal procedure identifies puller PN 2872105 and installation tool PN 5131135. Side-loading the puller can bend the pump shaft, and replacing a bent shaft requires engine removal and crankcase separation.
Mikuni BST 40 Carburetor and Fuel Pump
The carburetor chapter explains the pilot, starter-enrichment, float, and main systems. The BST 40 Carburetor Exploded View, inlet needle tests, and fuel-pump diaphragm vacuum test help trace fuel starvation, flooding, and erratic idle. The manual also covers fuel-pump disassembly and diaphragm replacement.
Jetting charts account for temperature and altitude. The manual pairs them with clutch calibration charts because elevation changes can also affect clutch setup.
PVT Clutches and 2x4/4x4 Transmissions
Clutch coverage includes engagement, spring and shift-weight selection, belt deflection, and bushing replacement. Troubleshooting charts address belt slip, harsh engagement, erratic operating RPM, and PVT overheating. Polaris specifies authorized technicians with Polaris service training and factory-authorized tools for PVT service.
The transmission exploded views distinguish the shafts, chains, and gear assemblies used in each drivetrain. The shift-linkage checks and transmission troubleshooting checklist help narrow down whether hard shifting comes from the linkage or inside the gearbox.
AWD Hubs, Suspension, and Hydraulic Brakes
Front hubs: The 2x4 has dedicated front-hub bearing and seal procedures. On the 4x4, a displaced armature plate can damage the Hilliard roller clutch.
Chassis and suspension: The manual covers body-panel removal, model-specific steering layouts, MacPherson struts, and the concentric swingarm. Rear drive-chain adjustment and sprocket inspection are included. Fox shock service extends to internal floating-piston work, valving, and nitrogen recharging.
Brakes: The Dual Hydraulic Caliper cutaway shows how the hand and foot brakes use independent hydraulic circuits in the same rear caliper. Troubleshooting covers brake noise and drag. Follow the manual's shop safety precautions and consult a qualified technician before undertaking brake, steering, or pressurized-shock work.
CDI, Charging, and Control-Circuit Diagnosis
Ignition testing covers CDI output and stator exciter and trigger coils, including peak-reading voltmeter requirements. The electrical chapter also covers charging-system tests, starter motor disassembly and brush and armature inspection, plus Electronic Throttle Control (ETC), fan-control, and gear-position-switch tests.
The LR44 Reverse Limit System schematic applies to the 2x4. The LR83 Reverse Limit System schematic applies to the 4x4 and complements its AWD electrical tests.
Valve Clearance and Carburetor Test Examples
For both models, the maintenance chapter specifies 0.006 in. (0.15 mm) for intake and exhaust valve clearance with the engine cold and the piston at top dead center on the compression stroke.
For the Mikuni BST 40 on both models, the carburetor chapter lists a standard float height of 14.7 mm ± 1 mm with the inlet needle spring uncompressed. The inlet needle and seat should hold 5 psi indefinitely during the inverted-carburetor leakage test.
