Polaris ATV & Light Utility Hauler Factory Service Manual, 1985–1995 (P/N 9912004)
468 Pages • ZIP Download: 1 Printable PDF • 11.90 MB
Polaris Models Covered & Key Technical Specifications
Models: Scrambler, Trail Boss, Cyclone, Trail Blazer, Big Boss, Magnum, Sportsman, Xplorer, Sport, 250 2x4, 250 4x4, 350 2x4, 350 4x4, 300 2x4, 300 4x4, 400 2x4, 400 4x4
Models & Model Codes:
Scrambler — Three Wheels: W857027, W867027, W862027; Four Wheels: W957840
Trail Boss — W857527, W867527, W867627, W877527; 2x4: W887527, W897527, W907527, W917527, W927527; 250 / 2W: W898527, W908527, W918527, W928527, W938527, W948527, W958527; 250 R/ES: X888528, W888528; 4x4: W878027, W878127, W878327, W888127, W898127, W908127, W918127, W928127; 350L 2x4: W907539, W917539, W927539; 350L 4x4: W908139, W918139, W928139
Cyclone — W877828
Trail Blazer — W907221, W917221, W927221, W937221, W947221, W957221
Big Boss — 4x6: X898627, W899627, W908627, W918627, W928627; 250 6x6: W918727, W928727, W938727; 350L 6x6: W938739; 300 6x6: W948730; 400L 6x6: W948740, W958740
Magnum — 2x4: W957544; 4x4: W958144
Sportsman — W938039, W948040, W958040
Xplorer — 4x4: W959140
Sport — W948540, W958540
250 2x4 — W937527
250 4x4 — W938127
350 2x4 — W937539
350 4x4 — W938139
300 2x4 — W947530, W957530
300 4x4 — W948130, W958130
400 2x4 — W947540, W957540
400 4x4 — W948140
Sub-models / Variants: 2x4, 4x4, 6x6, 250, 300, 350L, 400L, R/ES, Three Wheels, Four Wheels, 4x6, 425
Model Years: 1985–1995 (1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995)
Engine variants:
EC25PF-01 — Early Scrambler and Trail Boss
EC25PF-02 — Cyclone
EC25PF-03 — Trail Boss 2x4 and 4x4 applications
EC25PF-04 — Trail Boss 250 R/ES
EC25PF-05, EC25PF-08 — Trail Boss and air-cooled 250 utility applications, including Big Boss
EC25PF-07, EC25PF-09 — Trail Blazer
EC28PF-01 — 300 2x4, 300 4x4 and 300 6x6
EC35PL-02 — 350L applications
EC38PL-01 — 1994 400L applications, including Sport and Sportsman
EC38PLE-01 — 1995 400 2x4, Xplorer 4x4, Sportsman and 400 6x6
EC38PLE-02 — 1995 Sport
EC38PLE-03 — 1995 Scrambler
EH42PL-01 / EH42PLE-01 — Magnum 2x4 and 4x4
Transmission variants:
Type 1 — Chain: Early Scrambler and Trail Boss applications, Cyclone, Trail Boss R/ES and 1990 Trail Blazer.
Type 2 — Gear: 1987 4x4 sandcast unit (P/N 1341036); ME25P — 1987 4x4 second build; ME25PR — 1988 2x4; ME25P3 — 1988 4x4; ME25P3A and ME25P5 — 1989 4x4; ME25P6 — 1989 2x4.
Type 2 — Gear: ME25P10 — 1990–1993 Trail Boss and 1991–1993 Trail Blazer; ME25P8 — 1990–1992 4x6 and 1990–1993 2x4; ME25P7 — 1990–1993 4x4; ME35P1 — 1990–1993 350L 4x4 and 1991–1993 250 6x6; ME25P2 — 1991–1993 350L 2x4 and early-build 1993 350L 6x6.
Type 3 — Gear/Chain USA (EZ Shift): Late-build 1993–1995 6x6; 1993–1994 Sportsman (P/N 1341136); 1995 Sportsman (P/N 1341146).
Type 3 — Gear/Chain USA (EZ Shift): 1994–1995 300 2x4 (P/N 1341125), 400 2x4 (P/N 1341123), 300 4x4 (P/N 1341136), 400 4x4 (P/N 1341146), Trail Boss, Trail Blazer and Sport (P/N 1341124).
Type 3 — Gear/Chain USA (EZ Shift): 1995 Xplorer (P/N 1341146), Scrambler (P/N 1341140), Magnum 2x4 (P/N 1341139) and Magnum 4x4 (P/N 1341132).
-
Battery capacity: 12V 14 Amp/Hr (battery-equipped applications)
-
Engine operating speed: 6000 RPM (EC25PF-01 Scrambler and Trail Boss)
-
Weight: 440 lbs. (Trail Boss W857527)
-
Fuel capacity: 4 U.S. Gallons (Scrambler W857027)
-
Drive chain type: 520 O-ring
-
Handlebar adjuster torque: 8–10 ft. lbs.
Polaris Manual Features & Selected Content Preview
Polaris factory service manual P/N 9912004 covers 1985–1995 ATVs and Light Utility Haulers, including three-wheel Scrambler models, the Trail Boss family, Cyclone, Trail Blazer, Big Boss, Sportsman, Sport, Xplorer and Magnum. The updated chapters include January 1995 service information.

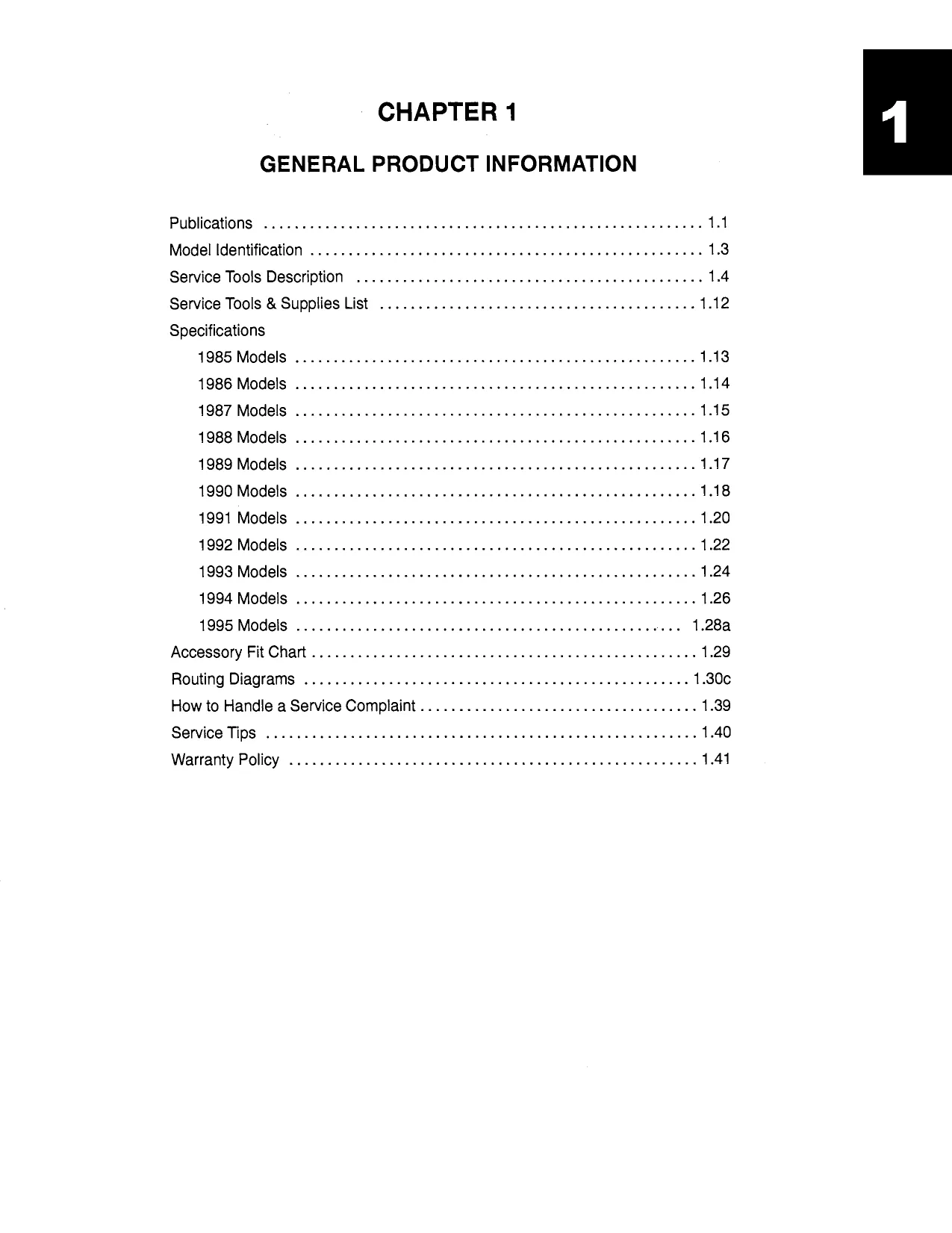

Chapter Bookmarks and Wiring Diagram Detail

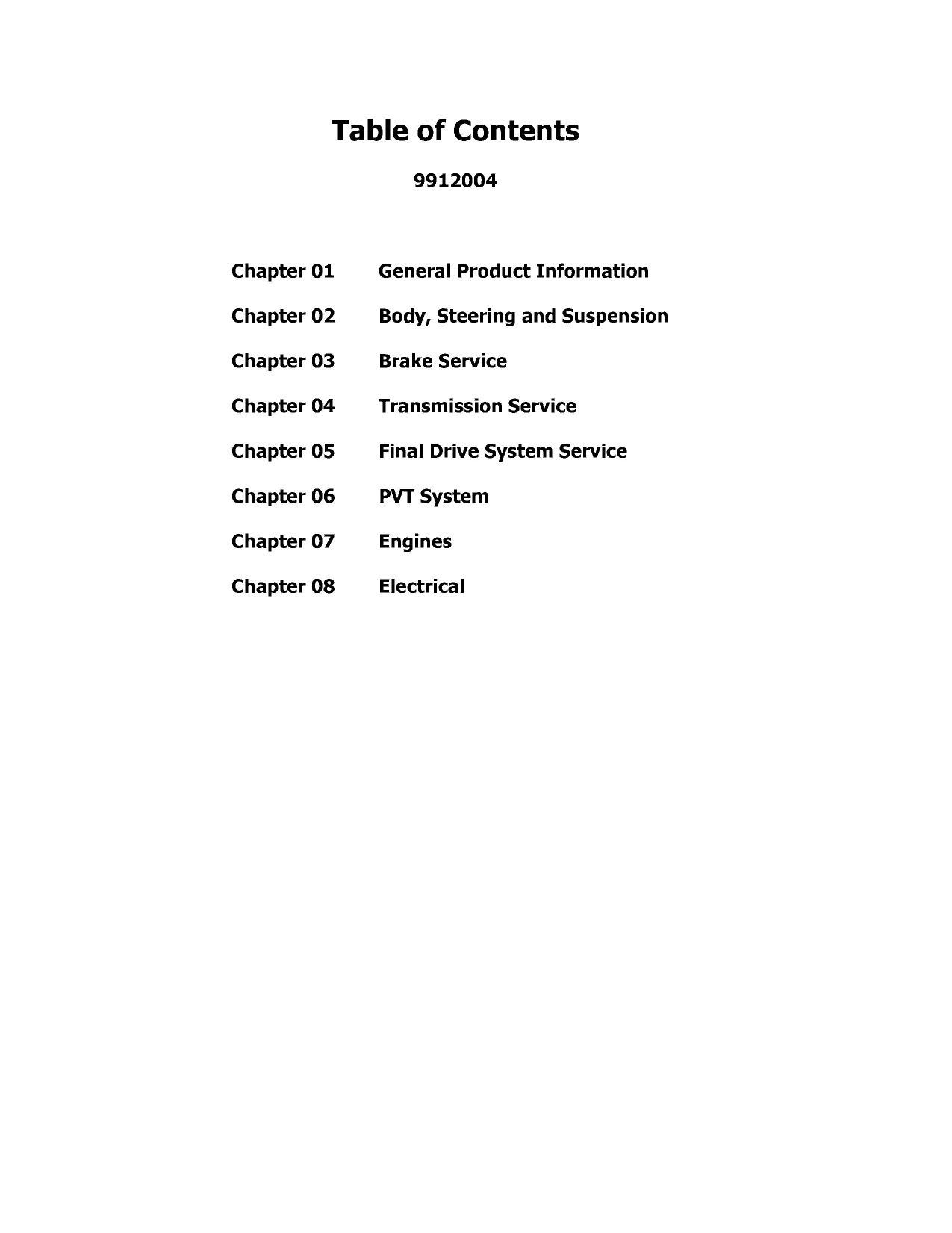

Search, navigation and diagrams: PDF text search is not available for the manual pages. Embedded bookmarks link to the contents and eight main chapters. Small labels in the checked wiring schematics require zooming; several diagrams are printed sideways.
Supplied as a ZIP containing one printable English PDF with 468 pages, including four front-matter pages and one blank page.
Engine, Drivetrain and Chassis Repair
The following is a selection of covered work, rather than a complete contents list. Other topics include lubrication guidance and recoil-starter service.
-
Engine repair: Step-by-step procedures cover air-cooled two-stroke teardown, crankshaft alignment, 350L/400L engine service, and Magnum four-stroke disassembly, inspection and assembly.
-
Transmission service: Type 1 chain, Type 2 gear and Type 3 EZ Shift procedures include internal inspection, reassembly, selector service and shift-linkage adjustment.
-
Final drive: Chain adjustment, axle and eccentric service, Demand 4 operation, Hilliard roller-clutch testing, front-hub overhaul, CV-boot replacement and bearing adjustment.
-
PVT service: Drive-belt inspection, clutch alignment and offset, drive and driven clutch overhaul, bushing replacement and symptom-based troubleshooting.
-
Chassis and suspension: Body and tank removal, camber/caster and toe checks, steering-stop adjustment, frame inspection, front-fork service, strut replacement and Fox shock maintenance.
-
Brake repair: Mechanical and hydraulic system identification, master-cylinder and caliper overhaul, output-shaft and auxiliary brake service, and model-specific bleeding procedures.
-
Fuel and electrical diagnosis: Mikuni VM and BST 34 carburetion, fuel-pump service, jetting compensation, ignition tests, starter diagnosis, charging checks and year/model wiring schematics.
Written primarily for ATV service technicians in a properly equipped shop, this manual assumes knowledge of mechanical theory, tool use and workshop procedures.
Model Identification and Chassis Differences
Model-identification tables distinguish machines whose brakes, steering, transmissions and hubs require different parts or procedures. For example, W907221 identifies a Trail Blazer, while W937527, W938127 and W938739 identify 250 2x4, 250 4x4 and 350 6x6 configurations.
Body documentation separates standard, Magnum, Xplorer and Scrambler arrangements. Steering views distinguish 1988–1992 and 1993-on layouts; suspension coverage includes the 1985–1986 Scrambler front fork, Magnum rear-axle hardware, Big Boss swingarms, strut cartridges, ball joints and 2x4 hub bearings.
Brake-system identification precedes the Type I, II and III hydraulic procedures. Separate sections address Sportsman, Xplorer, Scrambler and six-wheel output-shaft calipers.
Incorrect tie-rod end positioning can prevent the joint from pivoting and cause breakage.
Transmission, Demand 4 and PVT Details
The transmission guide separates ME25/ME35 gearboxes from later USA EZ Shift units. Repair sections cover case splitting, shaft and bearing inspection, torque-stop adjustment, selector wiring and speedometer-drive service.
Demand 4 documentation distinguishes mechanical hubs from electrically engaged hubs. Electrical test charts help separate a wheel-coil or supply-circuit fault from a mechanical engagement problem before hub repair is selected.
PVT documentation includes production clutch settings, shift weights, springs and altitude recommendations. Original balance marks and spider washer stacks must be preserved; incorrect washer placement on 1990–1992 350L clutches can cause premature button and tower wear.
Two-Stroke and Magnum Engine Work
The engine chapters distinguish EC25PF/EC28PF air-cooled engines, EC35PL/EC38PL liquid-cooled engines and the EH42PL Magnum four-stroke. Coverage includes cylinder honing, piston clearance, crankcase assembly, water-pump service and oil-pump checks.
Magnum procedures extend to valve-guide and seat work, counterbalancer inspection, lubrication-system testing and camshaft timing. Separate timing methods address assembly with the stator removed or with the flywheel timing mark available.
Carburetion sections explain Mikuni VM and BST 34 operation, with cleaning, float-height checks, assembly, fuel-pump inspection and altitude/temperature jetting charts.
Drawings, Test Data and Workshop Requirements
Examples include Magnum and Xplorer body exploded views, Demand 4 hub and Hilliard-clutch views, the Magnum lubrication/oil-flow diagram, Mikuni carburetor exploded views, and the 1995 Xplorer/Sportsman/400 6x6 wiring schematic. Routing drawings cover fuel, oil, coolant, choke, spark-plug, fan-motor and transmission/brake-switch wiring.
Reference tables provide torque specifications, capacities, wear limits, gear ratios and electrical test values. Listed tools include clutch puller 2870506, holding fixture 2870547, crankshaft alignment fixture 2870710, Type III master-cylinder tool kit 2870962 and 350L counterbalance puller 2870968.
This service publication does not replace the model-specific parts books listed in Chapter 1. PVT repair requires the factory tools and trained personnel specified by Polaris.
Because the manual covers brake hydraulics, fuel systems, high-pressure Fox shocks, rotating PVT assemblies and battery service, support the machine securely and follow the factory warnings and inspection checks before returning it to operation.
Preview: Magnum Valve Clearance and Oil Pressure
For the Magnum four-stroke, intake and exhaust valve clearance is .006 in. (.15 mm), checked with the engine cold and the piston at TDC on the compression stroke.
The Magnum lubrication section specifies standard oil pressure of 20 psi and a minimum of 12 psi at 5,500 rpm with the engine hot and Polaris 0W/40 synthetic oil. These figures accompany the oil-pressure test and lubrication-flow documentation.
