2005–2007 ASV RCV Track Loader Operation & Maintenance, Service and Parts Manual Set (P/N 2055-172)

This ASV set covers the 2005–2007 RCV rubber track loader from the R-Series with the operation and maintenance guide (ASVRC4OM, 6/05), Service Manual P/N 2055-172, Revision A (06/05), and Master Parts Manual P/N 2055-257 (9/07).

Text search, navigation and diagrams: Body text and parts lists are searchable; lettering within the circuit drawings and appended schematics is not. Five bookmarks use numeric filenames and link to the three manuals and two schematic sheets, without chapter-level navigation. Small schematic labels need zooming; some circuit-diagram pages have very faint linework.

• Undercarriage repair: Track removal and installation, tension adjustment, drive sprocket roller replacement, drive motor removal, and wheel-tube bearing and seal service.

• Hydraulic testing: Charge, auxiliary, lift-arm and drive pressure checks, load-sense adjustment, and Posi-Power troubleshooting and adjustment.

• Pumps and cylinders: Charge, auxiliary and tandem drive pump removal and installation, hydraulic cylinder inspection and resealing, and loader valve disassembly.

• Controls and electrical: Instrument panel functions, operator-presence interlocks, joystick and float-magnet replacement, wiring diagrams, and electrical attachment outlet connections.

• Lift arms and chassis: Lift arm linkage disassembly, pin and bushing replacement, fuel tank and sending-unit removal, and radiator/oil cooler servicing.

• Parts identification: Serial-specific valve and quick-attach assemblies, torsion axles, optional enclosed-cab and air-conditioning parts, and exploded assembly views.

Operators can use the operating guide for daily checks; the repair sections suit technicians equipped for hydraulic pressure testing and handling heavy loader components.

Hydrostatic Diagnosis and Hydraulic Repair

The Rexroth hydrostatic drive coverage identifies the Cat AA20VG45T tandem pump and MCR 5 drive motors. The Husko load-sense loader valve, pilot generation block and Posi-Power control are covered alongside high- and low-flow auxiliary troubleshooting.

The charge-pressure section distinguishes filter-line readings from pump readings. That distinction helps a technician identify filter restrictions before treating a higher reading as a pump-adjustment problem.

Cylinder repair covers rod, piston and bore inspection, seal orientation and reassembly. The assembly notes address seal damage from inadequate lubrication and leakage caused by scratched internal surfaces.

Undercarriage and Lift Arm Service

Separate wheel-tube procedures cover 10-inch ball-bearing assemblies and 14-inch tapered-roller assemblies. The documentation identifies track installation tool 0703-138 and seal puller 0700-162, while the lift arm section covers torque-arm and control-arm joints.

The drive sprocket procedure warns that excessive force when resetting the bearing cap can mushroom the bearing shaft.

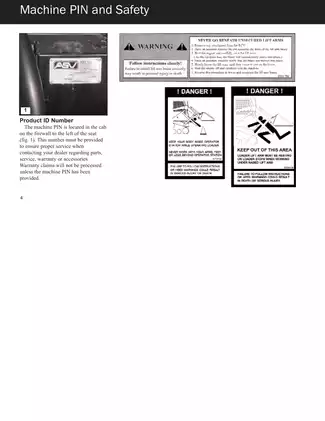

Work around raised lift arms and pressurized hydraulics requires the manual’s mechanical-support and pressure-relief precautions. Use appropriately equipped service personnel when the necessary tooling, lifting equipment or experience is lacking.

Operating Controls, Maintenance and Circuit References

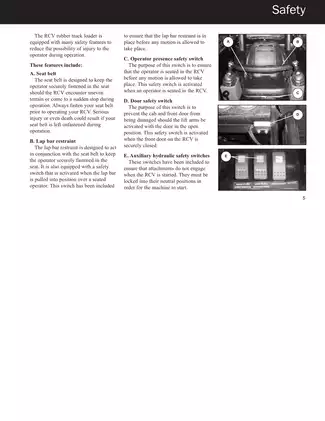

Standard joystick controls and the optional Case control pattern have separate operating descriptions and hose-routing diagrams. The operating guide explains the lap-bar and operator-presence interlocks, power quick-attach mechanism, lift arm braces and tilt-up ROPS/FOPS canopy.

Perkins 1104C-44 coverage centers on routine maintenance and machine-side troubleshooting; internal engine overhaul procedures are outside this set. Maintenance schedules cover fluid service, daily inspections, drive-belt tension and radiator/oil-cooler cleaning.

Circuit references include hydraulic charge, auxiliary and drive diagrams, loader-valve pressure ratings and pilot-generation solenoid-block views. Electrical attachment outlet connections accompany the shared RC-100/85/RCV electrical schematic 0201-217 and RCV hydraulic schematic 2055-211.

Serial Breaks and Replacement Parts

The parts catalog separates RSG 00101–00320 from RSG 00321–Current for the loader valve, quick-attach mechanism and lift arm linkage. “Current” means machines produced when the catalog was printed in September 2007.

Older and current bucket/tilt cylinders have separate service-parts listings and cannot be mixed as a working pair. The earlier quick-attach weldment has a documented round-pin conversion kit, 0403-011, helping identify the replacement arrangement before ordering parts.

Examples of Charge-Pressure and Fastener Specifications

These are a few of the service figures included in the RCV documentation.

The warm-engine charge-pressure procedure lists 700 +/- 50 psi at filter-line test port A with the engine at wide-open throttle, and 440 +/- 30 psi at pump test port B.

The general torque tables list 75 +/- 15 lb-ft for 1/2-inch fasteners and 2,700 +/- 300 Nm for M36 fasteners. These are general reference values; component-specific torque instructions are also provided.

Combined PDF and Included Schematic Sheets

One printable, English-language 188-page PDF combines the 56-page operation and maintenance guide, 94-page service manual, 36-page master parts manual and two appended large-format schematic sheets. Covers, three service-log pages and nine blank pages are already included in that total.
