2003 Cub Cadet 8354/8404 Service Manual
Complete factory service documentation for Cub Cadet Models 8354 and 8404 compact tractors — engines, transmission, hydraulics, brake system, and front axle assembly. 290-page manual with torque specs and detailed repair procedures.

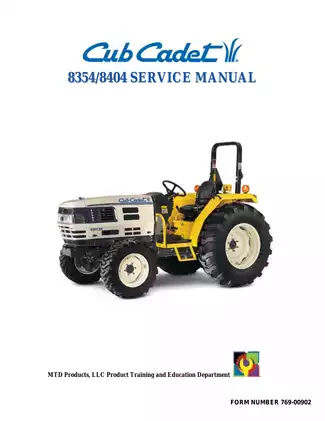

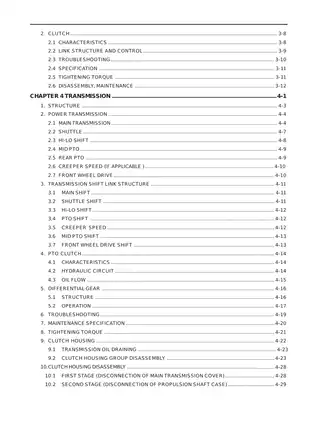

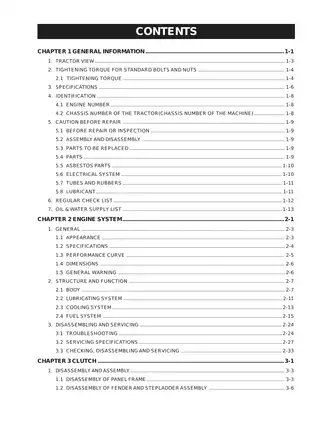

Manual Preview
Sample pages from the 2003 Cub Cadet 8354/8404 Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Cub Cadet 8354/8404 — 2003 Specialized Technical Primer | 8354/8404 Series Repository.
- Calibrated Displacement Data: 1,647 cc (100.5 cu in) and 1,999 cc (122.0 cu in) are specified as the engine cylinder volume Architecture.
- Rated Power Output: For maximum performance, 28.3 HP (8354) and 33.4 HP (8404) at 2,700 rpm represents the PTO horsepower Norms.
- Critical Engine Torque: The maximum gross engine power reaches 33.5 HP (8354) and 40.4 HP (8404) governing the crankshaft output Bounds.
- Universal Fuel Tank Capacity: The fuel tank requires 40 liters (10.6 U.S. gallons) establishing the diesel fuel storage Topology.
- Maximum Transmission Oil Volume: The transmission case requires 44 liters (11.6 U.S. gallons) is designed for full hydraulic circulation Matrix.
- Documented Ground Clearance: Ground clearance reaches 239 mm (8354) and 257 mm (8404) setting the minimum soil contact Standards.
Professional Workshop Service Manual & Technical Specifications
Complete Diagnostic Manual: 2003 Cub Cadet 8354/8404 Compact Tractor Service Manual Procedure-Database
Series-Validation: 8354 (2003), 8404 (2003) // Maintenance-Category: Multi-system service and diagnostic procedures // System-Coverage: Comprehensive engine, transmission, hydraulic, and electrical documentation.
| Component | Documentation Type | Coverage Details |
|---|---|---|
| Engine Systems | Complete reference | Specifications for compression, valve clearance, torque values documented |
| Transmission Assembly | Procedural guide | Synchromesh operation, gear configurations, maintenance data included |
| Hydraulic Operations | Detailed reference | Pressure specifications, circuit diagrams, component assembly sequences |
Following OEM groupings, the manual includes engine system procedures, covering cylinder head assembly, crankshaft alignment, and bearing clearance specifications. Steering component information is provided for hydraulic power steering unit structure, gear pump operation, and cylinder assembly details. Inspection guidelines are provided for front axle maintenance, differential gear function, and wheel alignment verification.
Rigorously requiring technicians to reference documented specifications, the service manual details transmission shift operations and linkage structure across main transmission, shuttle, and hi-lo shift assemblies. The document supplies comprehensive instruction sequences for clutch housing disassembly, intermediate case maintenance, and transmission case rebuild procedures. Alignment specifications are included for front wheel toe-in adjustment and caster angle settings. Hydraulic schematics are included for three-point lift control, power steering circuits, and auxiliary control valve configuration. Reference data is included for relief valve pressure settings, hydraulic cylinder bore dimensions, and PTO clutch modulator assembly operation.
The manual documents torque specifications for the main transmission cover, clutch housing bolts, bearing case fasteners, and differential gear assembly to ensure proper fastener integrity. Brake system documentation encompasses pedal adjustment procedures, cam lever operation, and disc brake maintenance parameters. Electric system sections detail starting motor operation, charging system circuits, glow plug controller function, and instrument panel gauge specifications. The document includes extensive wiring diagrams for ignition circuits, PTO safety interlocks, and preheating system operation.
Detailed tables provide specifications for engine displacement (1,647 cc for 3A165D; 1,999 cc for 4A200B), rated power output (28.3 HP to 33.4 HP at PTO), compression pressure ranges, and lubrication system requirements. Transmission capacity data documents forward/reverse speeds, synchronizer ring clearance values, and creeper speed gear ratios. Rear axle sections reference internal gear backlash specifications, planetary gear support dimensions, and thrust collar wear limits.
