Cub Cadet Models Covered & Key Technical Specifications

Models: 86, 108, 109, 128, 129, 149

Model Years: 1960s–1970s (1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979)

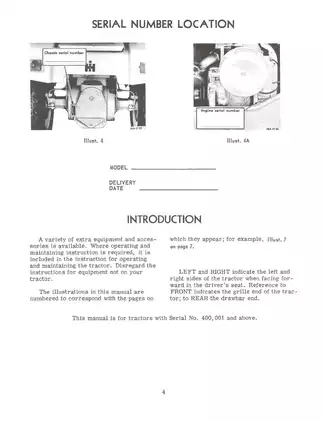

Serial Numbers: 400,001 and above


  • Engine: Kohler K161S (Model 86), K241AS (Models 108, 109), K301AS (Models 128, 129), K321A (Model 149)

  • Displacement: 16.23 to 31.27 cu in depending on engine model

  • Electrical System: 12-volt, negative ground, Delco-Remy motor-generator

  • Transmission: 3-speed manual (86, 108, 128) or hydrostatic drive (109, 129, 149)

  • Fuel Capacity: 8 qt

  • Engine Speed: 3600 rpm (full load); high idle no-load: 3780 rpm (Model 86), 3800 rpm (Models 108, 109, 128, 129, 149)

  • Wheelbase: 44 inches

Cub Cadet Manual Features & Selected Content Preview

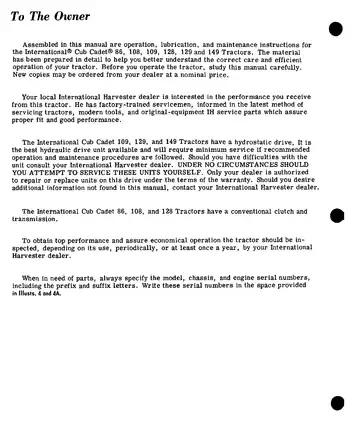

International Harvester's operator's manual (P/N 1 084 043 R1) covers operation, maintenance, and lubrication for the 1960s–1970s International Cub Cadet 86, 108, 109, 128, 129, and 149 tractors, serial number 400,001 and above, and their rotary mowers. This is Rev. 6, printed May 1973.

PDF Navigation and Page Count

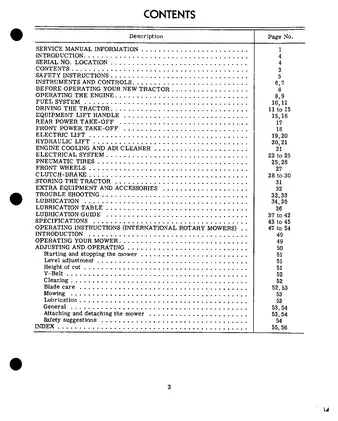

Text search and navigation — PDF text search is unavailable. Two embedded bookmarks open the additional front page and the original cover. The printed contents and index provide topic and page references.

The download is one printable English PDF with 59 pages total. This includes the 58-page tractor and rotary mower manual, with its original covers, memorandum, and warranty page, plus one additional front page.


Tractor Adjustments and Rotary Mower Setup

This selection of topics shows the maintenance and adjustment work covered. The manual also explains tractor storage and return to service, and how to release the hydrostatic drive for short-distance movement.

  • Engine and fuel system — Pre-operation checks, carburetor idle and high-speed mixture adjustment, dry-type air cleaner servicing, and cooling-fin cleaning.

  • Clutch, brakes, and steering — Clutch free travel, disc-brake equalization, hydrostatic-model brake adjustment, front wheel toe-in, and drag link adjustment.

  • PTO and lift equipment — Front PTO clutch wear-button clearance, rear PTO operation, electric and hydraulic lift controls, float lockout pins, and three-point hitch use.

  • Electrical maintenance — Motor-generator belt replacement and tension adjustment, spark plug servicing, battery care, lighting fuses, and safety starting switch operation.

  • Lubrication and troubleshooting — Hydrostatic transmission oil filter replacement, model-specific lubrication guides, and symptom-and-cause charts for starting, running, and power complaints.

  • Rotary mower service — Step-by-step instructions for attaching, removing, and leveling the deck, plus cutting-height adjustment, drive-belt care, blade servicing, and spindle-bearing lubrication.

This manual is intended for tractor owners and operators handling routine upkeep. The linkage and mower procedures suit readers familiar with basic mechanical adjustments.

Drive Controls, Brakes, and Lifts

Creeper-drive and rear PTO instructions apply to the gear-drive tractors. The rear PTO section covers stationary and moving operation and includes a spline-dimension drawing. Electric lift instructions cover the models other than the 149, which has a standard hydraulic lift.

Separate gear-drive clutch-brake and hydrostatic brake diagrams show pedal travel and engagement zones, so you can identify the correct adjustment for your tractor before starting a brake repair. Front wheel adjustment views identify the tie rod and drag link ball joints used to correct toe-in and uneven turning radius.

For internal hydrostatic drive repair, the manual directs owners to the dealer. The troubleshooting entry for hydrostatic creeping refers to a separate service manual for speed-control adjustment.

Kohler Engine Care and Electrical Maintenance

The troubleshooting charts distinguish hard starting, irregular running, knocking, overheating, and loss of power. They point to checks such as fuel flow at the shut-off valve, spark plug and breaker-point condition, and airflow around the cooling fins.

Electrical coverage includes the Delco-Remy motor-generator, voltage regulator, charge indicator, and starting interlock. A belt tension illustration shows where to check deflection. Prying against the motor-generator to tension the belt can damage its bearings. Compressed air can rupture the dry air cleaner's paper element.

Rotary Mower Decks and Blade Care

The mower section covers 38-, 42-, and 48-inch three-spindle decks with wide-oval runners and quick-attach mounting. The 48-inch deck uses progressively faster spindle speeds from left to right to aid cutting and discharge.

The mower support illustration identifies the deck supports and the main V-belt adjustment point. A spring-loaded tightener maintains tension on the separate spindle drive belt. The manual also covers preset lift stops, float lockout, blade sharpening and balance, and discharge direction in the mowing-pattern diagram.

Factory Specifications and Adjustment Examples

The specification tables give engine oil, transmission fluid, and fuel capacities, plus Kohler valve clearances, ignition timing, spark plug and breaker-point gaps, and electrical fuse ratings. Lubrication views identify the steering knuckles, front axle pivot pin, steering gear housing, and implement rockshaft. The schedules specify IH Hy-Tran fluid and identify where to use IH 251H EP grease or its specified equivalent.

For the front PTO clutch, the manual specifies approximately 1/32 in. between the wear button and thrust button with the clutch fully engaged. Front wheel toe-in is approximately 1/8 in., with the front measurement narrower than the rear. For the covered mower decks, the spindle nuts are retightened to 55–60 ft-lb when refitted.
