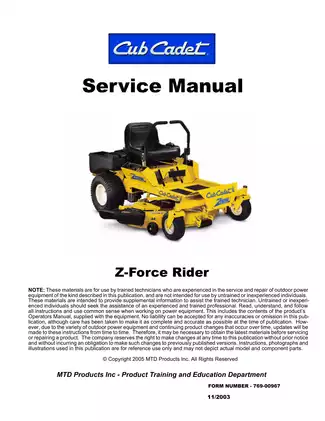

2003-2004 Cub Cadet Z-Force Rider Service Manual (34 P.)

Advanced Performance Training Manual: Mower Cub Cadet Z-Force Rider - Comprehensive 42" Deck / 44" Deck / 48" Deck Repair & Maintenance Manual (2003-2004) Reference-Archive

Model-Specs: Z-Force Rider 2003-2004, 42" Deck (18.5 H.P. Briggs and Stratton), 44" Deck (20 H.P. Briggs and Stratton), 48" Deck (22 H.P. Briggs and Stratton) // Repair-Classification: Hydrostatic Transmission / Deck Systems / Engine Logic // Service-Level: Complete Technical Reference for Certified Technicians.

Technical units are distributed across fifteen detailed sections that examine deck removal methodology, spindle bearing replacement sequences, integrated hydrostatic transmission adjustment protocols, and electrical safety relay architectures. The document establishes the functional hierarchy of the Z-Force transmission system, documents brake rotor and pawl inspection criteria, and presents the complete steering input shaft assembly service sequence.

Cooling system maintenance is addressed in the engine adjustments chapter, which covers the Kawasaki FH451V and Briggs and Stratton power plant configurations. Testing requirements are specified for electrical components including the regulator/rectifier output verification, stator voltage measurement protocols, and DC amperage evaluation using specialized diagnostic shunts. Clearance measurements are addressed for valve lash inspection on the two-cylinder Briggs and Stratton engines, with specification ranges provided for both intake and exhaust valve stem clearances. Special procedures are addressed for spindle housing bearing race replacement, including proper bearing installation orientation and seal lip positioning. Verification procedures are included for deck belt tensioning, PTO clutch engagement through dual reverse safety switches, and lap bar neutral position confirmation via the return-to-neutral mechanism.

Consistently establishing the technical sequence for component service, the manual documents torque specifications for engine valve cover fasteners to ensure proper assembly stress control. The document provides comprehensive guidance on control linkage adjustment for tracking correction, parking brake cable inspection protocols, and the relationship between tire pressure variance and blade height measurement accuracy. Illustrations and reference diagrams accompany procedural descriptions throughout all fifteen chapters, enabling technicians to identify component locations, understand assembly orientations, and recognize wear indicators during inspection stages.

The manual incorporates electrical system component identification sections detailing relay function, switch contact configurations, and circuit path logic for the engine ignition safety system. Separate service procedures address the deck lift shaft assembly removal, steering pivot bracket positioning, and caster wheel pivot bolt adjustment. Each major system section includes preliminary inspection checklists and post-service verification steps designed to confirm correct operation before the equipment returns to customer use.
