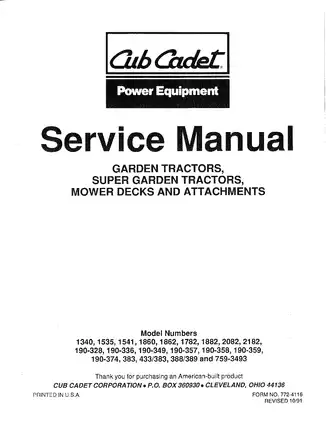

1990–1991 Cub Cadet 1340, 1535, 1541, 1860, 1862, 1782, 1882, 2082, 2182 Garden & Super Garden Tractor Factory Service Manual (P/N 772-4116)

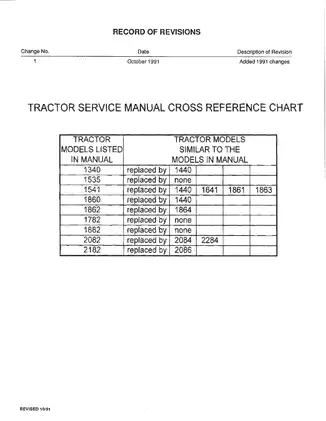

This Cub Cadet factory service manual covers the 1990–1991 garden and Super Garden tractors listed above, along with mower decks and selected attachments. The publication is Form No. 772-4116, revised October 1991.

Text search and diagram navigation: PDF text search is unavailable. Bookmarks are limited to the opening pages and do not provide chapter navigation. Small labels in the dense wiring diagrams require magnification.

• Hydrostatic drive repair: Pump and motor disassembly, inspection and reassembly, differential setup, rear transaxle and adapter housings, and charge-pump pressure checks.

• Model 1535 gear drive: Clutch and controls, creeper drive, gear-shift transmission, reduction housing, and engine-to-transmission alignment procedures.

• Steering and implement hydraulics: Hydraguide troubleshooting and overhaul, manual steering service, hydraulic lift controls, implement lift cylinders, and relief-valve adjustments.

• Electrical diagnosis: Model-specific wiring diagrams, starter-solenoid and reverse-relay tests, charging circuits, PTO controls, and electrical indicator harnesses.

• Engine and fuel systems: Maintenance schedules, engine removal and installation, mounts, mufflers, radiator access, fuel tanks, and fuel-pump replacement.

• Chassis, brakes and PTO: Body panels, front axle assemblies, external dual-disc brakes, brake calipers, PTO clutch removal, and air-gap adjustment.

• Mowers and attachments: Deck spindle and gearbox repair, rear PTO and 3-point hitch installation, and front hydraulic outlet kit installation.

This manual suits mechanics familiar with commercial power equipment service; its overhaul work assumes an equipped shop, measuring instruments, and the specified holding fixtures.

Serial Breaks and Drive Configurations

Drive-line sections distinguish Model 1541 serials 800,350–800,533 and Model 1860 serials 800,462–800,595 from their other configurations. Model 1541 has separate differential, hydrostatic transmission, and hydraulic lift procedures from 816,509; Model 2182 has revised radiator instructions from 816,536.

Additional changes address fuel pumps from 811,501 and battery trays and heat baffles from 811,672 on the applicable models. These references help you select the correct assembly instructions before starting a repair.

Hydrostatic Transmission and Hydraguide Overhaul

Internal transmission coverage includes piston and cylinder-block inspection, valve plates, swashplates, trunnion shafts, differential bearing preload, and backlash. The Ideal Ring Gear Tooth Contact Pattern illustrations support differential setup.

Hydraguide procedures cover the valve plates, metering package, commutator, rotor, stator, and seals. The Hydraguide Steering System and Component Alignment Groove Illustration show circuit routing and component orientation.

The steering instructions warn that clamping the metering package in a vise can damage its components. Hydrostatic reassembly notes also identify the risk of transmission damage from rotating the shafts at the specified assembly stage.

Electrical Fault Finding

Electrical schematics separate cranking, charging, normal and safety shutdown, and PTO start/run circuits by model. The Engine Preheat, Model 1782 diagram covers the diesel starting circuit, while indicator harness drawings identify the instrument connections.

The solenoid test chart helps distinguish a defective solenoid from battery, starter, wiring, or grounding faults before replacement. A separate reverse-relay test addresses a PTO that drops out when its switch returns to RUN.

Maintenance, Engine Access and Brake Coverage

Dealer preparation checklists and model-specific lubrication guides accompany Kohler and Kubota maintenance schedules. Engine removal, mounting, cooling-system access, and fuel-system work are included; internal engine repair requires the separate engine service manuals listed in Appendix A.

The PDF omits printed pages 1-7 and 1-8, which contain the Model 1862 and Model 1782 specification tables.

Brake linkage and caliper disassembly, inspection, and reassembly remain covered. However, printed pages 6-3 and 6-4, containing the brake-adjustment section, are missing.

Mower Decks, Attachments and Service Bulletins

Deck repair covers models 190-328, 190-336, 190-357, 190-358, 190-359, and 190-374. The 42-inch 190-349 rear PTO mower also has gearbox and driveline procedures. The Properly Aligned Drive Belt illustration and belt-failure guidance explain wear associated with pulley alignment.

Attachment sections cover rear PTO kit 433 with hitch 383, hitch kits 388/389, and front hydraulic outlet kit 759-3493.

Service bulletin CC-188 addresses slow reverse and cam pivot bracket adjustment. CC-192 and CC-193 cover gear-drive alignment with tool 759-3426, relevant to Model 1535 clutch-disc replacement.

Workshop Specifications and Service Tools

Reference material includes fluid capacities, component inspection limits, adjustment specifications, torque tables in customary and metric units, and mandatory replacement-part lists. Appendix B identifies hydraulic test gauge 759-3593, steering spring tool 759-3596, and holding-fixture drawings for transmission and steering work.

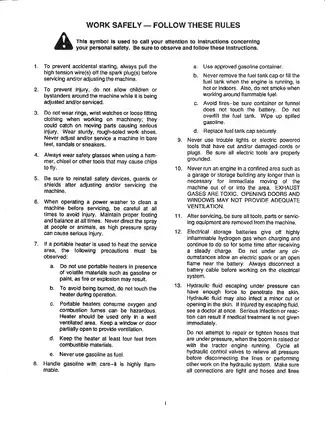

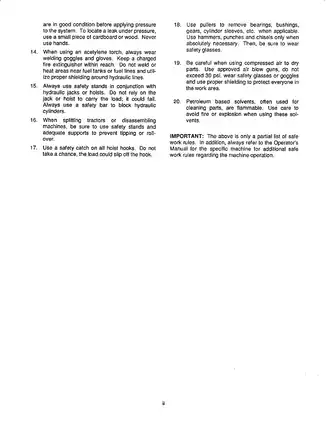

Ensure you review the factory safety protocols detailed in the introductory chapters before initiating any major mechanical work.

English PDF and Included Pages

The download is one English-language, 422-page PDF: 421 pages in the manual portion plus one supplier title page. The manual portion already includes four pages of service bulletins CC-188, CC-192, and CC-193, along with 17 blank or intentionally blank pages; these are all included in the total.
