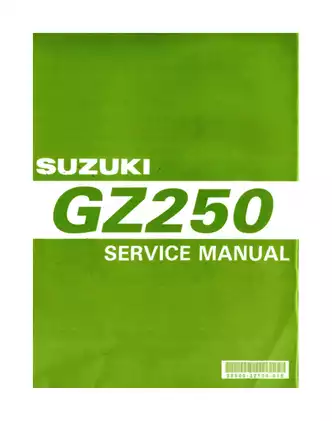

1999–2007 Suzuki GZ250 Marauder Factory Service Manual (P/N 99500-32100-01E)

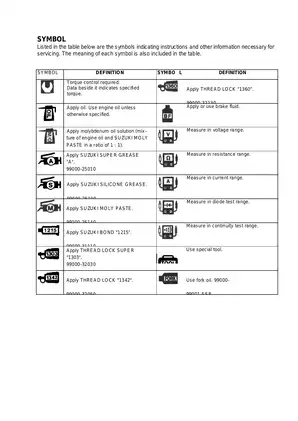

This Suzuki GZ250 Marauder service manual (1999–2007), P/N 99500-32100-01E, covers scheduled maintenance, fault diagnosis, and component repair. The factory reference configuration is the GZ250X, with market-specific carburetor and electrical data.

Text search and wiring detail: Most service text is searchable, but lettering within the wiring diagrams and some other illustrations is not. There are no embedded PDF bookmarks. Small wiring labels require zooming and remain soft in places.

• Engine repair: Engine removal and reinstallation, crankcase separation, cylinder-head overhaul, valve-guide and valve-seat service, camshaft timing, and crankshaft inspection.

• Transmission and clutch: Gearset disassembly, shift-fork clearance checks, clutch-plate inspection, release adjustment, balancer-shaft inspection, and starter-clutch service.

• Fuel and lubrication: Mikuni BSR32SS carburetor overhaul, float-height adjustment, fuel-valve inspection, oil-pressure testing, and filter service.

• Brakes and chassis: Front caliper and master-cylinder repair, rear drum-brake service, fork overhaul, steering-bearing replacement, and swingarm inspection.

• Electrical diagnosis: Charging-system tests, digital ignitor and pick-up coil checks, starter-motor repair, and side-stand/ignition interlock troubleshooting.

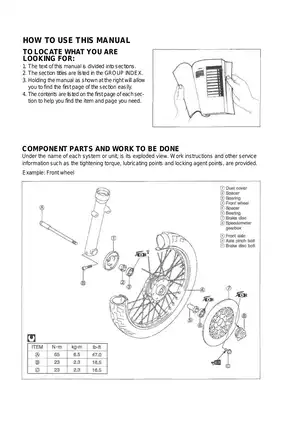

• Service references: Market-specific wiring diagrams, troubleshooting charts, exploded views, wear limits, fluid capacities, adjustment data, and chassis/general fastener torque tables.

Suzuki wrote this manual for people who already have the knowledge, skills, and tools, including special tools, required to service its motorcycles.

Maintenance and Internal Engine Repair

Periodic maintenance covers valve clearance, spark plugs, air-cleaner care, throttle and starter-plunger cables, clutch-lever adjustment, drive-chain tension, and brake-fluid replacement intervals. Compression and oil-pressure checks connect test results with possible mechanical or lubrication faults.

Internal repair data includes cylinder-bore and piston-ring-groove measurements, camshaft-journal wear limits, and connecting-rod checks. The in-frame component list identifies work that can be done without removing the engine.

Specified equipment includes crankcase separator 09920-13120 and crankshaft installer 09910-32812. The crankshaft installation cautions explain how hammering the assembly into place can disturb its alignment.

Mikuni Carburetor and Lubrication Service

The BSR32SS tables distinguish U.S./Canadian 13F3 and California 13F4 carburetors from 13F0 and 13F2 versions used in other markets. Matching the stamped carburetor ID to its table helps select the appropriate service data.

Carburetor procedures cover the diaphragm, needle valve, float, and capped pilot screw on E-03, E-28, and E-33 models. Cleaning cautions explain how wire can damage jets and internal passages.

The Engine Lubrication System Chart accompanies oil-filter and sump-filter coverage. Oil-pump removal and installation are documented; the pump assembly is not intended for disassembly.

Brake, Fork, and Steering Service

Brake inspection extends to disc thickness and runout, caliper seals, master-cylinder components, and rear drum and shoe wear. Fork service covers seals and oil-level adjustment, while steering work includes bearing-race replacement and final play checks.

Swingarm needle-bearing replacement is covered separately from rear shock-absorber inspection and replacement. The rear shocks are nonserviceable assemblies. Chassis geometry, suspension preload, and tire-pressure data round out these sections.

Follow the manual's brake-system precautions; contamination and incorrect assembly can impair braking.

Charging, Ignition, and Starting Faults

Electrical procedures cover battery leakage current, generator no-load output, stator resistance, and regulator/rectifier testing. Digital ignitor checks and ignition-coil/pick-up-coil peak-voltage tests specify multi circuit tester 09900-25008 and, for peak readings, a peak-voltage adapter.

Comparing pick-up coil signals at the generator and ignitor connections helps distinguish a wiring fault from a generator-side fault. Ignition timing, battery specifications, and fuse ratings are also included.

Separate wiring diagrams cover E-03/E-28/E-33, E-24, and other markets. The starter/side-stand interlock schematic supports switch and relay diagnosis. Cable Routing, Front Brake Hose Routing, and Carburetor Hose Routing drawings show cable paths, hose positions, and clamping points.

Torque References and File Coverage

Chassis and general fastener torque charts supplement the torque callouts within individual repair procedures. Printed page 7-23, indexed as the start of the tightening-torque section, is missing from this file.

Printable PDF and Page Breakdown

One printable English-language PDF contains 230 pages total: 225 technical and section-index pages, one cover, three introductory pages, and one publication page. The total already includes the unnumbered continuation and illustration pages; there are no separate supplements.
