Sea-Doo 2004 GTI, GTX, RXP, XP DI & 3D RFI Service Manual Set (P/N 219 100 192)

The 3D supplement must be used with the included main shop manual. It documents the model-specific differences and refers common procedures back to the base publication.

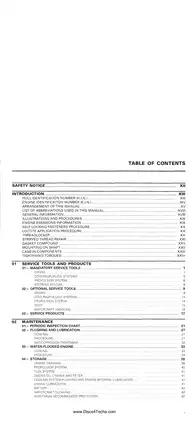

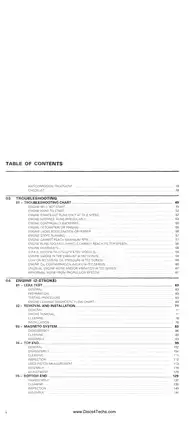

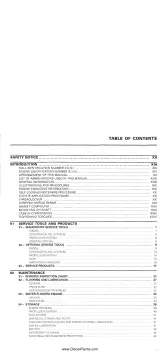

PDF Bookmarks, Diagram Detail, and Page Count

Navigation and wiring labels: The technical content is not text-searchable. Embedded PDF bookmarks cover the main sections of both publications and individual wiring diagrams. Small labels on the checked schematics require zooming; some XP DI connector-face pin numbers remain faint when enlarged.

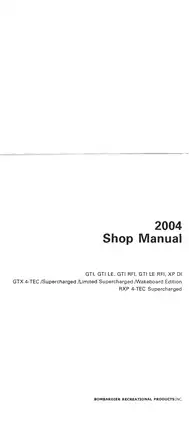

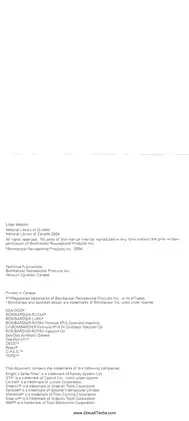

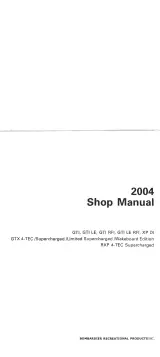

The ZIP download contains one printable, 928-page PDF combining both publications. Their page counts already include the cover/title and copyright pages, plus 31 blank separator pages in the main manual and 12 in the supplement.

Rotax Engines, Electronic Diagnosis, and Jet-Drive Repair

The following selected repair and diagnostic topics outline the coverage. Further examples include instrument testing and electrical connector servicing.

• 2-stroke engines: Leak testing, engine removal, magneto service, top- and bottom-end disassembly, inspection and reassembly, rotary-valve timing, and tuned-pipe repair.

• 1503 4-TEC engines: Intake and exhaust service, supercharger inspection and repair, intercooler leak testing, PTO/magneto work, cylinder-head repair, timing-chain installation, and engine-block service.

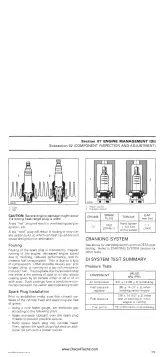

• Engine management: Separate RFI, DI, and 4-TEC diagnosis, fault-code charts, fuel and air pressure tests, injector checks, TPS resetting, ignition synchronization, and module replacement.

• Maintenance and cooling: Periodic inspection, flushing, lubrication, water-flooded engine recovery, storage preparation, cooling-circuit leak testing, draining, and coolant-pump, thermostat, and rotary-seal service.

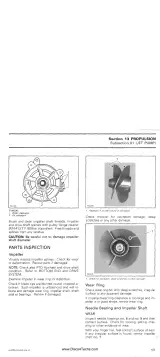

• Propulsion: Jet-pump removal and internal repair, bearing/seal inspection, pump pressure testing, drive-shaft alignment, reverse-system service, and Variable Trim System work.

• Steering and body: O.P.A.S. repair, XP DI direct-action suspension, hull/body repair, and 3D steering-pole work, alignment, and model-specific body hardware.

• Electrical reference: Charging and starting diagnosis, DESS key programming, wiring diagrams, connector pinouts, diagnostic flowcharts, and exploded and sectional assembly views.

These publications were written for watercraft mechanical technicians already familiar with Sea-Doo service procedures and equipped with the specified hand tools and special service tools.

2-Stroke Mechanical Repair and Fuel Systems

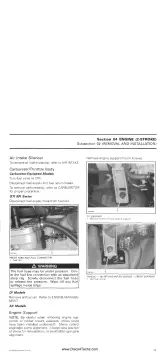

The 717 and 787 RFI sections distinguish rotary-valve work from the reed-valve 947 DI engine. Step-by-step procedures cover engine removal, internal disassembly, top-end measurement, crankshaft and counterbalance inspection, reassembly, and model-specific adjustments.

The engine leakage diagnostic flow charts separate cooling-system, crankcase, and rotary-valve-shaft faults before teardown. Carburetor service and oil-injection pump adjustment and operational checks are also documented.

RFI coverage follows the fuel pump, regulator, injectors, ECU/MPEM, RAVE solenoid, and sensor network. The DI section adds the air compressor and its repair procedures, air/fuel rail, direct injector, quick fuel-pressure checks, compressor-pressure testing, and DI-specific fault logic.

The 947 DI bottom-end cautions explain how excess crankcase sealant can block the air-compressor lubrication nipple and cause serious compressor damage.

4-TEC Internal Service and Supercharger Work

Supercharged models receive dedicated slipping-moment inspection, clutch-component checks, shaft removal, bearing installation, and final verification procedures. The dry-sump lubrication chapter covers both oil pumps, oil-pressure diagnosis, filter, cooler, and separator.

Cylinder-head and engine-block instructions cover the camshaft, valves, timing chain, crankshaft/balancer indexing, pistons, and connecting rods. The cautions address valve-timing errors that damage engine components, plus supercharger bearing cage orientation, hammering, and incorrect press loads that can shorten bearing life.

B.U.D.S. Diagnosis and 3D-Specific Systems

VCK/B.U.D.S. procedures include self-diagnostics, sensor and connector-circuit testing, TPS setting, ignition/TDC synchronization, ECM/MPEM replacement, and safety-lanyard programming. The separate system chapters help technicians select the matching tests and reset procedures for each engine-management configuration.

The 3D material adds Off-Throttle Assisted Steering (O.T.A.S.) tests and throttle-cable adjustment, Vehicle Control Module (VCM) diagnosis, charging and starting circuits, DESS, drive-system differences, and trim-linkage service. Its VCM checks address power cut-off, indicator lights, the electric bilge pump, and assisted steering.

Workshop Tools, Pinouts, and Factory Data

The tool listings identify the VCK P/N 529 035 981, engine leak tester kit P/N 295 500 352, and supplementary RFI/DI leak-test kit P/N 295 500 780. Mandatory and optional tools include model-specific pullers, alignment fixtures, pressure gauges, crimping tools, and supercharger fixtures.

References include the complete 4-TEC electrical-system overview, DI AMP connector pinout, 4-TEC engine-connector pinout, and 3D VCM 32-pin and 7-pin connector views. Separate GTI, XP DI, GTX/RXP, and 3D wiring diagrams support circuit tracing; exploded and sectional views show engine, supercharger, pump, steering, suspension, and body assemblies.

Model-family technical-data chapters supply component-specific torque tables, approved fluids, capacities, pressure-test specifications, wear limits, clearances, sensor resistance values, impeller specifications, and adjustment data for the corresponding repair.

Observe the manual’s precautions for pressurized fuel and air, starting-system electrical work, and rotating jet-pump and drive-shaft components.

Selected Supercharger and Oil-Pressure Test Values

The supercharger slipping-moment inspection specifies 7–12 N·m (62–106 lbf·in) for the counterclockwise check.

For 1503 engines using the recommended oil, the idle oil-pressure minimum at 80°C (176°F), measured at the pressure-switch location, is 160 kPa (23 PSI) for naturally aspirated engines and 228 kPa (33 PSI) for supercharged engines. Separate cylinder-head test-port tables have different specifications.
