2003 Sea-Doo GTI, GTI LE, GTI LE RFI, GTX DI, XP DI, RX DI, LRV DI & GTX 4-TEC Series PWC Shop Manual (P/N 219 100 160)

This Bombardier 2003 Sea-Doo Shop Manual (219 100 160) covers GTI, GTI LE, GTI LE RFI, GTX DI, XP DI, RX DI, LRV DI, and the GTX 4-TEC series, including Supercharged, Supercharged Limited, and Vans Triple Crown Edition variants.

• Maintenance: Periodic inspection charts, flushing and lubrication, storage preparation, and engine-specific water-flooded engine recovery procedures.

• Engine repair: Engine removal and installation, top- and bottom-end overhaul, rotary valve timing, cylinder-head and engine-block service, and supercharger repair.

• Fuel and engine management: Carburetor service, RFI, DI, and 4-TEC fault diagnosis, fuel-pressure tests, air-compressor checks, and throttle position sensor (TPS) adjustments.

• Electrical systems: Ignition and charging tests, starter overhaul, Digitally Encoded Security System (DESS) diagnosis and programming, instrument checks, wiring diagrams, and connector pin-out views.

• Propulsion: Jet-pump overhaul, wear-ring replacement, driveshaft and PTO-seal service, engine-to-pump alignment, reverse-system repair, and Variable Trim System (VTS) work.

• Steering, suspension, and body: O.P.A.S. service, steering alignment, XP DI direct action suspension, and model-specific hull and body repair.

Written for watercraft mechanical technicians already familiar with Bombardier service procedures, this manual assumes the use of proper hand tools and special service tools.

Engine Repair and Supercharger Service

Two-stroke engine work covers piston and crankshaft inspection, RAVE service where fitted, and rotary valve timing for the 717 and 787 RFI. Engine-leakage diagnostic flowcharts distinguish cooling-system, crankcase, and rotary-valve-shaft checks. The 717's common intake manifold prevents individual cylinder leak testing.

The 1503 4-TEC chapters cover the camshaft timing drive, rocker arms, valve guides, and internal engine-block components. Hydraulic lifters require no valve-clearance adjustment. Supercharged coverage extends to dismantling, drive-component inspection, and the supercharger slipping-moment test.

Component-specific tightening instructions, class 8.8 fastener torque tables, bearing clearances, and wear limits support the repair procedures.

Fuel Management, Electrical Tests, and Diagnostic Tools

Separate RFI, DI, and 4-TEC sections cover sensor resistance checks, fuel delivery, and closed-TPS adjustments. DI procedures also address throttle-body synchronization and the resets required after Multi-Purpose Electronic Module (MPEM) replacement. The 4-TEC fuel-delivery diagnostic flowchart links pressure checks with pump, injector, and electrical testing.

Connector pin-out views and sensor test values help distinguish wiring and input faults before replacing an MPEM or ECU. Wiring coverage includes a GTX 4-TEC diagram for models with an auxiliary DESS module.

Diagnostic equipment: The VCK, P/N 529 035 844, works with B.U.D.S. for electronic diagnosis and programming. RFI procedures also describe an MPEM programmer; the MPEM programmer does not work on 4-TEC models, whose computer diagnostics use VCK/B.U.D.S.

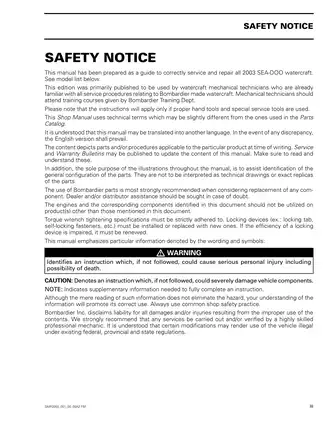

Follow the manual's safety precautions for pressurized fuel systems and running-engine tests.

Cooling, Lubrication, and Flooded-Engine Recovery

Cooling diagrams distinguish the 4-TEC closed-loop engine circuit from its open-loop exhaust circuit. Thermostat and coolant-pump service sit alongside lubrication procedures for oil-pressure testing, pressure and scavenge pumps, the oil cooler, and the oil separator.

Repair cautions: Impact installation can damage the ceramic rotary seal in the 4-TEC water/oil pump. In the water-flooded 947 DI procedure, the compressor pressure-hose warning concerns bending the compressor's connecting rod during cranking.

Jet Pump, Steering, and Hull Work

Jet-pump exploded views distinguish oil-lubricated assemblies from the GTX 4-TEC greased-bearing pump. The drive-system section covers alignment shims and PTO sealing as well as driveshaft removal and installation.

O.P.A.S. (Off-Power Assisted Steering) coverage includes side vanes, cylinders, and the control valve. The XP DI has a separate direct action suspension procedure. Hull and body work extends to seat covers, bumpers, gelcoat defects, and fiberglass laminate fractures.

Valve-Seat Limits and Coolant Capacity: A Preview

For the GTX 4-TEC series, intake valve-seat contact width is specified at 1.1–1.3 mm nominal (new), with a 1.6 mm wear limit.

Across the covered GTX 4-TEC variants, total cooling-system coolant capacity is 5.5 L.

Search, Bookmarks, and Printable PDF Contents

Text search and diagram detail: Most main text is searchable, and embedded bookmarks lead to the main chapters. Wiring-diagram lettering and some illustration labels are not reliably searchable. Small wiring labels require zooming.

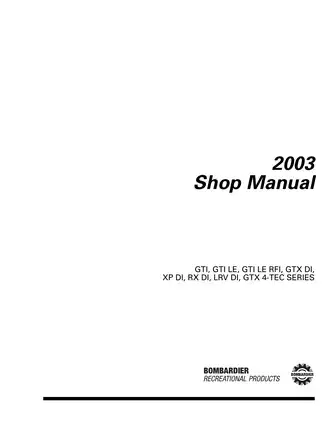

One printable English-language PDF, 777 pages total, 48.15 MB, including the outer cover and title page (2 pages) and two ruled notes pages.
