2004–2005 Brother MFC215C / MFC620CN Printer Service Manual (SM-FAX028)

Brother service manual SM-FAX028, dated February 2005, covers the MFC, DCP, and FAX inkjet models listed above, including MFC215C and MFC620CN. It combines operating theory with internal repair procedures, replacement adjustments, and troubleshooting information.

• Print engine and ink system: Head/carriage and ink refill assembly removal, maintenance-unit service, ink absorber replacement, and specified lubrication points.

• Scanner and ADF: Scanner-unit and document-feeder disassembly, CIS checks, sensor testing, and model-specific harness and flat-cable routing.

• Replacement adjustments: Head property-data entry, paper-feed correction, vertical print-line alignment, near-edge margin adjustment, and CIS white-level calibration.

• Fault diagnosis: Machine and communications error tables, print-image troubleshooting, equipment logs, and checks organized by defective component and resulting symptom.

• Electronics and firmware: Main PCB replacement, EEPROM initialization, destination customization, firmware-loading procedures, and firmware switch settings.

• Drawings and test patterns: Disassembly Flowchart, Sensors and Actuators Locations, wiring diagrams, MJ PCB and power-supply schematics, and print-check patterns.

This manual is written for service personnel carrying out internal repairs and maintenance-mode adjustments on the covered machines.

Print Engine and Waste-Ink Diagnosis

The operating-theory sections explain tube-fed ink delivery, piezoelectric actuation, purge switching, and head capping. Head/carriage and ink refill assembly views show the component layout, while paper-path illustrations connect the feed mechanism to its sensors and drive components.

The equipment log distinguishes purge and flushing counts, either of which can trigger MACHINE ERROR 46. That distinction helps identify whether the ink absorber box or flushing case is the relevant service item before selecting the replacement and counter-reset procedure.

The manual warns that interrupting the automatic head-locking operation can leave the head/carriage unit unusable. It also explains why mixing pigment-based black ink with dye-based color ink can produce residue that clogs nozzles, filters, and maintenance-unit passages.

Disassembly and Replacement Adjustments

The disassembly flowchart identifies access routes to the target assembly. Removal and reassembly coverage extends to the scanner, ADF, control panel, main PCB, ink absorber box, engine unit, and maintenance mechanism, with screw specifications and lubrication locations.

Head/carriage procedures distinguish the older FFC-sponge arrangement from the newer FFC-support design. The old-type head/carriage unit is handled together with its carriage PCB and flat cables; conversion to the newer type also requires matching upper and head covers.

Replacement work continues beyond mechanical installation. The head and main PCB sections specify property-data updates, paper-feed correction, alignment, and margin checks. Main PCB replacement also calls for ink absorber replacement and EEPROM setup. Scanner replacement includes CIS-type setting where applicable.

The safety sections address AC and telephone-line isolation, high-voltage areas, and ESD protection for boards and the head/carriage assembly.

Maintenance Software and Electrical Reference

PC-based adjustments require the BHL2-Maintenance Printer driver and utilities such as BrUsbsn.exe and FILEDG32.exe. The documented setup uses legacy Windows systems; the maintenance programs, firmware, and adjustment files are separate prerequisites, rather than software supplied inside this PDF.

Some MFC210C U.S.A./Canadian procedures require temporarily loading the full maintenance program because the embedded program supports fewer functions.

The electrical appendices provide inter-board wiring diagrams and regional circuit diagrams for the MJ and power-supply PCBs. Maintenance-mode checks cover the LCD, control panel, sensors, and CIS travel. The Paper Feeding Check Pattern supports separate assessment of the feed and ejection rollers.

Examples from the Scanner and PCB Torque Table

These two entries are a small selection of the assembly specifications included in the manual.

The scanner cover’s Taptite cup B M3x10 screws are specified at 0.59 ±0.1 N·m. For the main PCB shield, the Taptite cup S M3x6 screw is specified at 0.39 ±0.1 N·m. The table distinguishes screw types and mounting locations rather than assigning one torque to every fastener.

Text Search, Bookmarks, and Diagram Detail

Search and drawing navigation: Text in the main chapters is searchable, and 180 embedded bookmarks cover chapters, procedures, and appendices. The wiring drawings and power-supply schematics have no searchable text. Small connector and component labels in the checked diagrams are readable when enlarged.

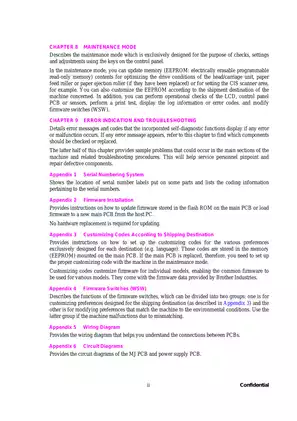

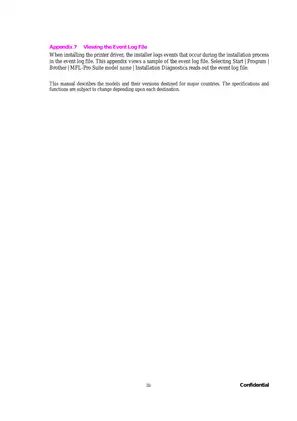

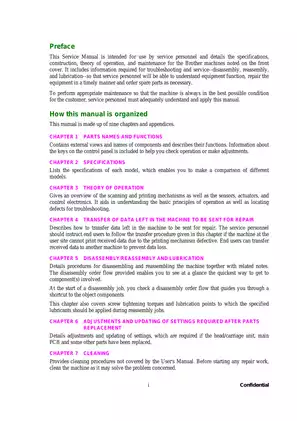

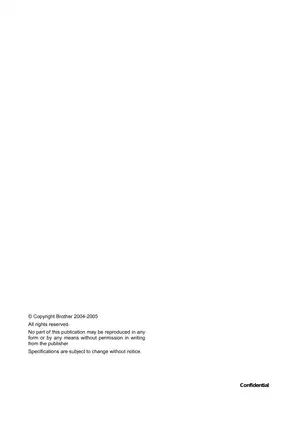

The download contains one printable, English-language 466-page PDF, including all nine chapters and seven appendices. The total already includes the title and copyright pages (2 pages), preface and safety material (7 pages), chapter dividers (9 pages), appendix dividers (7 pages), and publication back cover (1 page).
