Sea-Doo 1993 SP, SPI, SPX, XP, GTS, GTX & Explorer Shop Manual (P/N 219-100-008)
305 Pages • 1 Printable PDF (English) • Download
Sea-Doo Models Covered & Key Technical Specifications
SP, SPI, SPX, XP, GTS, GTX, Explorer
Models & Model Codes:
SP — 5806
SPI — 5808
SPX — 5807
XP — 5852
GTS — 5813
GTX — 5861
Explorer — 5820
Sub-models / Variants: 587 Engine (SP, SPI, SPX, GTS, GTX, Explorer), 657 Engine (XP); SPX first-production fuel-system configuration
Trade Names: Sea-Doo, Bombardier, Rotax
Model Year: 1993
-
Engine cooling system: Open circuit - direct flow from jet propulsion unit (no thermostat)
-
Rotary valve cut-out angle: 147 degrees
-
PTO flywheel assembly torque: 110 N•m (81 lbf•ft)
-
Crankcase halves assembly torque: M6 screws: 10 N•m (88 lbf•in); M8 screws: 24 N•m (17 lbf•ft)
-
Cylinder head screw torque: 24 N•m (17 lbf•ft)
-
Ignition timing system: Capacitor Discharge Ignition (CDI) with single or double coil configuration
-
Cooling system overheat alarm threshold: 96–99°C (205–210°F)
-
Transmission / Drive: Direct drive with crown-spline coupling (all covered models)
Sea-Doo Manual Features & Selected Content Preview
This Bombardier Shop Manual (P/N 219-100-008) covers 1993 Sea-Doo SP, SPI, SPX, XP, GTS, GTX, and Explorer watercraft as manufactured, excluding later dealer modifications.
File Format and Readability

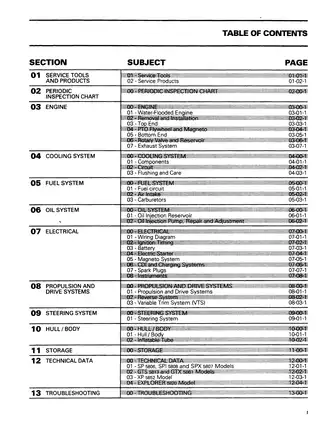

Search, navigation, and diagrams: PDF text search is not available, and there are no embedded PDF bookmarks. The printed contents page lists the manual sections. Small wiring labels and wire-color codes require zooming; the sideways wiring pages also benefit from rotating the view.

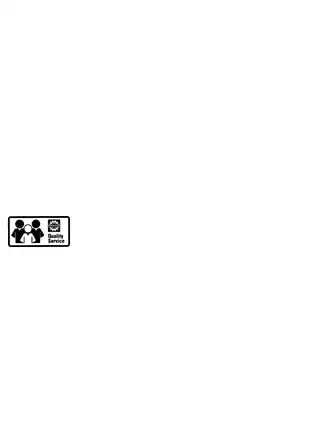

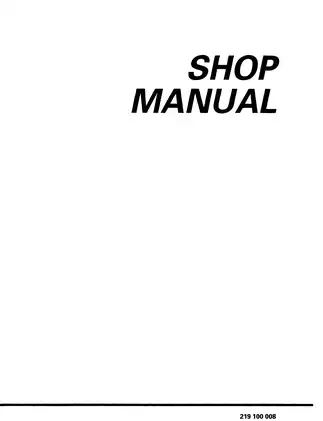

Supplied as one printable 305-page PDF in English, organized into 13 sections. The total includes three unnumbered front pages—the cover, title, and service-logo page—and 19 blank pages.
Engine, Electrical, and Jet Pump Repair Coverage
The following selected repair topics outline the manual’s coverage. Other examples include battery activation and GTX speed-sensor testing.
-
Engine repair: Rotax 587 and 657 disassembly, top-end and bottom-end inspection, crankcase sealing, and rotary valve service, supported by exploded assembly views.
-
Fuel and oil injection: Diaphragm carburetor overhaul, fuel-system leak testing, throttle synchronization, and oil injection pump adjustment, bleeding, and testing.
-
Electrical diagnosis: CDI and charging-system tests, magneto service, electric starter overhaul, and model-specific wiring diagrams for tracing circuit faults.
-
Jet pump and controls: Impeller removal, drive shaft inspection, engine-to-jet-pump alignment, steering adjustment, reverse-system service, and variable trim system (VTS) repair.
-
Cooling and maintenance: Cooling circuit schematics, flushing procedures, water-flooded engine recovery, periodic inspections, and storage preparation for the covered watercraft.
-
Hull and body: Fiberglass and gelcoat repair, refinishing procedures, and Explorer inflatable tube leak testing, patching, and valve service.
Written for watercraft mechanics already familiar with Bombardier service procedures, this manual assumes access to appropriate hand tools and the specified special service tools.
Rotax Engine Repair and Specifications
The XP 5852 uses the 657 engine; the other covered models use the 587. Engine chapters detail cylinder and piston inspection, crankshaft checks, bearing replacement, and crankcase assembly, with tolerance charts covering cylinder taper and piston ring end gaps.
Top-end and flywheel service can be performed with the engine in the hull. Step-by-step instructions cover engine removal and reinstallation for bottom-end and rotary valve shaft work. Defective crankshaft assemblies are referred to a specialized shop for repair or replacement.
Rotary valve timing drawings distinguish the SP, SPI, and GTS settings from those for the SPX, XP, GTX, and Explorer. Component-specific torque tables accompany assembly procedures. Exhaust coverage includes manifold removal and installation, plus TIG welding and leak testing for cracked tuned pipes.
Carburetors and Oil Injection
The SP, SPI, and GTS use a single carburetor; the SPX, XP, GTX, and Explorer use twin carburetors. The fuel sections distinguish SPX first-production models and the Explorer by their fuel pickup, level-sensing, and carburetor-linkage arrangements.
Those distinctions help match the fuel-system and synchronization procedures to the installed configuration. The manual also warns that XP carburetors have different jetting: fitting the wrong carburetors can damage the engine.
Oil injection coverage extends beyond cable adjustment to pump synchronization, system bleeding, pressure testing, and pump operation testing.
Cooling, Inspections, and Storage
The cooling chapter describes an open, jet-pump-fed total loss system without a thermostat. Its circuit schematics identify hose routing and cooling-water flow through the engine and exhaust components.
Periodic inspection charts separate initial service from recurring checks and include saltwater-use requirements. Storage procedures address internal lubrication, antifreeze protection, corrosion prevention, battery care, and Explorer tube storage.
Ignition, Starting, and Electrical Tests
Separate test procedures address single and double generating-coil systems. Ignition output checks specify the Bombardier ignition tester, P/N 295-000-008.
Ignition timing views, starting-system troubleshooting charts, and Multi-Purpose Electronic Module (MPEM) test tables support diagnosis. Electrical work requires the manual’s precautions against ignition voltage and sparks near fuel vapors.
Jet Pump, Drive Shaft, and Steering
Pump repair includes impeller and wear-ring inspection, bearing and seal replacement, and pressurization testing. Engine alignment procedures specify alignment tool P/N 295-000-089.
The drive shaft installation cautions explain how a folded double-lip seal can lead to seal-carrier bearing failure. Troubleshooting also addresses cavitation, loss of propulsion, and abnormal pump noise.
Steering coverage includes handlebar-to-nozzle alignment. Reverse-gate and cable procedures cover the GTS, GTX, and Explorer, while VTS sections address mechanical service and XP electrical checks.
Hull Repair and Explorer Inflatable Tube
Body repair sections cover fiberglass damage, gelcoat work, and PPG refinishing systems. Explorer procedures extend to tube patches, grab-handle replacement, and lateral bumper bonding; major tube repairs, including rear bumper or cord replacement, are reserved for the factory.
A Preview of Top-End Inspection Limits
For both engine types, the top-end inspection tables list a cylinder taper wear limit of 0.08 mm and a piston ring end-gap wear limit of 1.0 mm. These accompany the cylinder measurement and ring inspection procedures.
New-part cylinder-to-piston clearance differs by engine: 0.05–0.07 mm for the 587 and 0.06–0.09 mm for the 657. The tables keep these assembly clearances separate from the wear limits used to assess existing components.
