1994 Sea-Doo SP, SPI, SPX, XP, XPI, GTS, GTX & Explorer PWC Shop Manual (P/N 219 100 010)

Bombardier's 1994 Sea-Doo shop manual (P/N 219 100 010) covers the SP, SPI, SPX, XP, XPI, GTS, GTX and Explorer. It contains factory service, diagnosis and repair procedures for the covered watercraft.

• Engine repair: Engine removal and installation, top-end and bottom-end service, crankshaft inspection, PTO flywheel and magneto work, and rotary valve timing.

• Fuel and oil systems: Mikuni carburetor overhaul and synchronization, fuel-system leak testing, and oil-injection pump adjustment, bleeding and operation checks.

• Cooling and maintenance: Engine-specific cooling circuits, flushing and care, water-flooded engine recovery, and the periodic inspection chart.

• Electrical diagnosis: Model-specific wiring diagrams, CDI and charging-system tests, MPEM checks, electric starter service, and instrument troubleshooting.

• Propulsion and steering: Jet pump overhaul, impeller and drive shaft inspection, reverse gate adjustment, variable trim system service, and steering alignment.

• Hull and storage: Fiberglass and gelcoat repair guidance, Explorer inflatable-tube service, painting references, and winterization procedures.

This manual was written for watercraft mechanics already familiar with Bombardier service procedures and using the required hand tools and special service tools.

Engine Repair and Rotary Valve Service

The engine chapters distinguish the Rotax 587, 657 and 657 X assemblies. Top-end and flywheel servicing can be performed with the engine in the hull; bottom-end repair and rotary valve shaft work require engine removal. Model-specific torque tables accompany the mechanical procedures.

Rotary valve timing illustrations and valve templates support the timing procedures. Cover-clearance inspection includes both a 45-degree feeler gauge method and a solder method, with separate shaft-deflection and gear-backlash checks.

Carburetion, Oil Injection and Cooling

Single- and twin-carburetor arrangements have separate adjustment details, including the XP's synchronizing-screw setup. Pump-diaphragm leak tests, needle-valve release-pressure checks and fuel-system pressurization support carburetor diagnosis.

Oil-injection coverage includes line-routing illustrations and a pump bench test. The synchronization notes warn that delayed oil-pump opening can cause serious engine damage.

Separate cooling-circuit drawings explain the jet-pump-fed layouts for the different engine types, including bleed, drain and flushing connections. Calibrated water-injection fittings are identified by engine application.

Ignition, Charging and Fault Isolation

Separate wiring diagrams cover SP/GTS, SPI/SPX, GTX, XP, XPI and Explorer configurations. The diagnostic sections distinguish single- and double-generating-coil ignition systems and provide MPEM resistance charts, CDI output tests, regulator checks and fuel/oil sensor test tables.

These references help narrow down no-spark and charging faults before replacement parts are selected. The manual also explains why a normal ignition-coil resistance reading does not rule out a high-voltage fault. Symptom-based charts address no-start, misfire, overheating, backfire and loss of power.

Jet Pump, Reverse and Trim Systems

Jet Pump Unit and Drive Shaft and Seal Carrier exploded views accompany wear-ring inspection, impeller shaft play checks, bearing and seal replacement, and pump pressure testing.

Engine installation specifies alignment tool P/N 295 000 089 and shim checks. Interchanging engine-mount shims can disturb engine-to-pump alignment, causing vibration or component damage.

Reverse-system procedures address the GTS, GTX and Explorer arrangements. VTS coverage adds motor, worm-drive, sliding-collar and trim-cable service; steering sections distinguish the SP/XP and GTS/GTX/Explorer layouts.

Hull Repair and Seasonal Storage

The hull chapter addresses air bubbles, blisters, gelcoat fractures and laminate damage. Its repair guidance supports damage assessment but does not replace a dedicated fiberglass and gelcoat repair manual.

Explorer tube procedures cover slow leaks, patching and grab-handle replacement; major tube repairs are assigned to the factory. Painting references include model-specific PPG color charts and CONCEPT and DELTA procedures. Storage coverage adds internal engine lubrication, draining, antifreeze protection and battery care.

Fuel vapors, high-voltage ignition and rotating propulsion components require the factory safety precautions and appropriately skilled service.

A Preview of Cylinder and Ring Inspection Limits

The following examples are a small selection of the engine-inspection data in the manual.

The top-end table gives a cylinder-taper wear limit of 0.08 mm (0.0031 in). Piston-ring end gap is specified at 0.25–0.40 mm (0.010–0.016 in) for new parts, with a 1.0 mm (0.039 in) wear limit. The accompanying illustrations identify the measurement locations.

PDF Bookmarks, Diagram Detail and Page Count

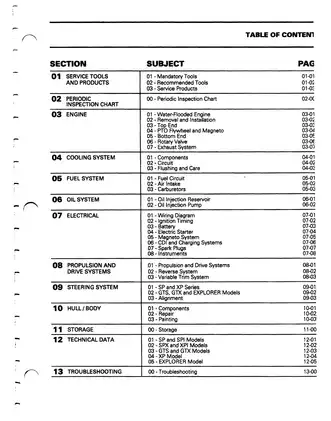

Navigation and legibility: PDF text search is not available. Embedded bookmarks lead to the contents and all 13 main sections. Small wire-color and component labels in the checked wiring diagrams are readable when enlarged. Some page-edge text is clipped and cannot be recovered by zooming.

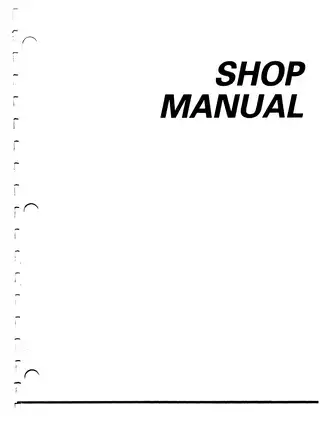

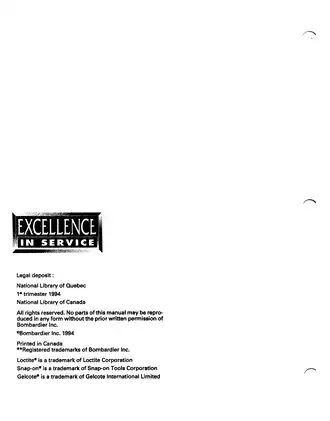

Supplied as one printable, English-language PDF with 320 pages, including the cover, title and copyright pages and 28 blank pages. All of these pages are already included in the total.
