Ducati Hypermotard 1100 / 1100S (2008–2009) Service Repair Manual

Ducati workshop manual for the 2008–2009 Hypermotard 1100 and 1100S, covering engine and chassis maintenance, repair, and diagnosis, with separate suspension sections for the base and S variants.

PDF Search, Bookmarks, and Wiring Detail

Text navigation and diagram limits: Body text is searchable, and embedded bookmarks provide section access, although redundant “Local Disk” entries remain. The main wiring diagram is cut off at the bottom; its smallest wire and pin labels remain difficult to read when enlarged. Text search does not cover labels embedded in diagram images.

Supplied as one 742-page printable PDF, including 740 manual pages and two added cover pages already included in the total.

Engine Overhaul, Chassis Service, and DDS Testing

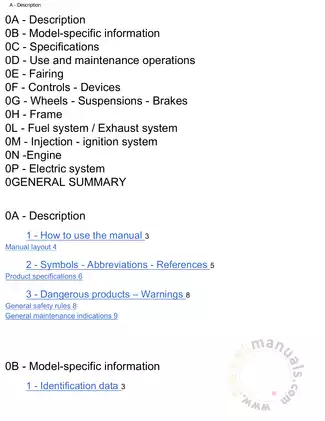

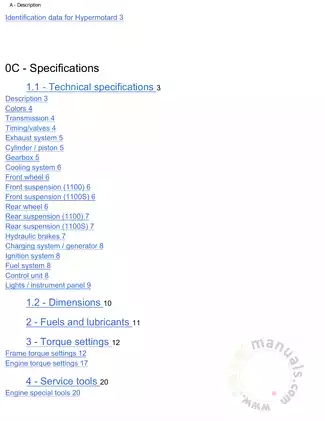

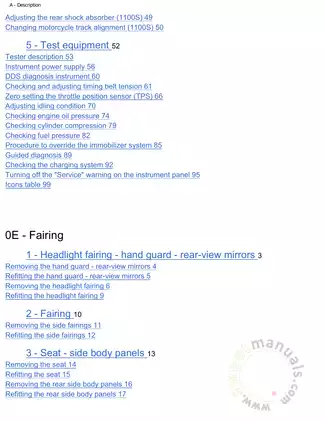

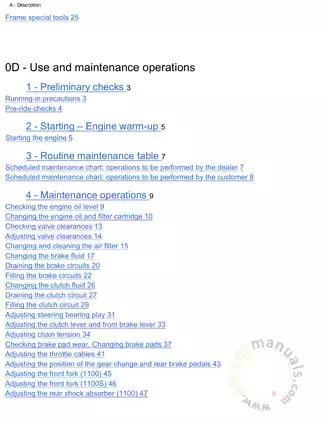

The following is a selection of covered work, rather than a complete contents list. Other topics include headlight beam adjustment and servicing the side stand.

• Engine repair: Step-by-step procedures for engine removal, cylinder-head disassembly, piston inspection, crankcase separation, and connecting-rod reassembly.

• Desmodromic timing: Opening and closing valve-clearance checks, shim selection, camshaft inspection, timing verification, and acoustic timing-belt tension measurement.

• Clutch and gearbox: Clutch fault assessment, plate inspection, primary-drive checks, gearbox-shaft disassembly, selector inspection, and end-float adjustment.

• Suspension and brakes: Marzocchi fork overhaul, rear suspension removal, rocker-arm bearing replacement, brake-pad inspection, and brake and clutch hydraulic-circuit bleeding.

• Fuel-system diagnosis: DDS-guided testing, TPS zero-setting, idle adjustment, cylinder-vacuum synchronization, and fuel-pressure, compression, and oil-pressure checks.

• Electrical systems: Charging and starting tests, instrument-panel diagnostics, immobilizer and transponder coverage, wiring references, and harness-routing illustrations.

Written for Ducati Authorized Service Centers and skilled workshop technicians, this manual assumes prior mechanical knowledge and access to the specified service tools and diagnostic equipment.

Internal Engine and Transmission Work

The engine chapters extend beyond routine servicing to valve-guide and seat inspection, rocker-arm assessment, cylinder and piston matching, and crankshaft and connecting-rod checks. Bearing-selection tables and shaft-shimming calculations support internal rebuild work, with component-specific wear limits and tightening specifications.

Clutch coverage includes an exploded assembly view and a plate-pack section view. Gearbox inspection addresses engagement dogs, selector forks, the selector drum, and the relationship between shaft shimming and gear engagement.

The lubrication chapters cover oil-pump removal and gear-meshing checks, oil-cooler inspection, and the oil-breather assembly. Engine and frame torque tables are accompanied by fluid specifications and illustrated service-tool lists.

The timing chapter warns that reused self-locking belt-roller nuts can loosen and cause serious engine damage.

Injection, Idle Control, and Workshop Diagnosis

The fuel-system sections explain the throttle body, stepper motor, injectors, lambda sensor, and exhaust butterfly-valve motor. Separate procedures cover tank and airbox removal, exhaust installation, and the evaporative-emissions canister fitted to USA versions.

DDS instructions connect measured values with guided diagnostic checks, helping a workshop investigate running faults before choosing replacement components. The manual identifies the diagnostic unit, measurement sensors, and cylinder-vacuum equipment required for those tests.

TPS zero-setting is tied to replacement of the throttle body, sensor, or ECU. The idle-adjustment section also explains when cylinder-vacuum synchronization is appropriate, rather than treating equal vacuum readings as the sole adjustment target.

Suspension Variants and Brake-Service Limits

Separate fork chapters cover the standard and TiN-treated Marzocchi assemblies. Rear suspension coverage distinguishes the Sachs unit and fixed linkage from the Öhlins arrangement and adjustable linkage, including the S-model ride-height adjustment.

Rear shock scope: Sachs coverage includes spring removal and visual inspection. For faults within the Öhlins shock absorber, the manual directs the technician to an authorized Öhlins service center.

The single-sided swingarm chapter covers eccentric-hub removal and refitting but prohibits disassembling the hub itself. Brake-caliper and master-cylinder sections limit service to specified replaceable components rather than internal rebuilding.

Frame inspection includes a frame-dimensions diagram. Brake work and gas-pressurized suspension components require the safety precautions and workshop equipment specified in the manual.

Wiring References and Instrument Functions

Electrical coverage includes the wiring-diagram key, wire-color coding, fuse-box legends, and “Arrangement of wiring on frame” illustrations. These routing references support harness placement during reassembly.

The injection-ignition chapter explains CAN communication between the ECU and instrument panel. Instrument sections cover displayed fault messages, DDS service-warning reset, emergency-code immobilizer override, and USB data-logger activation and deactivation.

Examples of Valve and Belt Specifications

The valve-clearance tables distinguish nominal assembly values from in-service limits. For the intake opening rocker, nominal clearance is 0.10–0.15 mm.

The cold timing-belt table gives 140 ± 5 Hz for a new belt and 100 ± 5 Hz as the used-belt service setting, separately specified for the horizontal and vertical cylinders.
