Nissan 300ZX Z31/Z32 Service Manual Set, 1984–1990 (P/N SM9E-0Z31U0)

Use each publication for the relevant year and destination market so repair procedures, specifications, and wiring references stay matched.

Fitment limits: The file labeled 1985 duplicates part of the 1986 manual and omits its Engine Fuel & Emission Control and Heater & Air Conditioner chapters. It does not provide 1985-specific coverage. The 1990 publication covers Z32 export configurations and does not continue the Z31 documentation.

PDF Search, Navigation, and Page Counts

Search and diagram detail: The files labeled 1984, 1987, and 1988 support text search across most pages, with occasional pages lacking searchable text. Search in the 1989 file is limited to its first 21 pages; the 1985, 1986, and 1990 files have no embedded text search. Bookmarks vary in coverage, with incorrect or inactive destinations in 1988 and 1989; 1990 has none. Small wiring labels require zooming, and show-through in 1989 and coarse connector details in 1990 affect some readings.

ZIP download containing seven printable PDFs and 6,387 pages total, including the supplied covers, forewords, index and reference sheets, wiring pages, and two additional front-matter pages in the 1987 file.

Engine Overhaul, Driveline Repair, and System Diagnosis

These selected workshop topics are a preview, not a complete contents list. Other examples include starter/alternator overhaul and ASCD cruise-control troubleshooting.

• Engine repair: Step-by-step timing-belt, cylinder-head, and internal-overhaul procedures, plus engine removal, compression testing, and turbocharger inspection.
• Clutch and transmission: Hydraulic adjustment, gearbox removal, teardown, inspection, reassembly, and model-specific automatic-transmission testing and diagnosis.
• Final drive and axles: R200 differential setup, propeller-shaft diagnosis, CV halfshaft service, wheel hubs, and bearing inspection.
• ECCS diagnosis: Self-diagnosis, ECU input/output measurements, sensor and actuator tests, system schematics, connector views, and harness routing.
• Chassis and brakes: Front/rear suspension, adjustable dampers, alignment, brake bleeding, caliper and rotor repair, parking-brake adjustment, and power-steering overhaul.
• Body and HVAC: Door, glass, power-window, seat, and restraint service, plus heater/A/C performance tests, evacuation, charging, and control-circuit diagnosis.
• Z32 systems: Separate engine and driveline repair, Super HICAS, CONSULT-based checks, and anti-lock brake diagnosis for the export configurations listed above.

This material is best suited to experienced DIY owners and technicians who can work from factory schematics and use electrical, pressure-test, and measuring equipment. Routine maintenance is more accessible, while internal overhaul and refrigerant service assume workshop skills and appropriate tools.

Z31 Engine Service and Factory Tools

Lubrication and cooling sections cover oil-pressure testing, oil-pump and water-pump service, thermostat checks, and radiator work. Overhaul instructions are paired with component-specific torque sequences, capacities, adjustment data, clearances, and wear limits for inspection and assembly.

Factory tool references include ST10120000/J24239-01 for cylinder-head bolts, KV10110600/J33986 for valve-spring work, and KV319K0010/J34270 for automatic-transmission diagnosis.

ECCS Drivability and Emissions Diagnosis

System descriptions and component-location drawings lead into symptom charts, self-diagnosis, and ECU input/output checks. These references connect reported symptoms with component measurements before replacement parts are selected.

Individual checks cover the airflow meter, crank-angle sensor, cylinder-head temperature sensor, throttle-position sensor, injectors, oxygen sensor, and knock sensor. Fuel-pump, EGR, AIV, idle-control, and evaporative-emission tests address the related fuel and emissions systems.

The ECCS inspection chapter warns that powered harness connections can damage the control unit.

Transmission and Differential Setup

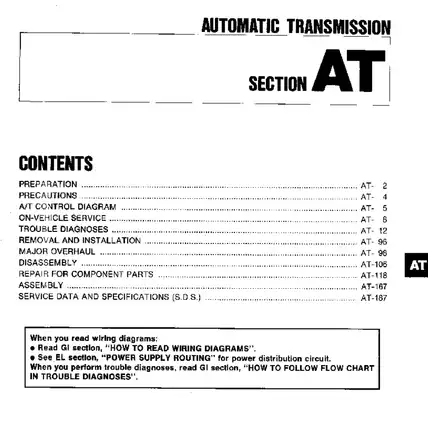

Z31 chapters distinguish the FS5W71C, FS5R90A/Borg-Warner T-5, and FS5R30A manual gearboxes. Clutch material includes pedal and hydraulic service, while E4N71B coverage adds road, stall, and pressure tests, electrical diagnosis, and internal component repair.

R200 setup covers pinion height and preload, side-bearing preload, backlash, and tooth contact. The later Z31 material also includes limited-slip differential torque checks and diagnosis of chattering during turns.

Body, Steering, and Climate Control

Body procedures address door locks, mirrors, glass sealing, T-bar roof hardware, and body alignment. Automatic climate-control sections include input-system checks and self-diagnosis where fitted.

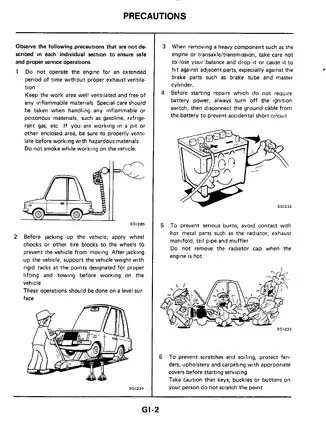

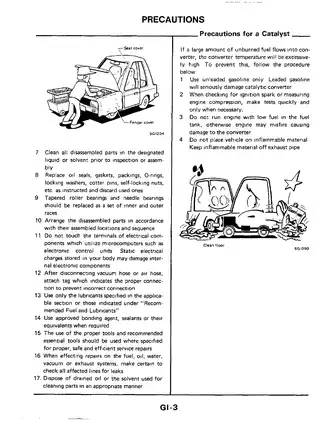

Steering assembly cautions identify the risk of rack teeth cutting the rack packing. Follow the General Information precautions for lifting, fuel pressure, brake hydraulics, and refrigerant work.

Electrical Schematics and Harness References

Electrical references include ECCS circuit and wiring diagrams, the E4N71B control schematic, adjustable-shock-absorber fault charts, manual/automatic A/C circuits, and digital/needle-type combination-meter diagrams.

Connector views and harness layouts cover engine-room, EFI, instrument, console, A/C, and rear-body circuits.

Z32 Powertrains, Super HICAS, and Anti-Lock Brakes

The Z32 publication covers VG30DE/VG30DETT engine work, RS5R30A manual and RE4R01A/RE4R03A automatic transmissions, and R200V/R230V final drives.

Super HICAS material includes hydraulic component repair and diagnosis with or without CONSULT. Twin-orifice power-steering diagnosis and anti-lock brake self-diagnosis, circuit checks, and component tests address systems distinct from the Z31 chapters.

Crankshaft and Rod Clearance Examples

The 1988 Z31 engine-overhaul chapter specifies crankshaft end play of 0.05–0.17 mm as standard, with a 0.30 mm limit.

Connecting-rod side clearance in the same chapter is 0.20–0.35 mm as standard, with a 0.40 mm limit. These values accompany the internal inspection and assembly material.
