1993–1996 Kawasaki KLX650R, KLX650 Factory Service Manual (PN 99924-1162-03)

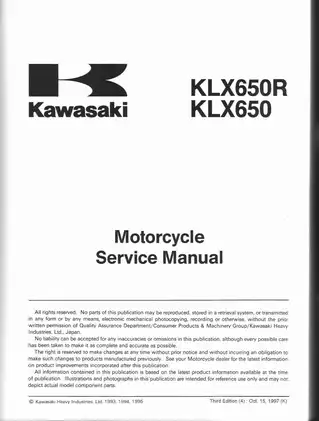

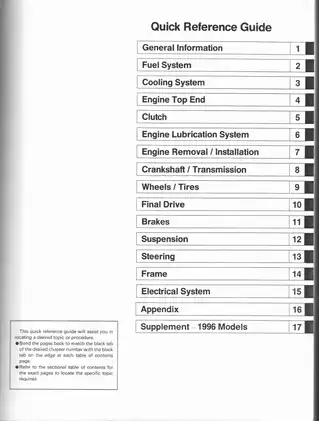

• Factory coverage: Covers the 1993–1996 KLX650R/KLX650 family through A1–A3, C1–C4, B1, and D1 model codes. The 371-page PDF reproduces Kawasaki Part No. 99924-1162-03, Third Edition (4), dated October 15, 1997.
• Variant-specific service: Separates A-series kick-start and Electrofusion-cylinder work from C-series electric-start, charging, starter-clutch, side-stand interlock, emissions, and road-equipment systems, then adds a dedicated 1996-model supplement.

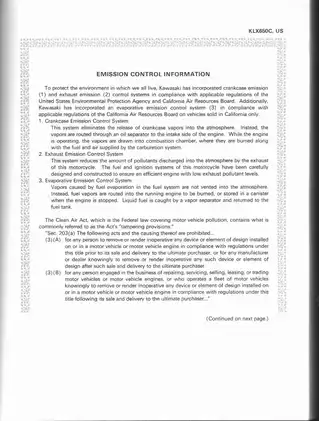

• Fuel and cooling repair: Covers Keihin CVK40 carburetor fuel-level inspection and adjustment, carburetor disassembly and assembly, fuel-tap and air-cleaner work, California evaporative-emission testing, cooling-system pressure checks, flushing, water-pump service, and mechanical-seal replacement.
• Engine top-end procedures: Details the two-stage cam drive, camshaft-chain tensioner, camshaft and chain removal/installation, KACR inspection, compression testing, valve-clearance and shim adjustment, valve-guide and seat repair, plus piston and cylinder inspection.
• Clutch, lubrication, and lower-engine work: Takes you through clutch and primary-drive service, oil-pressure testing, oil-pump and relief-valve inspection, engine removal, crankcase disassembly, crankshaft and connecting-rod checks, transmission-shaft work, shift-mechanism inspection, balancer service, and bearing/seal replacement.
• Chassis overhaul: Includes wheel and tire service, model-specific drive-chain adjustment, brake-fluid replacement and bleeding, caliper and master-cylinder overhaul, fork disassembly and oil-level setup, rear-shock and Uni-Trak work, swingarm bearings, and steering-stem service.

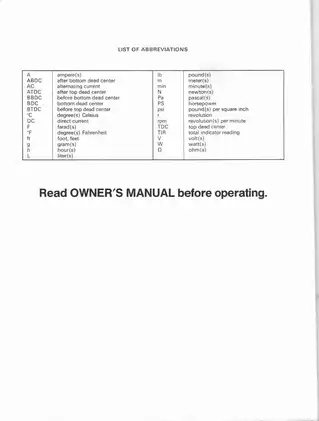

• Electrical and reference material: Provides model- and market-specific wiring diagrams, CDI troubleshooting, battery and charging checks, starter and lighting tests, cable/wire/hose routing, exploded assembly views, torque and locking-agent tables, wear limits, clearances, capacities, and electrical test values.

Exact Model Application

1993: KLX650-A1 beginning with JKALXEA1*PA000001 or LX650A-000001; KLX650-C1 beginning with JKALXEC1*PA000001 or LX650C-000001.

1994: KLX650-A2 beginning with JKALXEA1*RA006001 or LX650A-006001; KLX650-C2 beginning with JKALXEC1*RA015001 or LX650C-015001.

1995: KLX650-A3 beginning with JKALXEA1*SA009001 or LX650A-009001; KLX650-C3 beginning with JKALXEC1*SA025001 or LX650C-021001.

1996: KLX650-C4 beginning with JKALXEC1*TA025001 for the U.S.; KLX650-B1 beginning with JKALXEB1*TA000001 for Australia; and KLX650-D1 beginning with JKALXED1*TA000001 for the U.S. or JKALX650DDA000001 for Europe. The asterisk marks the frame-number digit Kawasaki identifies as variable from one motorcycle to another.

Repair and Diagnostic Depth

The chapters are organized around actual shop work. Inspection and adjustment data lead into removal, disassembly, repair, reassembly, and operational checks for each major system. Separate A- and C-series maintenance charts are followed by symptom-based troubleshooting for starting difficulty, poor low- or high-speed running, overheating, clutch and shifting faults, abnormal engine or drivetrain noise, handling problems, weak brakes, and C-series battery charging issues.

Reference graphics are useful for more than parts orientation. Named examples include the Two-Stage Cam Drive System view, KLX650C Interlock Circuit, Coolant Flow Chart, Engine Oil Flow Chart, Cable, Wire and Hose Routing maps, and wiring sheets for A1, A2/A3/D1, C1–C4 U.S./Australia, C1–C3 other markets, and B1 Australia.

Variant Notes, Factory Tools, and Shop Cautions

A major A-versus-C distinction appears in the cylinder section. The KLX650A Electrofusion bore is not treated as a conventional rebore-and-hone cylinder, while the KLX650C section contains the factory boring/honing procedure and oversize-piston inspection data. That difference matters before machine work or replacement parts are ordered.

The cam-drive chapter warns that turning the crankshaft with the chain tensioner removed can upset cam timing and bend valves. Other assembly cautions cover valve-shim handling, clutch-plate lubrication, seal and bearing installation, and correct cable, wire, and hose placement.

Factory tool references include Fuel Level Gauge 57001-1017, Compression Gauge 57001-221 with Adapter 57001-1018, Valve Spring Compressor Assembly 57001-241, Flywheel Puller 57001-1191, Fork Oil Level Gauge 57001-1290, and Oil Pressure Gauge Adapters 57001-1359 and 57001-1088.

The 1996 chapter is a change-only supplement and must be read with the base manual; it adds B1/D1 identification, specifications, hose routing, and electrical diagrams rather than repeating every repair procedure. This is a service manual, not a parts catalog—the exploded views support disassembly and assembly, while replacement-part listings are handled separately.

Written for trained mechanics but detailed enough for experienced owners with proper tools, the manual assumes the motorcycle is securely supported before chassis work. Disconnect the KLX650C battery ground before disassembly and allow the pressurized cooling system to cool before opening it.
