Kawasaki Models Covered & Key Technical Specifications

Models & Model Codes: Ninja 750R (ZX750-F1), GPX750R (ZX750-F1)

Sub-models / Variants: Australian Model (A), UK Model (B), Canadian Model (C), California Model (Cal), French Model (F), West German Model (G), Italian Model (I), South African Model (SA), Spanish Model (SP), Swiss Model (W), US Model (U, US), Austrian Model (AU; carburetor specifications)

Model Year: 1987

Beginning Frame Numbers (ZX750-F1): JKAZXDF1□HB500001 or ZX750F-000001 (□ varies by machine)


  • Engine: 4-stroke, DOHC, 4-cylinder, liquid-cooled

  • Displacement: 748 mL

  • Bore and stroke: 68.0 x 51.5 mm

  • Compression ratio: 11.2

  • Carburetion: Keihin CVK34 x 4

  • Transmission: 6-speed, constant mesh, return shift

  • Coolant capacity: 2.0 L

  • Fuel tank capacity: 21.0 L

  • Electrical system: 12 V 14 Ah battery, three-phase AC alternator

Kawasaki Manual Features & Selected Content Preview

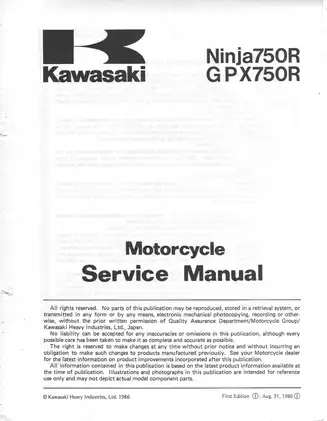

This Kawasaki factory service manual covers the 1987 Ninja 750R and GPX750R, model ZX750-F1. It is Part No. 99924-1079-01, First Edition, dated August 31, 1986. Market symbols identify regional specifications and procedures.

Finding Chapters and Reading Wiring Diagrams

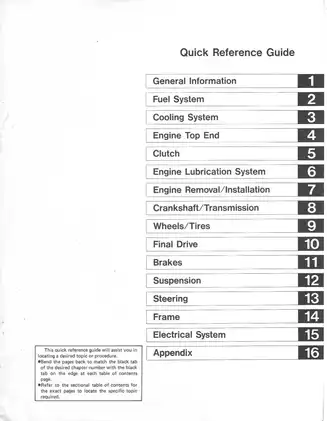

Search, navigation, and wiring detail: The PDF lacks text search and embedded bookmarks. The printed quick-reference guide and chapter contents help locate procedures. Both main wiring diagrams appear sideways in the file. Small wire-color codes and connector labels need magnification, and some fine lettering remains faint.

The ZIP contains one 201-page printable PDF in English. The total includes eight front-matter pages, 192 chapter pages including the eight-page appendix, and the rear cover with the model-application table.


Engine Overhaul, Chassis Service, and Electrical Diagnosis

These selected workshop topics show the range of repairs and tests covered. The manual also includes fairing and rear-frame removal and illustrations of spark-plug conditions.

  • Fuel and emissions: Carburetor synchronization, service fuel-level adjustment, carburetor inspection, and separate checks for US clean-air and California evaporative-emission systems.
  • Engine removal and overhaul: Engine removal and installation, cylinder-head removal, cam-chain timing, valve-guide and seat repair, piston inspection, crankcase splitting, and bearing selection.
  • Cooling and lubrication: Cooling-system pressure testing, radiator-cap and thermostat checks, water-pump service, oil-pump removal, and engine oil-pressure testing.
  • Clutch and transmission: Hydraulic master- and slave-cylinder service, clutch bleeding, plate inspection, transmission-shaft assembly, positive neutral finder service, and shift-drum work.
  • Wheels, final drive, and brakes: Hub bearings, tire and rim inspection, wheel balancing, chain and sprocket replacement, caliper repair, and brake bleeding.
  • Suspension and steering: ESCS adjustment, front-fork overhaul, rear-shock air and rebound damping adjustment, Uni-Trak linkage service, and steering-stem bearing replacement.
  • Electrical diagnosis: Alternator overhaul, charging and ignition tests, starter-motor service, cooling-fan and gauge checks, and market-specific wiring diagrams.

Kawasaki wrote the manual primarily for trained mechanics in a properly equipped shop. Owners with basic mechanical knowledge, suitable tools, and an understanding of workshop procedures can use it for basic maintenance and repair.

Carburetors and Market-Specific Emissions

The fuel section gives separate California idle specifications and Austrian and Swiss pilot-screw settings. It identifies Fuel Level Gauge 57001-1017 and Vacuum Gauge 57001-1198 for fuel-level checks and synchronization.

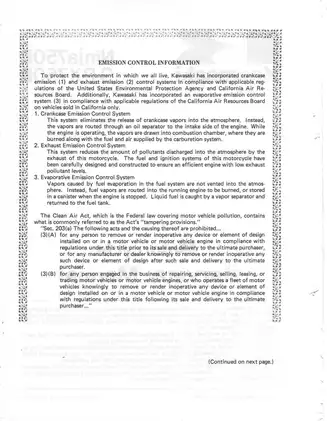

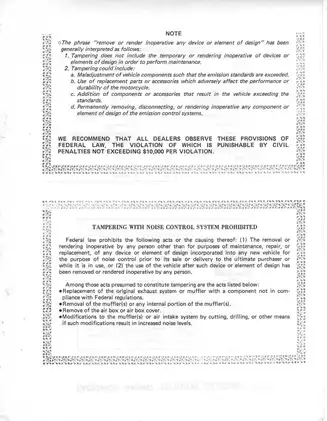

California evaporative-emission coverage includes the canister, liquid/vapor separator, color-coded hose routing, and a separator operation test. The US clean-air section covers air-suction-valve inspection and vacuum-switch-valve testing.

Engine and Drivetrain Repair

Top-end procedures cover rocker arms and shafts, camshaft-cap clearances, cylinder compression, valve-seat cutting and lapping, and cylinder and piston wear. Kawasaki specifies Valve Adjuster 57001-1232 for clearance adjustment.

Plastigage checks help assess crankshaft bearing clearance. Tables match the crankcase and main-journal markings, or the connecting-rod and crankpin markings, to the insert color and part number needed for reassembly.

Partially loosening and then retightening the non-return cam-chain tensioner can damage the tensioner and chain. Incorrect cam timing can damage the valves. The camshaft caps are machined with the cylinder head, so a cap in the wrong position can leave improper oil clearance and seize the camshaft.

The transmission section covers gears, circlips, bushings, shift forks, and the shift drum through disassembly and assembly. It also covers starter-clutch service and identifies Clutch Hub Holder 57001-305.

Cooling and Oil-System Checks

The Coolant Flow Chart and Engine Oil Flow Chart trace flow through the engine and related assemblies. The cooling chapter covers filling, leak checks, radiator service, and fan-switch and water-temperature sensor tests.

The lubrication chapter distinguishes relief-valve opening-pressure measurement before warm-up from the warm-engine oil-pressure check. It specifies Oil Pressure Gauge 57001-164 and Adapter 57001-1233, and covers the oil screen, filter, and cooler.

Brakes, Final Drive, and Suspension

Brake and clutch procedures include hydraulic-component inspection and post-installation checks. The manual covers brake master-cylinder repair, rear-wheel coupling bearings, and swingarm removal for replacement of the factory endless O-ring chain.

Fork service distinguishes left- and right-leg oil levels and covers seals, guide bushings, and springs. The rear suspension section covers the tie-rods, rocker arm, sleeves, and needle bearings. Steering procedures include tapered-roller-bearing installation and adjustment.

Electrical Circuits and Workshop Reference

The ZX750-F1 Wiring Diagram (US and Canada) and ZX750-F1 Wiring Diagram (Other than US and Canada) show the two wiring layouts. The Ignition Circuit and IC Igniter Troubleshooting flowchart support ignition diagnosis. The North American coverage explains headlight reserve lighting and junction-box relay differences.

Electrical tests cover pickup and ignition coils, the rectifier, regulator, starter circuit, relays, and diodes. Alternator-belt adjustment calls for Tension Wrench 57001-1235.

The periodic maintenance chart links service tasks to time or mileage. Exploded views identify torque and assembly-material requirements, while the appendix helps trace symptoms involving starting, running, overheating, shifting, handling, braking, and charging.

Kawasaki references a separate Parts Catalog and Special Tool Manual. Safety notes cover possible asbestos in period friction materials, high-voltage ignition, battery charging, hydraulic work, and secure support for major repairs. The battery-fed radiator fan can start with the ignition off.

Valve Clearance and Crankshaft Measurement Examples

For a cold engine at room temperature, the specified valve clearances at the cam-to-rocker contact are 0.08–0.13 mm intake and 0.12–0.17 mm exhaust. The valve-stem-to-rocker contact has its own specifications: 0.13–0.18 mm intake and 0.18–0.23 mm exhaust.

The crankshaft main-journal diameter is 33.984–34.000 mm standard, with a 33.96 mm service limit. The manual presents those dimensions with bearing-clearance checks and the main-bearing insert selection table.
