1970s–1980s Kubota B5100D/B5100E/B6100D/B6100E/B7100D Tractor Operator's Manual (P/N 66701-62919)

Maintain and operate your 1970s–1980s Kubota B-series tractor with this operator's manual (P/N 66701-62919), covering the B5100D, B5100E, B6100D, B6100E, and B7100D. Its scope is daily operation, routine service, and basic troubleshooting; it does not provide internal engine or transmission overhaul procedures.

• Operator controls: Pre-start checks, engine starting and stopping, differential lock operation, and identification of instrument-panel switches, lamps, and levers.

• Fuel and cooling: Fuel-filter cleaning, diesel injection-pump bleeding, radiator and hose care, and coolant maintenance.

• Lubrication and drivetrain: Engine oil and filter changes, transmission oil changes, hydraulic strainer cleaning, and D-model front differential and front wheel gear case service.

• Chassis adjustments: Brake pedal travel, clutch linkage, steering-wheel play, front-wheel toe-in, center-pin adjustment, and rear-wheel tread settings.

• Hydraulics and implements: Directional control valve operation, implement lowering speed and lift limits, three-point hitch adjustment, and implement load tables.

• Electrical troubleshooting: Battery fault tables and a wiring diagram covering starting, charging, glow-plug, lighting, and optional accessory circuits.

This manual suits owners handling routine maintenance who need illustrated control and adjustment guidance; it directs major service work to a Kubota dealer.

B-Series Controls and Model Differences

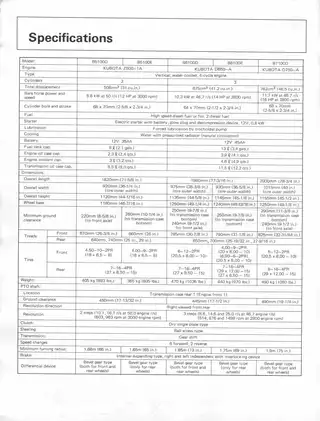

D models have four-wheel drive; E models have two-wheel drive. The specification tables identify the Z500-1A engine in the B5100, D650-A in the B6100, and D750-A in the B7100, with power ratings, cooling capacities, and dimensions.

The instrument-panel layout identifies the gauges and switches. Control descriptions explain the decompression knob, PTO speed gear shift lever, D-model front wheel drive lever, and separate high-low gear shift lever on B6100D/B6100E/B7100D tractors. Traveling-speed charts relate gear selection to field work.

Routine Service and Fault Finding

The periodic service schedule separates daily checks from hour-based maintenance, supported by lubrication-point views. Fuel service covers bleeding after filter or line work and warns that contamination can damage the injection pump and accelerate injection-nozzle wear.

Transmission oil also serves the hydraulic system. Separate D-model axle sections help identify the front housings that need their own oil service, so the transmission oil change is not mistaken for servicing the entire drivetrain.

Battery and engine troubleshooting tables link hard starting, low power, sudden stopping, and charging problems to causes and corrective actions. The wiring diagram adds wire-color codes and switch-terminal markings for tracing the circuits.

Long-term storage instructions address battery care, corrosion prevention, and clutch protection.

Hydraulic Controls and Three-Point Hitch Setup

The directional control valve section applies to B5100D, B6100D, B6100E, and B7100D. The -P accessory configurations include the three-point hitch, with drawings showing top-link, lift-rod, and check-chain adjustments.

Implement maximum-load tables distinguish tractor models and attachment types, helping match equipment to the correct tractor. Roll-Over Protective Structures (ROPS) are covered as optional equipment; the B1022 ROPS cannot be used with the BK-7A trencher.

The PTO coupling illustration distinguishes the Kubota FS850 rotary tiller from other implements. It warns that the wrong shaft-groove position can cause joint-to-shaft interference when the tiller is raised.

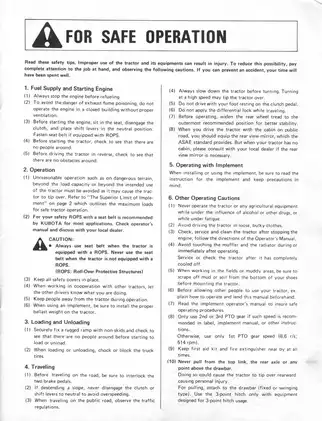

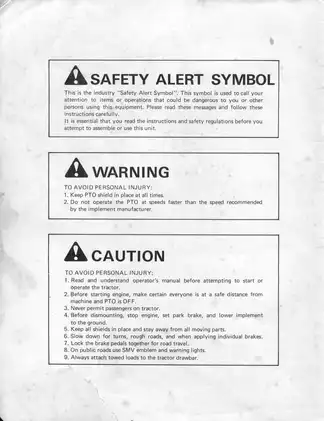

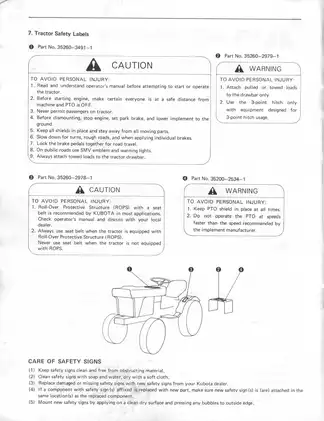

Review the included safety precautions, particularly the warning that nearly invisible high-pressure hydraulic leaks can penetrate skin.

A Preview of Pedal and Steering Adjustments

These examples are a small selection of the adjustment data in the manual. For the covered tractors, the clutch section specifies 2–4 mm of pedal play, while the steering section gives 10–30 mm of steering-wheel play.

The front-wheel toe-in reference is approximately 0–5 mm, expressed as the difference between the rear and front wheel measurements. The accompanying illustration identifies the measuring points.

PDF Navigation, Diagram Detail, and Page Count

Search and diagram access: PDF text search is unavailable. Embedded bookmarks link to individual pages but use generic image filenames instead of chapter titles. Small wiring-diagram labels are readable when enlarged.

The download is one printable, 43-page PDF in English, with 34 numbered manual pages and nine unnumbered pages. Those nine comprise the front cover, three safety pages, two specification pages, the contents page, and two closing pages; all are included in the total.
