1993-1996 Hyundai Lantra Elantra Air Conditioning Service Manual

Technician-level documentation for Hyundai Lantra/Elantra A/C systems, covering specifications and service procedures. Documents paper handling and control panel diagnostics. PN 97-2

4.7starstarstarstarstar_half(3)
visibility Preview Available
Hyundai 1993-1996 Hyundai Lantra Elantra Air Conditioning Service Manual manual page preview - page 1 of

Sample pages from the 1993-1996 Hyundai Lantra Elantra Air Conditioning Service Manual manual

Hyundai 1993-1996 Hyundai Lantra Elantra Air Conditioning Service Manual manual preview page 1 - thumbnail
Hyundai 1993-1996 Hyundai Lantra Elantra Air Conditioning Service Manual manual preview page 2 - thumbnail
Hyundai 1993-1996 Hyundai Lantra Elantra Air Conditioning Service Manual manual preview page 3 - thumbnail
Hyundai 1993-1996 Hyundai Lantra Elantra Air Conditioning Service Manual manual preview page 4 - thumbnail
Hyundai 1993-1996 Hyundai Lantra Elantra Air Conditioning Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$8.00 (incl. VAT) Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal

Document Details

keyboard_arrow_down
Document Number / Seller:
24449 / Charles Taylor
File Size:
53.03 MB
File Type:
ZIP
Language:
English
Printable:
Yes
Category:
Car
Last updated / verified
Aug 6, 2025

Models Covered & Key Technical Specifications

1993-1996 Hyundai Lantra Elantra (97-2) - Air Conditioning Service documentation for Lantra / Elantra vehicles. Original Compendium Volume.

  • Documented Tension Specs: 55.5 mm establishes the new belt tension Specification.
  • Specific Temperature Range: For optimal operation, 0-4C defines the environmental limit Baseline.
  • Essential Power Rating: 3700 Kcal/h -- signifies the cooling capacity Threshold.
  • Advanced Memory Capacity: The system requires 3800 Kcal/h for heating operation Logic.
  • Core Speed Performance: Maximum cooling reaches 3700 Kcal/h Parameters.
  • Principal Fastening Values: 20-25 Nm specifies the torque for the wire clip.

Manual Description & Preview

Factory-Level Technical Training Manual: Hyundai Lantra Elantra (1993-1996) Air Conditioning Manual (Electrical-Reference)

Diagnostic-Area: Air Conditioning // Architecture-Focus: System Logic // Diagnostic-Area: System Operation.

Service procedures are grouped by the following system components:

  • GENERAL: Provides overall specifications and service standards for the A/C system.
  • HEATER: Details the components and removal/installation procedures for the heater unit.
  • BLOWER ASSEMBLY: Outlines blower components and their service procedures.
  • VENTILATOR: Illustrates ventilator components and their removal/installation.
  • AIR-CONDITIONER SYSTEM: Shows the major components of the air conditioning system.

Effectively requiring the correct system diagnosis and repair, this manual provides a clear overview of the air conditioning framework. The manual documents torque specifications for component connections to ensure proper joint separation prevention.

Technical Specs Table (3-Column) Assessment-Element Technical-Path Logic
Heater Unit Type 3-way-flow Full-air-mix
Cooling Capacity 3700 Kcal/h Max
Heating Capacity 3800 Kcal/h Max
Compressor Model TRF 090 Scroll type
Refrigerant R-12 Standard
Drive Belt Size 4 PK Standard

FAQ

Does the Hyundai Lantra Elantra Air Conditioning Service Manual cover model years 1993 through 1996? keyboard_arrow_down

Document is titled as the 1993-1996 Hyundai Lantra Elantra Air Conditioning Service Manual and includes reference data specifically for that vehicle range.

What information regarding fastening values and torque settings does this manual include? keyboard_arrow_down

Manual lists principal fastening values, such as the specific torque requirement for the wire clip and the U-Nut on the compressor assembly.

Are there technical specifications for the cooling capacity and belt tension available in this document? keyboard_arrow_down

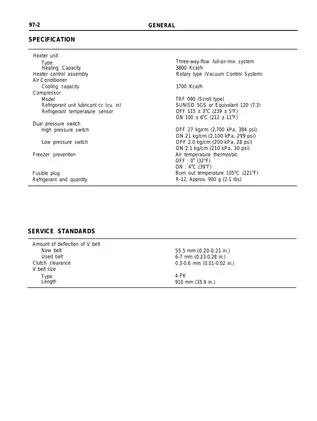

Specification tables in the manual include parameters for cooling capacity and defined deflection values for both new and used V belts.

Does the document provide detailed component location and identification for the air conditioning system? keyboard_arrow_down

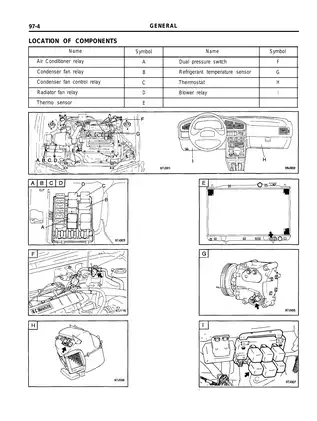

Contains a dedicated section for component location, listing parts and symbols such as the air conditioner relay, dual pressure switch, and refrigerant temperature sensor.

Does this PDF format manual contain schematic diagrams for the electrical systems? keyboard_arrow_down

Manual includes a comprehensive appendix that features schematic diagrams, harness layouts, and connector configurations for various vehicle electrical systems.
