1997 Sea-Doo SP, SPX, GS, GSI, GSX, GTS, GTI, GTX, HX Shop & Racing Manual Set (P/N 219 100 048)

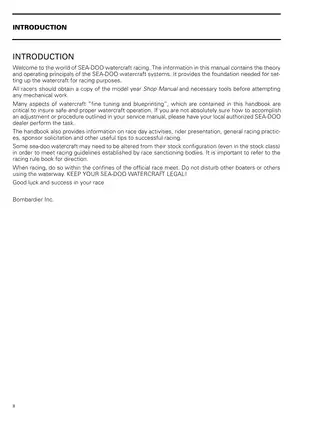

The Racing Handbook calls for the appropriate model-year Shop Manual before mechanical work; this set supplies the 1997 edition alongside the racing material.

Coverage limits: Older-model application tables and the handbook’s 947 material do not extend the included Shop Manual’s repair coverage to those machines. Earlier models and GSX LTD applications require their corresponding shop manuals for model-specific repairs.

Searchable Text and Model Wiring Sheets

Text search and diagram navigation: Both PDFs have searchable main text. Graphic covers and the Shop Manual’s model wiring pages are not text-searchable. Internal section bookmarks work, including model-specific wiring entries; “MAIN MENU” points to an external file that is not included. Small wiring labels require zooming.

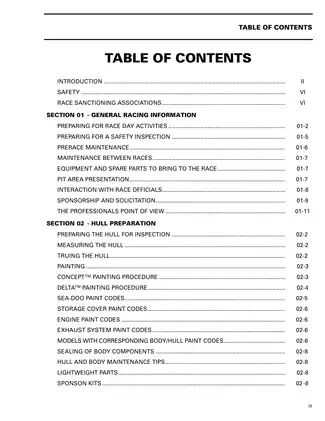

The ZIP download contains two printable PDFs totaling 495 pages, including 17 cover/preliminary pages and three directory pages at the end of the Racing Handbook.

Engine Repair, Jet-Drive Service, and Race Preparation

The following selected topics show the repair and setup coverage rather than reproduce the complete contents. Other material includes a racing glossary and equivalent weights and measures.

• Engine repair: Step-by-step procedures for engine removal and installation, top-end and bottom-end work, crankshaft inspection, rotary-valve service, and RAVE components.

• Fuel and lubrication: Mikuni carburetor overhaul, pop-off testing, synchronization, fuel-system pressure testing, and oil-injection pump adjustment, bleeding, and delivery checks.

• Electrical diagnosis: Ignition testing, MPEM checks, charging-system tests, starter repair, instrument diagnosis, DESS fault codes, and model-specific wiring diagrams.

• Propulsion and steering: Jet-pump overhaul, impeller and wear-ring inspection, shaft bearings and seals, engine/pump alignment, reverse, VTS, and steering adjustments.

• Hull and suspension: Fiberglass and gelcoat repair, body sealing, sponson installation, and XP/HX Direct Action Suspension inspection and service.

• Race preparation: Squish and combustion-chamber measurements, compression calculations, cylinder-porting maps, ignition correction, carburetor tuning, and propulsion analysis.

• Maintenance and race support: Flushing, water-flooded engine procedures, storage, period safety-inspection guidance, and pre-race and between-race checks.

The Shop Manual was written primarily for manufacturer-trained watercraft technicians; the Racing Handbook recommends that modifications be performed or verified by a highly skilled professional watercraft racing mechanic.

Engine Inspection and Leakage Diagnosis

The Shop Manual covers piston and ring work, cylinder inspection, crankcase separation and reassembly, crankshaft bearing and seal service, and the 787 counterbalance shaft. Defective crankshafts are referred to a specialized repair shop or replacement.

The Engine Leakage Diagnostic Flow Chart and block-off layouts work with the Sea-Doo Engine Leak Test Kit P/N 295 500 352. They distinguish cooling-system leaks from top-end, bottom-end, and rotary-valve-shaft sealing faults, helping identify the affected area before disassembly and check sealing after repair.

Fault checks extend to oil-injection lines, crankshaft seals, the rotary-valve lubrication cavity, shaft seals, plugs, and casting defects. Racing material adds journal alignment, deflection, connecting-rod inspection, labyrinth-sleeve orientation, and post-build break-in guidance.

Rotary-valve coverage includes cover flatness, gear backlash, degree-wheel timing, and identification templates. Tool references include the degree wheel P/N 295 000 007 and TDC gauge P/N 295 000 143.

Combustion, Porting, and RAVE Setup

The handbook treats detonation, pre-ignition, squish, combustion-chamber volume, corrected and uncorrected compression ratios, cylinder-head machining calculations, and octane selection as connected setup decisions.

Porting maps supply engine-specific port, cylinder, chamber, bore, and stroke data, separated into pre-1995, 1995, and 1996–1997 build groups. Engine references include 587, 657/657X, 717/717D, 787/787X, and 947 where applicable.

RAVE operation diagrams distinguish the conventional exhaust-pressure-operated system from the MPEM-controlled 947 arrangement. The 947 reed-valve intake layout is discussed separately from rotary-valve engines.

Carburetion, Oil Injection, and Cooling

Mikuni Super BN material explains internal fuel circuits, needle-valve and spring selection, low-speed and transition tuning, and high-speed jetting. Single-to-dual-carburetor conversion coverage identifies the required intake, rotary-valve-cover, flame-arrester, cable, and related hardware changes.

Pop-off testing references the pump gauge tester P/N 295 000 114. The Shop Manual adds carburetor disassembly, diaphragm and valve checks, synchronization, oil-pump bleeding, and delivery testing.

Cooling references include 587/657/717/787 cooling-system schematics, tuned-exhaust operation, and water-flow-regulator service. The handbook warns about exhaust-system damage from blocked hard jets, rubber damage from aggressive carburetor cleaners, and rapid carb-body corrosion after protective paint removal.

Ignition, Starting, and DESS Fault Tracing

Ignition work covers establishing a static timing reference, dynamic verification with a stroboscopic light, spark-plug selection, armature-plate correction on earlier systems, and MPEM timing correction for 787/787X and 947 applications.

The Shop Manual supplies charging-coil tests, starter inspection and repair, and gauge and Info Center sensor checks. Its starting-system troubleshooting table separates battery, switch, solenoid, MPEM, and starter faults before starter removal.

DESS coverage includes basic and advanced beep-code diagnosis. Safety-lanyard programming requires the MPEM programmer P/N 295 000 127 and is referred to that tool’s separate guide.

Jet Pump, Drive Shafts, and Steering

Propulsion analysis separates inlet-air ventilation from cavitation inside the pump, relating symptoms to ride-shoe sealing, intake-grate fit, impeller and wear-ring condition, stator surfaces, and water flow.

Impeller application and pitch charts identify fixed and progressive designs, material, part numbers, and matching boots. Engine-to-jet-pump alignment uses factory fixtures, including the HX/XP adapter, with shim considerations and steering-nozzle clearance checks.

Shop procedures extend to pump disassembly, bearing and seal replacement, pump pressure testing, drive-shaft and carbon-ring service, reverse adjustment, and VTS repair. XP/HX Direct Action Suspension coverage includes shock and spring removal, boot inspection, and shock-condition checks.

Hull Work and Competition Support

Hull preparation covers straightedge inspection, high and low areas, running-surface truing, transom-edge preparation, and the handbook’s class limits on alterations. PPG Concept and low-VOC Delta refinishing material addresses preparation, primers, spot and panel repair, blending, spray equipment, curing, and paint references.

Body checks include the hull, storage cover, water trap, drain hoses, seat seal, and rear baffle. Lightweight racing parts and short concave, short V-shaped, and long sponsons are discussed with mounting drawings and handling effects.

The handbook warns that cutting sponson-access foam too deeply can damage the hull skin, while poorly sealed mounting holes can admit water. The Shop Manual also describes fiberglass-laminate and gelcoat repairs.

Race-support material covers spare-parts planning, technical inspection, pit presentation, sponsorship, and a setup log for weather, water temperature, carburetion, fuel and oil, ignition, rev limiter, impeller, and intake grate.

Competition guidance reflects the publication’s period; consult the applicable event rulebook before selecting modifications. The handbook warns that racing or modifications void the original Bombardier watercraft warranty.

A Preview of Leak-Test and Rotary-Valve Specifications

For the Shop Manual’s 717/787 engine-cooling-system leak test, the specified pressure is 34 kPa (5 PSI), with a three-minute pressure-retention check.

The rotary-valve chapter specifies 0.30 ± 0.05 mm cover clearance, checked with the cover O-ring removed. It explains how insufficient clearance can cause overheating, while excessive clearance can make starting difficult.
