1988–2003 Bombardier Sea-Doo WSP, SPI, SPX, GTI, GTS, HX, XP GSX, GTX Series PWC Manual (P/N 219 100 031, 219 100 034)

• 1,205 PDF pages across 10 Bombardier factory publications. The set combines the 1996 Shop Manual (P/N 219 100 031), GSX/GTX Shop Manual Supplement (P/N 219 100 034), six model-matched parts catalogs, the 1996 Sea-Doo Racing Handbook, and the 1988–2003 Specification Booklet. The shop documents and Racing Handbook are in English; the parts catalogs and specification booklet are bilingual English/French.

• Full repair procedures are 1996-specific; the 1988–2003 coverage is specification data. The base shop manual names SP 5876, SPX 5877, SPI 5878, GTS 5817, GTI 5865/5866, XP 5858, and HX 5881. The supplement adds GSX 5620 and GTX 5640 differences, while the parts references also identify XP 5859 and GTI 5867.

• Rotax 587, 717, and 787 engine repair is separated by configuration, with engine removal and installation, top-end and bottom-end disassembly, crankshaft inspection and deflection checks, squish-area inspection, rotary-valve service, 787 RAVE work, exhaust-system repair, cooling procedures, and oil-injection pump service.

• Fuel-system diagnosis goes beyond basic carburetor settings. The manual covers circuit inspection and pressurization, leak isolation, air-intake service, and Mikuni BN-38, BN-38I, and BN-40I carburetor removal, cleaning, disassembly, pump-diaphragm testing, needle-and-seat checks, pop-off testing, reassembly, installation, and linkage adjustment.

• Electrical troubleshooting includes ignition timing, magneto, charging, starter, instrument, MPEM, and Digitally Encoded Security System (DESS) checks. It also covers the Bombardier Ignition Tester, diagnostic-beep interpretation, and GSX/GTX Info Center, fuel-level, temperature, speed, compass, tachometer, and VTS-related tests, backed by model-specific GSX and GTX wiring diagrams.

• Propulsion and handling chapters cover aluminum and plastic jet pumps, including removal, disassembly, inspection, reassembly, filling and pressure testing; drive-system inspection; reverse and Variable Trim System repair; steering alignment; HX direct-action suspension; and hull/body adjustment and repair.

Workshop Procedures and Diagnostic Depth

The base manual includes maintenance charts, flushing and lubrication, water-flooded engine recovery, storage preparation, and symptom-based troubleshooting. Fault charts address no-start and hard-start conditions, misfiring, overheating, backfiring or detonation, loss of power, over-revving, jet-pump cavitation or ventilation, and abnormal propulsion noise. They direct the technician to the related fuel, ignition, cooling, engine, or pump section instead of treating each symptom as a stand-alone specification.

Special-tool references include the Bombardier Ignition Tester P/N 295 000 008, engine/jet-pump alignment support P/N 295 000 090, standard alignment shaft P/N 295 000 093, fuel-line pliers P/N 295 000 054, and dedicated pump-gauge arrangements for fuel-system, carburetor, oil-system, and jet-pump pressure tests. The set supports inspection, diagnosis, removal, assembly, adjustment, and repair—not just routine maintenance lookup.

Model-Matched Parts Identification

Six illustrated parts catalogs provide exploded views, item numbers, quantities, descriptions, and Bombardier part numbers: SP/SPI/SPX P/N 219 300 180; HX P/N 219 300 190; XP P/N 219 300 200; GTS/GTI P/N 219 300 210; GSX P/N 219 300 220; and GTX P/N 219 300 230.

Representative exploded views include the crankshaft and pistons, magneto and oil pump, electrical and rear electrical boxes, impeller and impeller housing, VTS motor and trim mechanism, and steering, seat, storage, and hull assemblies. They help match a repair procedure to the correct fastener, bracket, cable, seal, or model-specific part before ordering.

Cross-Year Specifications and Racing Reference

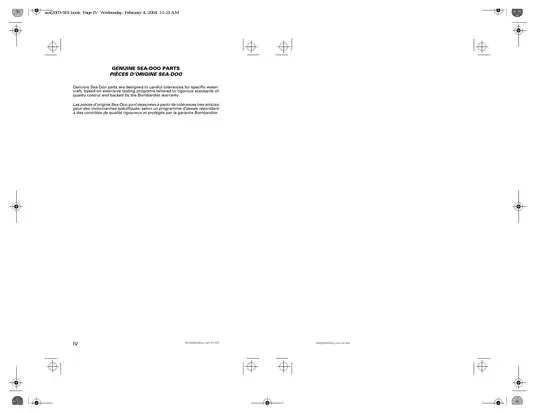

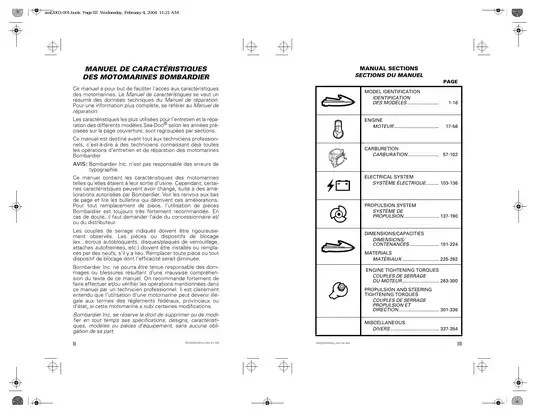

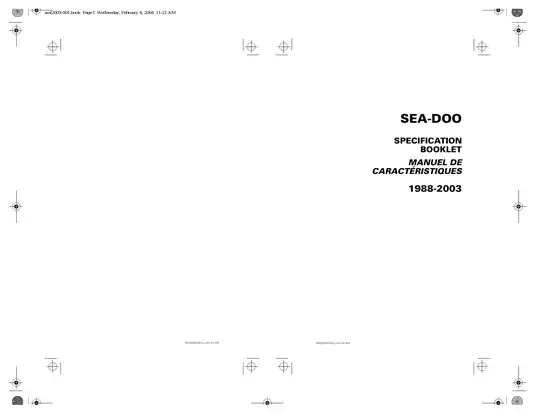

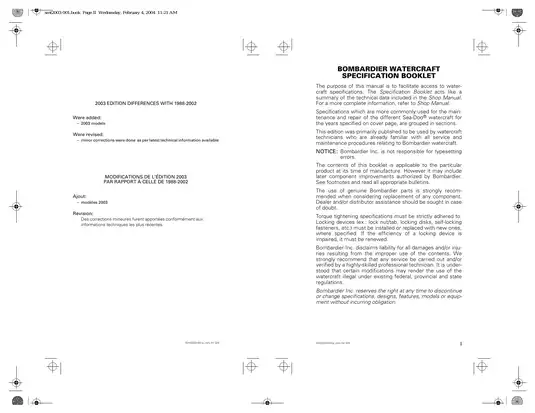

The bilingual 1988–2003 Sea-Doo Specification Booklet, cover-listed as 219 100 171, is a cross-year technical-data summary rather than a step-by-step repair manual. The 2003 edition adds 2003 models and incorporates minor corrections based on the latest technical information available at publication. Its model tables run from the 1988 SP through 2003 GTI LE RFI, RX DI, XP DI, GTX 4-TEC, and GTX 4-TEC supercharged variants. Other sections cover engine, carburetion, electrical and propulsion data, dimensions and capacities, approved materials, engine torque tables, propulsion and steering torque tables, and miscellaneous specifications. The file has 193 PDF pages because many sheets contain two numbered booklet pages; the internal pagination runs through page 354.

The 1996 Sea-Doo Racing Handbook, P/N 219 000 048, covers race-day preparation, hull measuring and truing, body sealing and paint references, lightweight parts, sponsons, engine theory, compression-ratio measurement, RAVE and rotary-valve operation, crankshaft inspection, 1995/1996 cylinder-porting maps, Mikuni BN carburetor tuning, and break-in. Its propulsion material explains axial-flow pump and impeller behavior, engine/jet-pump alignment, VTS, ventilation, cavitation, and steering alignment. It is a racing setup and theory reference; mechanical repair is directed back to the applicable model-year shop manual.

Scope Notes and Repair Cautions

The GSX/GTX supplement is not a stand-alone manual. Systems not repeated there must be serviced with the base 1996 Shop Manual. The base manual’s table of contents lists a separate Section 14 for wiring diagrams, but this PDF copy ends after Section 13, Technical Data. The full model-specific wiring spreads included in the set are the GSX and GTX diagrams in the supplement. GTI 5867 appears in the parts catalog, while the base shop manual’s stated GTI repair coverage is 5865/5866.

Two factory cautions show why model-specific repair data matters. Engine-support shims must retain their recorded positions during removal because they control engine-to-jet-pump alignment; incorrect alignment can cause vibration and drivetrain damage. In the Mikuni carburetor section, loading the needle while bending the metering lever can damage the needle and valve seat.

Engine removal, fuel-system pressurization, ignition testing, and jet-pump repair involve lifting loads, flammable fuel, electrical energy, and rotating components. The Bombardier procedures, warnings, specified tools, and model-specific data should be followed by technicians or experienced owners equipped for this work.
