1990–1999 JCB Hydrapower 801.4, 801.5, 801.6 Mini Excavator Service Manual (P/N 9803/3130)

JCB Hydrapower service manual 9803/3130 covers the 801.4, 801.5, and 801.6 mini excavators, including cable and servo control systems. The cover identifies Issue 1; revised Issue 2 pages are included.

• Hydraulics: Three-section gear pump, rotary coupling, control valves, cylinder repair, and main, auxiliary, servo, and crossline relief-valve testing.

• Track and slew drives: Track-motor disassembly, early slew-motor overhaul, early and later gearbox repair, and hydraulic fault-finding charts.

• Engine repair: KD 103-10 removal, cylinder-head work, piston and connecting-rod inspection, crankshaft repair, and camshaft and timing-gear service.

• Fuel and cooling: Injection timing, injector testing and adjustment, fuel-system bleeding, water-pump inspection, thermostat testing, and fan-belt adjustment.

• Electrical diagnosis: Battery testing, starter and alternator overhaul, regulator operation, charging-system tests, circuit diagram, and wiring harness with connector and wire-color keys.

• Structure and running gear: Boom, dipper, kingpost, and upper-structure removal; control-cable and servo-controller service; steel/rubber tracks, rollers, and recoil units.

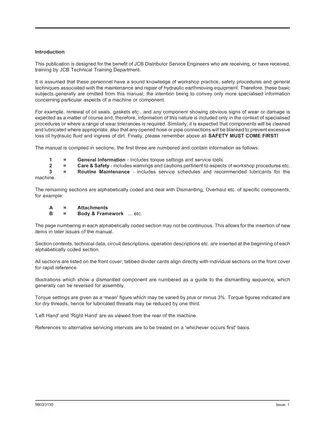

Written for JCB distributor service engineers receiving or having completed JCB training, this manual assumes established workshop skills and experience repairing hydraulic earthmoving equipment.

Hydraulic Circuits and Drive Variants

Hydraulic specifications distinguish the standard models from the 801.5 Power Plus. Main and servo circuit schematics explain pump allocation, load-hold check valves, servo pressure control, and the optional accumulator.

Slew-motor fault charts distinguish early and later assemblies at 801.4 M721137, 801.5 M730004, and 801.6 M728057. Servo-valve arrangements change at 801.4 M722284 and 801.6 M726167; the earlier servo-block relief valves are non-serviceable. These distinctions help match test procedures and replacement assemblies to the installed system.

For the 801.4 from M722497, the Orbitrol slew-motor procedure covers O-ring replacement; other internal motor parts cannot be replaced individually.

Auxiliary-relief-valve bench tests specify test block 892/00252 and hand pump 892/00223. An oil-temperature compensation graph supports main relief-valve testing, while motor fault tables address failure to rotate, uneven speed, creep, and seal leakage.

The pump instructions warn that hammering the coupling off the shaft can damage internal parts. Rotary-coupling service includes seal replacement, with complete-unit replacement specified for a worn core or shell. Main relief-valve damage beyond the O-rings and washer also calls for complete-valve replacement.

Diesel Engine, Fuel System, and Cooling

Engine inspection extends to valve seats and guides, bearing clearances measured with Plastigauge, crankshaft regrind dimensions, piston-ring wear limits, and timing-gear alignment.

Fuel-injection pump coverage is limited to removal, installation, and timing adjustment; internal pump overhaul is outside this manual's scope. Injectors have separate dismantling, spray-pattern, opening-pressure, and leak-tightness checks.

Water-pump procedures cover removal, inspection, and replacement; a defective pump is replaced as an assembly. Thermostat checks accompany the cooling-system procedures.

Electrical Fault Tracing and Mechanical Service

The Alternator–Regulator Circuit diagrams show operation with the engine stopped and at low and high speeds. Voltage Output Test and Regulator N Terminal Voltage Test illustrations support charging diagnosis. The harness key identifies optional servo isolation, two-speed tracking, and beacon circuits.

Track gearbox drawings distinguish early and later floating-seal arrangements. The assembly notes identify a tilted gearbox cover as an O-ring damage risk. Running-gear procedures also cover conversion from rubber to steel tracks; control-cable fitting instructions distinguish lever-lock versions through M722269 and from M722270.

Servo-controller instructions cover replacement of the handle and gaiter (protective boot). The main controller is replaced as a complete assembly when required.

Routine-maintenance references include service schedules, lubricant and capacity tables, the Engine Lubrication Chart, cab/canopy coolant data, and metric grade 8.8 bolt torque tables. Component-specific tightening data cover slew rings, hydraulic fittings, and track rollers.

Review the manual's safety procedures before work involving raised attachments, pressurized hydraulics, or the recoil spring.

A Preview of Valve and Servo Test Specifications

These examples are a small selection of the engine and hydraulic specifications in the manual. For the KD 103-10 engine, cold intake and exhaust valve clearance is 0.2 mm.

Servo testing on the 801.4 and 801.6 specifies hydraulic oil at 30–40°C. The corresponding data list relief pressure at 41.5–44.5 bar and pressure-maintenance pressure at 30–33 bar.

PDF Navigation and Included Pages

Text search and diagram detail: The technical text cannot be searched using ordinary words. Eleven embedded bookmarks provide navigation to the cover and main sections. Small wiring and hydraulic diagram labels are readable when enlarged.

One English, printable 199-page PDF, including one cover, one introduction page, and 13 blank or divider pages. All are already included in the total.
