2005–2006 Triumph Speed Triple 1050 Service Manual (P/N T3856080)

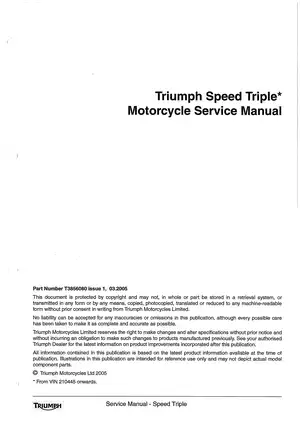

This 379-page PDF is the Triumph Motorcycles Ltd. factory service manual P/N T3856080, issue 1, 03.2005, for the Triumph Speed Triple from VIN 210445 onward. Coverage is limited to the Speed Triple identified on the OEM cover, and the VIN break is the controlling fitment check. The manual covers the 1050 cc, liquid-cooled, transverse inline three-cylinder, 12-valve DOHC engine together with the motorcycle’s fuel-injection, chassis, suspension, braking, and electrical systems.

• Internal engine and transmission repair: Covers engine removal/refit; cam cover, camshafts, valve-clearance inspection and adjustment, cam-chain and cylinder-head service; crankcase splitting; crankshaft and connecting-rod bearing selection; pistons, liners, balancer, clutch, transmission shafts, selectors, sprag clutch, oil pump, sump, and oil cooler work.
• ECM diagnostics and adjustment: Documents use of Triumph tool T3880250 for current data, freeze-frame data, DTC retrieval and clearing, actuator function tests, throttle balancing, adaptation reset, TPS and idle-stepper replacement routines, build-data checks, and tune updates.
• Pinpoint fault isolation: Provides circuit-specific tests for the crankshaft-position sensor, injectors, ignition coils, idle control, throttle-position sensor, coolant and intake-air sensors, fuel-pump and cooling-fan relays, lambda circuit, CAN instrument communication, vehicle-speed input, fuel-level sender, and MAP/barometric sensors.
• Chassis, suspension, and brake repair: Details drive-chain adjustment and replacement, swingarm and eccentric rear-hub service, final-drive bearings, suspension linkages, fork-oil replacement and fork disassembly, headstock bearings, wheel bearings, brake bleeding, fluid renewal, calipers, master cylinders, discs, and pads.
• Electrical diagrams and routing: Maps fuse and relay assignments, battery commissioning, instruments, starter, alternator, and rectifier service. Diagram coverage includes the engine-management, lighting, starting/charging, auxiliary/accessory, and complete-system circuits, plus main-harness and hose/cable routing views.
• Factory specifications and workshop data: Supplies the scheduled-maintenance chart, component-specific torque settings, capacities, pressure-test data, fork-oil level information, inspection and wear limits, bearing-clearance and selection charts, valve-adjustment data, and electrical test values.

Factory Repair and Diagnostic Scope

The engine sections go well beyond routine maintenance. Cylinder-head work includes camshaft and bearing-cap inspection, valve-clearance measurement and shim adjustment, cam-chain service, cylinder-head removal, and valve/stem-seal work. Bottom-end coverage includes matched crankcase assembly, crankshaft and connecting-rod inspection, bearing-shell selection, piston and ring checks, cylinder-liner removal and installation, and balancer alignment. The transmission chapter covers the selector shaft, forks and drum, input and output shafts, individual gear inspection and assembly, bearings, and the starter-drive/sprag-clutch system.

Fuel-system coverage includes the tank, pump, filter, level sender, pressure checking, airbox, intake sensors, throttle cables, throttle bodies and injectors, exhaust, secondary-air injection, and California-model evaporative controls. The emissions specifications also distinguish market-dependent catalyst and lambda-sensor fitment. Cooling repair covers coolant replacement, the water pump, pressure cap, thermostat, radiator, and fan.

The suspension scope is clearly defined. Front-fork coverage includes oil replacement, the fork-oil level chart, disassembly, inspection, and assembly. Rear suspension coverage addresses the suspension unit’s removal, inspection, and installation, along with the drop/drag links, swingarm, rear hub, final-drive bearings, and chain; it does not contain an internal rear-shock overhaul chapter.

Diagrams, Specifications, and Service Tools

Exploded views support work on the camshaft drive, crankshaft/connecting-rod/piston/liner assembly, transmission shafts and selectors, oil pump, fuel rail and injectors, rear hub/final drive, brake hydraulics, wheels, and electrical assemblies. The special-tool section identifies equipment such as T3880250 Engine Management Diagnostics, T3880001 Fuel Pressure Gauge, T3880305 Clutch Anti-rotation Tool, T3880315 Cylinder Liner Extractor, T3880365 Alternator Rotor Puller, T3880003 Fork Seal and Bush Fitment tool, and T3880067 Fork Spring Compressor. The PDF provides the factory repair procedures and reference data, but tool-dependent operations still require the specified equipment.

Two easy-to-miss warnings show the manual’s level of repair detail: rotating the engine with the cam chain and tensioner disconnected can cause piston-to-valve contact, while incorrect fifth-gear oil-hole orientation on the output shaft can reduce lubrication and lead to severe engine damage. Work on the fuel, brake, suspension, electrical, and internal-engine systems requires proper support, calibrated measuring equipment, and the relevant service tools. The manual is written primarily for trained technicians, although experienced owners can use it for maintenance and repair when they have the necessary background and equipment.
