1997–2002 Hyundai Robex 55-3 (R55-3) Crawler Excavator Service Manual (P/N R55NM2SP08)

Covers 1997–2002 Hyundai Robex 55-3 and R55-3 crawler excavators equipped with the Yanmar 4TNE94 engine. This service manual documents hydraulic, electrical, swing and travel drive, and undercarriage service and repair.

Text search and diagram detail: Main text is searchable, with PDF bookmarks for major sections and component groups. Many schematic labels are outside the searchable text, and small wiring labels require zooming.

• Hydraulic pump: Double-piston and geared-pump disassembly, inspection, and reassembly, with control-system explanations and separate procedures for the geared-pump variants.

• Control valves: SC3A and BCV65 main control valve repair, relief-pressure adjustment, RCV lever structure, and remote control valve removal and reassembly.

• Travel and swing drives: Motor and reducer disassembly and assembly, parking-brake and speed-change mechanisms, plus TM07VA performance verification tests.

• Performance testing: Operational Performance Test procedures for travel deviation, swing drift, cylinder cycle times, and Testing and Adjusting Hydraulic Pressure.

• Electrical diagnosis: Serial-specific wiring diagrams, Component Location maps, Electrical Circuit Operation, Monitoring System connector tables, and symptom-based troubleshooting.

• Undercarriage inspection: Steel and rubber shoes, Track Frame and Tension Spring, Swing Circle, and work-equipment inspection limits and wear specifications.

Suited to technicians familiar with excavator hydraulics and electrical fault tracing, with access to pressure gauges, lifting equipment, and the specified assembly jigs.

Structural and Hydraulic Walkthrough

Section 2 breaks down the structure and function of the hydraulic circuit. It examines the main control valve, pump assembly, swing machinery, and travel device. The Power Train layout and RCV lever cross sections explain component connections and pilot-control operation.

Valve variants: The SC3A applies through #0616. Its dozer section is manually operated through #0580 and pilot operated from #0581 through #0616; the BCV65 starts at #0617. These distinctions help match the valve layout and pressure-testing information to the machine before diagnosing a hydraulic fault.

Pump and joint repair: Geared-pump procedures separate the earlier G1/GSP2 arrangement through #1416 from the P3/P4 arrangement at #1417 and up. Main-pump coverage explains the single swash plate and constant-output control and provides piston, cylinder-block, and control-plate inspection criteria. Turning-joint instructions cover shaft removal and seal replacement.

Pump startup cautions address damage from inadequate oil filling and trapped air after hydraulic work. Maintenance guidance covers filter checks and replacement, oil-change conditions, and hydraulic oil preheating for cold-weather operation.

Travel Motors and Swing Machinery

The GM09VL and TM07VA travel-drive sections cover different reduction arrangements. Tool lists include spring retainers, bearing-adjustment tools, and an inversion workbench.

The GM09VL instructions exclude internal disassembly of the RV gear subassembly; TM07VA coverage includes planetary-reducer work and post-repair tests using either a test apparatus or the machine. The GM09VL repair notes explain that separating the piston from its shoe damages the assembly.

Swing variants: Component drawings distinguish SG015E motors through #1447 from JMF39 motors at #1448 and up. The teardown section does not provide a separate JMF39 overhaul procedure. Reducer disassembly and assembly cover the SG015E through #0915 and SB50 from #0916 onward.

Electrical Troubleshooting and Monitoring

The A-series and B-series wiring sheets document different machine and console circuits, including revisions at #0860/#0861 and #1538/#1539. Early-machine sheets also carry serial-specific exception lists.

Starting Circuit, Charging Circuit, and Monitoring Circuit diagrams accompany connector identifiers and electrical checkpoints. Troubleshooting charts address an absent monitor display, engine no-start, charging warnings, and travel-speed switching faults, with voltage checks and sensor-resistance tables.

Technical Data and Maintenance Specifications

Section 1 outlines general machine specifications, detailing lifting capacities and bucket selection guides. Component-weight data cover the upperstructure, lower chassis, and individual assemblies.

Performance tests compare machine behavior with standard values and service limits. Maintenance tables provide cylinder and work-equipment pin/bushing clearances, track and roller wear limits, and swing-bearing checks. Component-specific torque specifications, fluid capacities, recommended oils, and engine-speed test data support the repair sections.

Engine scope: Yanmar 4TNE94 coverage consists of specifications and associated machine-system checks; this manual does not contain internal engine overhaul procedures.

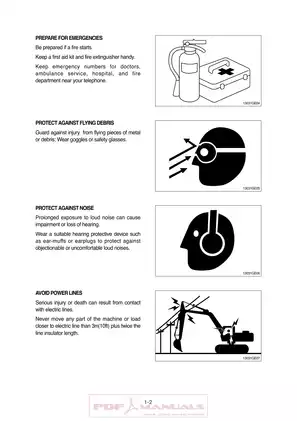

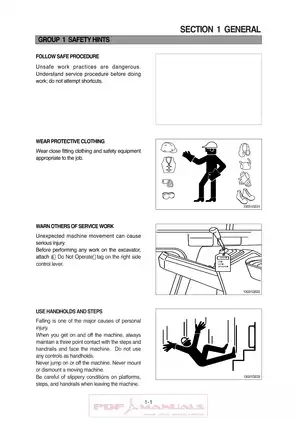

Always adhere strictly to the documented safety protocols before initiating any service procedures, including precautions for raised attachments and stored hydraulic pressure.

PDF Contents and Page Count

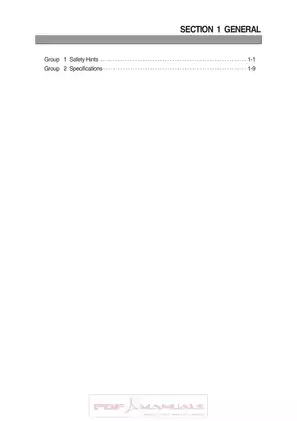

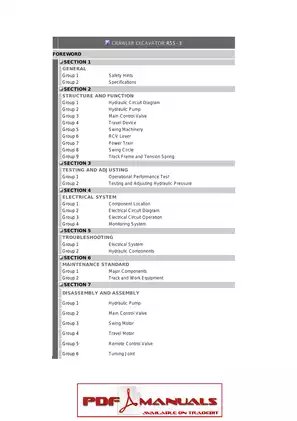

The manual is supplied as one printable, English-language 329-page PDF: 321 technical and safety pages, six section-overview pages, one contents page, and one supplier-branded cover. All cover, contents, and section-overview pages are included in the total.
