Massey-Ferguson Models Covered & Key Technical Specifications

6475, 6480, 6485, 6490, 6495, 6499, 6497, 6470, 6465, 6460, 6455, 6445, 6400 Series / Massey Ferguson Corporation

Production years: 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013


Sub-models / Variants:

6445 / 6455 — Dynashift (GBA20) and Dyna-6 Tier 2 (GBA25): Perkins 1104C-44T; engine list numbers RG 37832 for 6445 and RG 37826 for 6455. Dyna-6 Tier 3 (GBA25): Perkins 1104D-E44TA.

6460 / 6470 — Dynashift (GBA20) and Dyna-6 Tier 2 (GBA25): Perkins 1104C-E44TA; engine list numbers 43942 for 6460 and 43943 for 6470. Dyna-6 Tier 3 (GBA25): Sisu 44 CWA.

6465 / 6475 / 6480 — Dynashift (GBA20) and Dyna-6 Tier 2 (GBA25): Perkins engines; engine list numbers VK 31483 for 6465, VK 31484 for 6475, and VK 31485 for 6480. Dyna-6 Tier 3 (GBA25): Perkins 1106D-E66TA.

6485 / 6490 / 6495 — Dynashift (GBA10): Sisu Fortius 66ETA. Dyna-6 (GBA15): Sisu Citius 66CTA.

6497 — Dynashift (GBA10): Sisu Fortius 66ETA. Dyna-6 (GBA15): Sisu Citius 74CTA.

6499 — Dynashift (GBA10): Sisu Fortius 74ETA. Dyna-6 (GBA15): Sisu Citius 74CTA.

Serial-number breaks: The following identify software or equipment versions addressed in the manual.

Sisu EEM2 engine software: 6485 — up to N258068 / from N258069; 6490 — up to N342061 / from N342062; 6495 — up to N344031 / from N344032; 6497 — up to N345039 / from N345040; 6499 — up to N307025 / from N307026.

Vistronic introduction, DCC2 Dynashift configurations: 6480 — from N285074; 6485, 6490, and 6495 — from N295045; 6497 and 6499 — from N348018.

North American roof indicators and warning lights, GBA20/GBA10 configurations: up to N145024 / from N145025, with separate diagrams for tractors with and without fender extensions.

Massey-Ferguson Manual Features & Selected Content Preview

Massey Ferguson’s Workshop Service Manual, P/N 3378405M4, covers 6400 Series tractors 6445, 6455, 6460, 6465, 6470, 6475, 6480, 6485, 6490, 6495, 6497, and 6499.

Searchable Chapter PDFs and Diagram Detail

Text search, bookmarks, and drawings: All twelve files provide searchable text and embedded bookmarks for chapters and subsections. The cover has no searchable text. Small pin numbers and wire codes in the checked Electrical Equipment, Electronics, and Cab and Equipment diagrams are readable when enlarged.

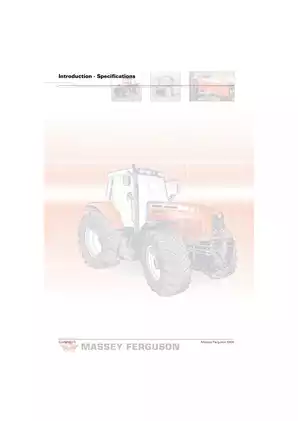

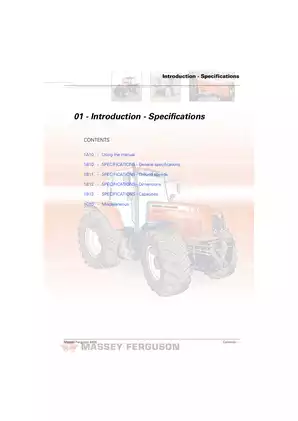

The RAR download contains 12 printable PDFs totaling 4,029 pages, including the cover, contents pages, and blank pages. Chapter lengths are Introduction and Specifications: 73, including the one-page cover; Splitting the Tractor: 206; Engine: 68; Gearbox: 482; Rear Axle: 484; Power Take Off: 262; Front Axle: 370; Hydraulics: 622; Electrical Equipment: 186; Electronics: 1,150; Cab and Equipment: 88; and Accessories: 38.


Tractor Splitting, Drivetrain Repair, and System Diagnostics

These selected contents outline the main workshop coverage. Other topics include auto-hitch mechanisms and service of the two-wheel-drive front axle beam.

  • Engine work and tractor splitting: Perkins and Sisu injection-pump and controller replacement, pump timing, engine spacers, and separation of major tractor assemblies.

  • Transmission and PTO repair: PowerShuttle, Dynashift, and Powershift service; GBA25 robotic gearbox repair; creeper units; and PTO clutch, brake, and shaft work.

  • Axles and final drives: GPA20, GPA30, and GPA40 rear-axle repair, plus Carraro, Carraro 20.48, and Dana front-axle service and suspension troubleshooting.

  • Hydraulic diagnosis: Open Center, Load Sensing, and Twin Flow Load Sensing pressure and flow tests, pump service, steering repair, and brake-control procedures.

  • Electronic troubleshooting: WINTEST procedures, error codes, programming, calibration, and wiring diagrams for engine, transmission, hitch, implement-control, and suspended-front-axle systems.

  • Cab and accessories: Pneumatic cab-suspension diagnosis, standard and automatic air-conditioning service, front-linkage hydraulics, and Zuidberg front-PTO repair.

AGCO prepared this manual to assist dealers and agents; the repair procedures, service-tool references, and calibration work suit professional technicians or equivalently experienced mechanics with the proper shop equipment.

Perkins and Sisu Engine Scope

The engine chapter covers fuel, oil, and coolant requirements; EEM/EEM2 controller replacement; injection-pump removal and installation; pump timing; and ECU-to-pump serial-number matching. It also addresses spacers and engine/transmission links, but does not provide a full internal engine overhaul manual for crankshaft, piston, connecting-rod, or cylinder-head rebuilding.

Splitting procedures distinguish Perkins and Sisu front-frame arrangements, the dedicated MF 6497–6499 front-frame split, engine-to-gearbox and gearbox-to-center-housing separation, and PTO housing removal. GPA30 intermediate-housing work and GTA1030/GTA1040 reinforcements have separate sections.

Gearbox and PTO Service Depth

Configuration tables distinguish GBA20/GBA10 Dynashift from GBA25/GBA15 Dyna-6 transmissions. Step-by-step procedures address module teardown, GBA25 shaft service, selector-rail and fork adjustment, creeper and Super Creeper units, clutch packs, shaft shimming, PTO brakes, and final operating checks.

The GBA15 section focuses on operating descriptions, assembly views, synchronizer inspection, illustrated dismantling stages, and transmission specifications.

Incorrect laminated-shim placement in the GBA10 mainshaft assembly can damage the shim stack under load; the manual identifies the required relationship between the shim, housing, and bearing components.

Differentials, Final Drives, and Suspension

Rear-axle sections distinguish normal-duty, heavy-duty, sealed heavy-duty, and composite-drive trumpet housings. They also cover brake pistons, drive pinions, and five- and seven-inch differential assemblies and locks.

Front-axle instructions extend to wheel hubs, 4WD clutches, suspension arms, steering geometry, differential shimming, and backlash checks. Carraro differential sections distinguish the two adjustment nuts and require replacement of the ring nut and flexible spacer; incorrect assembly or reuse can compromise bearing preload and ring-and-pinion adjustment.

Hydraulic Circuits, Brakes, and Steering

System-specific sections cover hydraulic pumps and covers, mechanical and electrohydraulic auxiliary valves, hitch-control valves, assisted and trailer brakes, ParkLock, Orbitrol steering, steering rams, and suspended-front-axle control units.

The GBA20 reverse-shuttle hydraulic circuit and GTA1040, GTA2020, and GTA2520 Load Sensing diagrams accompany the corresponding tests. These separate circuit descriptions help a mechanic select checks that match the installed hydraulic and transmission configuration.

Controller Diagnostics and Wiring

Electronic coverage includes Perkins EEM, Sisu EEM2, DCC2, Autotronic 3 and 5, EHRC linkage, Datatronic 2 and 3, SMS/FingerTIP, ParkLock, and Carraro/Dana suspension controllers. Controller-specific sections provide fault descriptions, test routines, parameter settings, and calibration procedures.

The SisuDiesel software tables distinguish early and later engine software by tractor serial number. Programming and calibration work require the referenced WINTEST or WinEEM2 diagnostic tools.

Drawing examples include the Perkins EEM complete CAN network, Sisu EEM2 connector and wiring diagrams, DCC2 Dyna-6/Autotronic 5 schematics with harness parts lists, and Carraro/Dana suspended-axle component layouts.

Cab, Air Conditioning, and Front Equipment

Cab-suspension coverage includes pneumatic checks and symptom/cause charts. Air-conditioning sections address fault diagnosis, leak testing, evacuation, recharging, pressure checks, and automatic-system electrical diagrams.

The accessories chapter explains front-linkage operating modes and provides Zuidberg front-PTO removal, clutch disassembly, inspection, reassembly, and troubleshooting procedures.

Workshop References and Special Tools

Reference sections supply ground speeds, dimensions, fluid capacities, metric and inch fastener torque tables, component tightening data, and sealing products. Repair chapters add inspection limits, clearances, shimming data, pressure-test specifications, and electrical values.

Tool references include the 3378225M11 PowerShuttle housing sling, 3376920M2 planet-carrier compression tool, and Carraro CA119030 square-head wrench, alongside drawings for locally made fixtures.

Tractor splitting, axle and cab support, and hydraulic testing involve suspended loads and stored pressure. Follow the manual’s support, lifting, isolation, and component-specific tightening requirements.

Examples of Shaft, Differential, and CAN Test Specifications

For the GBA25 robotic mechanical gearbox, the secondary-shaft shimming section specifies a P3 bearing preload of 0.05–0.15 mm. The Dana front-differential section gives ring-and-pinion backlash of 0.15–0.25 mm.

Sisu EEM2 CAN-loop diagnosis includes a resistance specification of 120 ohms ±10% between ECU pins 44 and 20, with the Bosch VP injection-pump connector disconnected.
