1994 Arctic Cat Tigershark Service Manual
Covers Barracuda, Daytona, Monte Carlo, Montego & Montego Deluxe models with detailed procedures for engine, fuel system, jet pump, electrical, steering, and hull systems. Ref: 0644-037

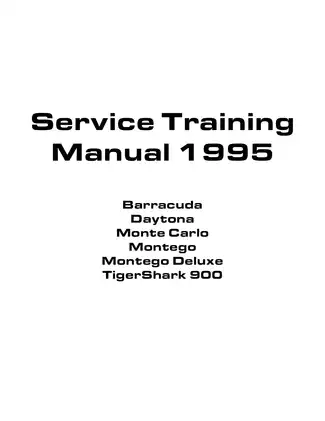

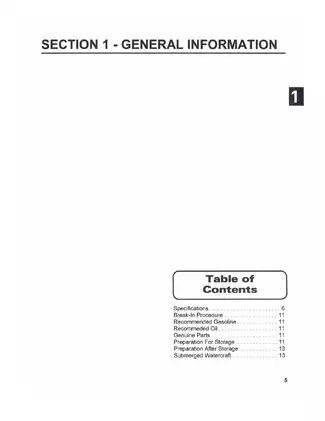

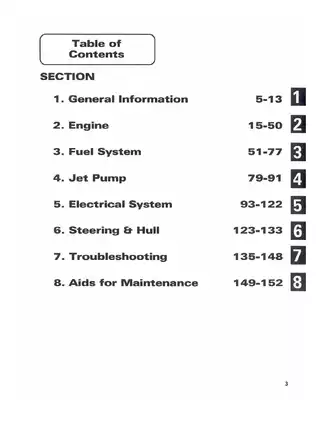

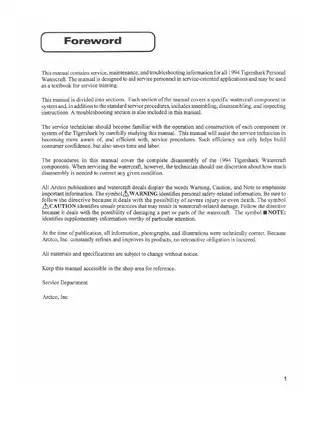

Manual Preview
Sample pages from the 1994 Arctic Cat Tigershark Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Arctic Cat Tigershark (0644-037) - 1994
Arctic Cat Tigershark Barracuda / Daytona / Monte Carlo / Montego / Montego Deluxe | Procedural Specification Toolkit.
- Calibrated Moment Values: For jet pump assembly, 165 in.-lbs. (18.6 N·m) indicates the correct torque for the impeller shaft nut.
- Rated System Volume: The engine requires 4.7 L (5.0 U.S. qt.) of fuel and oil mixture for optimal operation.
- Published Alignment Specs: The crankpin diameter must be within 20.000-20.030 mm (0.7875-0.7874 in.) for proper engine alignment.
- Authorized Thermal Limits: For safe operation, the ambient temperature range is between 15-30C (59-86F) defining the environmental limit Protocol.
- Maximum Linear Velocity: The Tigershark drive unit is designed to handle speeds up to 84 kg (185 lb) for carrying capacity.
- Documented Assembly Torques: The cylinder head requires 10 N-m (7.4 ft-lb) for secure engine assembly Topology.
Professional Workshop Service Manual & Technical Specifications
Arctic Cat Tigershark Service Manual: 1994 Models - Maintenance & Diagnostics
Technical-Scope: Engine, Fuel System, Jet Pump, Electrical System, Steering, Hull // Engine-Type: 2-Stroke, 2-Cylinder // Product-Line: Personal Watercraft (PWC) Logic.

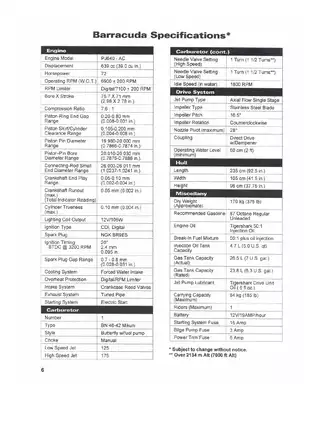

Specifications Overview
| Engine Model | Barracuda | Daytona | Monte Carlo | Montego | Montego Deluxe |
|---|---|---|---|---|---|
| Displacement | 639 cc | 639 cc | 639 cc | 644 cc | 644 cc |
| Horsepower | 72 | 72 | 72 | 62 | 62 |
| Bore X Stroke | 75.7 x 71 mm | 75.7 x 71 mm | 75.7 x 71 mm | 78 x 71 mm | 78 x 71 mm |
| Compression Ratio | 7.6 : 1 | 7.6 : 1 | 7.6 : 1 | 6.8 : 1 | 6.8 : 1 |
Consistently demanding exceptional performance requires adherence to manufacturer specifications. This manual offers comprehensive documentation for all 1994 Arctic Cat Tigershark Personal Watercraft models, including the Barracuda, Daytona, Monte Carlo, Montego, and Montego Deluxe. It serves as an essential text for service personnel, detailing procedures for routine maintenance, advanced troubleshooting, and specific system diagnostics.
Wiring diagrams are provided for electrical system diagnosis and repair, ensuring clear understanding of component interconnections.
Fuel system procedures are documented for carburetor and fuel pump servicing, including disassembly, cleaning, and reassembly instructions essential for maintaining optimal fuel delivery.
Adjustment procedures are detailed for steering and throttle cable systems, critical for responsive handling and user control.
Timing procedures are documented for ignition and engine systems, ensuring precise performance and reliable starting.
Technical notes are provided for specialized procedures, including jet pump maintenance and hull integrity checks, to support longevity and peak operational efficiency.
This manual documents torque specifications for engine components to ensure proper mating surface contact and assembly integrity.
