1991-1997 Kawasaki ZR550 / ZR750 Zephyr Workshop Manual

Kawasaki Zephyr workshop documentation covers in-line four-cylinder engines (553cc/750cc), clutch systems, transmission overhaul, and complete suspension tuning specifications. Includes carburettor synchronization, valve clearance adjustment, and electrical system diagnostics.

4.6starstarstarstarstar_half(5)
visibility Preview Available
Kawasaki 1991-1997 Kawasaki ZR550 / ZR750 Zephyr Workshop Manual manual page preview - page 1 of 261

Sample pages from the 1991-1997 Kawasaki ZR550 / ZR750 Zephyr Workshop Manual manual

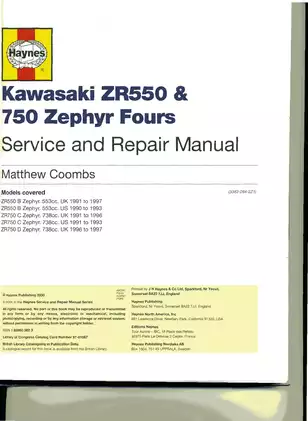

Kawasaki 1991-1997 Kawasaki ZR550 / ZR750 Zephyr Workshop Manual manual preview page 1 - thumbnail
Kawasaki 1991-1997 Kawasaki ZR550 / ZR750 Zephyr Workshop Manual manual preview page 3 - thumbnail

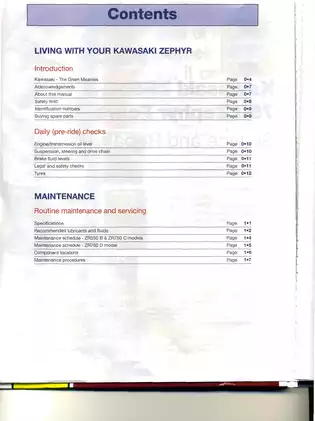

Kawasaki 1991-1997 Kawasaki ZR550 / ZR750 Zephyr Workshop Manual manual preview page 4 - thumbnail

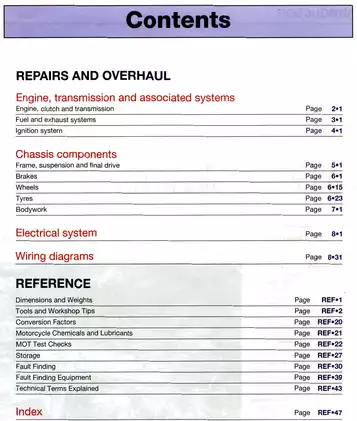

Kawasaki 1991-1997 Kawasaki ZR550 / ZR750 Zephyr Workshop Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$18.39 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Kawasaki Models Covered & Key Technical Specifications

Models: Kawasaki ZR550 Zephyr, Kawasaki ZR750 Zephyr
Sub-models / Variants: ZR550 B1, ZR550 B2, ZR550 B3, ZR550 B4, ZR550 B5, ZR550 B6, ZR750 C1, ZR750 C2, ZR750 C3, ZR750 C4, ZR750 C5, ZR750 D1
Build Years: 1990–1997
Serial Numbers: ZR550B-004001 on, ZR550B-012001 on, ZR550B-022001 on, ZR550B-030001 on, ZR550B-036001 on, ZR750C-000001 on, ZR750C-018501 on, ZR750C-035001 on, ZR750C-040001 on, ZR750C-050001 on, ZR750D-000001 on, JKAZRFB1LA000001 to 004000, JKAZRFB1MA004001 on, JKAZRFB1NA012001 to 022001, JKAZRFB1PA022001 on, JKAZRDC1MA000001 to 018500, JKAZRDC1NA018501 on, JKAZRDC1*PA035001 on
Technical Data:

  • Engine type: Four-stroke DOHC in-line four-cylinder
  • Engine displacement: 553 cc (ZR550), 738 cc (ZR750)
  • Compression ratio: 9.5:1
  • Bore: 58.0 mm (ZR550), 66.0 mm (ZR750)
  • Stroke: 52.4 mm (ZR550), 54.0 mm (ZR750)
  • Transmission: 6-speed constant mesh (ZR550), 5-speed constant mesh (ZR750)
  • Clutch type: Wet multi-plate
  • Final drive: Chain and sprockets
  • Cylinder head bolt torque (ZR550): 8 mm nuts 25 Nm, 6 mm nuts 9.8 Nm, 6 mm bolts 12 Nm
  • Cylinder head bolt torque (ZR750): 10 mm nuts 39 Nm, 8 mm bolts 29 Nm
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
24846 / Andrew Rogers
File Size:
166.91 MB
File Type:
PDF
Language:
English
Pages:
261
Printable:
Yes
Category:
Motorbike
Last updated / verified
Nov 10, 2025

Kawasaki Manual Features & Content Preview

Kawasaki ZR550 & ZR750 Zephyr 1991–1997 Technical Documentation

  • Covers 1991–1997 Kawasaki ZR550 and ZR750 Zephyr motorcycles, documenting the 553 cc and 738 cc DOHC in-line four-cylinder engine configurations
  • Official Haynes publication P/N 3382, covering the 1990–1997 Zephyr four-cylinder model range
  • Contains 127 detailed exploded-view diagrams and 32 maintenance-focused photography chapters for engine, chassis, and electrical service
  • Delivered as a direct download the moment payment clears
  • Indexed PDF search covers every chapter and appendix
  • Re-download the file any time, no expiration
  • Page spreads stay legible when printed at original size
  • This 261-page edition remains the primary reference for the B-series and C/D-series Zephyr build architecture, detailing valve shim selection charts and transmission shaft assemblies

Engine and Maintenance Walkthrough

This 1991–1997 Kawasaki ZR550 Zephyr and 1991–1997 Kawasaki ZR750 Zephyr workshop manual details routine servicing and engine overhaul procedures. The technical prose explores routine maintenance schedules, valve clearance checks, carburetor synchronization, and drive chain adjustment. Chapters segment the motorcycle into engine, transmission, fuel, exhaust, chassis, and electrical systems. Specific focus is placed on component location, fastener torque settings, and fluid capacity requirements for consistent mechanical operation.

Specification and Reference Data

This 1991–1997 Kawasaki ZR550 Zephyr and 1991–1997 Kawasaki ZR750 Zephyr manual provides comprehensive technical data for engine assembly, cooling system pressures, and chassis tolerances. Valve clearance for the ZR550 intake is listed at 0.10–0.20 mm in the engine specification table. Intake camshaft lobe height for the ZR750 is specified at 36.245–36.353 mm. Engine oil capacity for a ZR550 oil and filter change is documented at 2.7 liters. Detailed shim selection charts for both 550 and 750 models provide precise guidance for maintaining valve lash within factory tolerances. Reference sections include fault-finding diagnostics and electrical wiring diagrams. Qualified technicians and the original OEM documentation remain the authoritative source for any hands-on work. An official 261-page Haynes OEM workshop manual covering the 1991–1997 Kawasaki ZR550 Zephyr and 1991–1997 Kawasaki ZR750 Zephyr, documenting engine, chassis, electrical, and powertrain maintenance specifications for the Zephyr Fours build.

Manual FAQ, Purchase & Download Details

Is the Kawasaki ZR550 Zephyr from the 1991 to 1997 period included in this manual? keyboard_arrow_down

Document covers the Kawasaki ZR550 B and ZR750 C and D series models for the specified production years.

Can I find lubricant and fluid capacity data within the specification tables? keyboard_arrow_down

Manual includes comprehensive specification tables listing recommended oil types, viscosities, and capacities for both engine and transmission systems. These sections serve as a reference for fluids and lubricants relevant to the covered Zephyr models.

Does the manual contain wiring diagrams and electrical reference information? keyboard_arrow_down

Electrical system sections in the document provide access to detailed wiring diagrams and connector references. These pages are designed to show the layout of the harness and associated electrical components across the bike. Technical specification tables within the electrical sections also categorize various reference values for the charging and ignition systems.

Are there component location diagrams or exploded views shown in the text? keyboard_arrow_down

Document includes visual guides that show component locations for both the left and right sides of the motorcycle.

Which publication cues or edition details are present to identify this document? keyboard_arrow_down

Shop manual is identified by the Haynes Service and Repair Manual series publication number 3382. It references specific model year ranges for the ZR550 and ZR750 Zephyr series on the cover and introductory pages.
