Suzuki Savage LS650 1986–2004 Service & Repair Manual
363 Pages • 1 Printable PDF (English) • Download
Suzuki Models Covered & Key Technical Specifications
Models: Savage LS650 (4-speed and 5-speed manual transmissions)
Model Years: 1986–2004 (1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004)
-
Engine: Air-cooled 4-stroke single cylinder
-
Camshaft: Single overhead camshaft
-
Valve adjustment (intake/exhaust): 0.08–0.13 mm (0.003–0.005 in.)
-
Cylinder compression: 1000–1400 kPa (145–203 psi)
-
Spark plug gap: 0.8–0.9 mm (0.031–0.035 in.)
-
Idle speed: 1000–1200 rpm
-
Engine oil capacity (oil change): 1.8 liters (1.9 US qt.)
-
Clutch free play: 3 mm (0.12 in.)
-
Front brake caliper mounting bolt torque: 25–40 N·m (18–29 ft-lb.)
-
Cylinder head nut torque (9 mm): 29–33 N·m (21–24 ft-lb.)
Suzuki Manual Features & Selected Content Preview
This service and repair manual covers the 1986–2004 Suzuki Savage LS650, including U.S. crankcase-breather and California evaporative-emission information. Coverage ends with the 2004 Savage and excludes later Boulevard S40 editions.

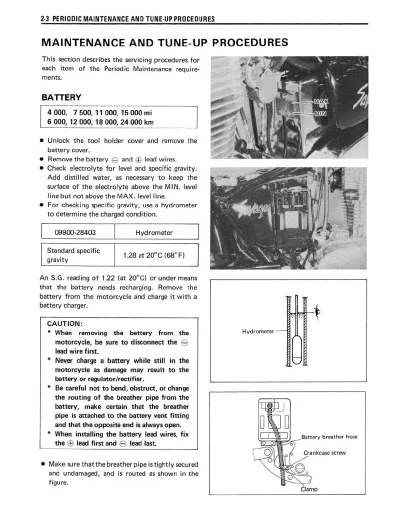

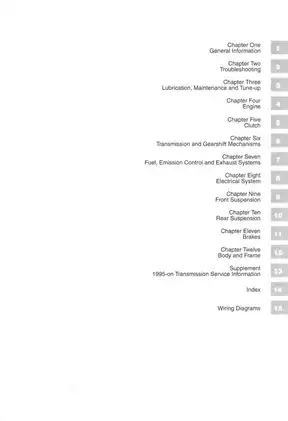

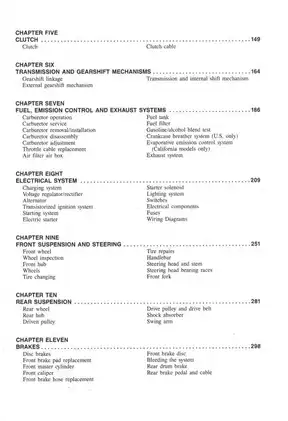

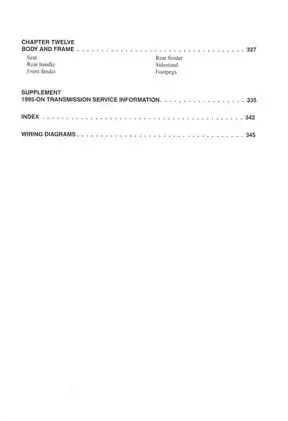

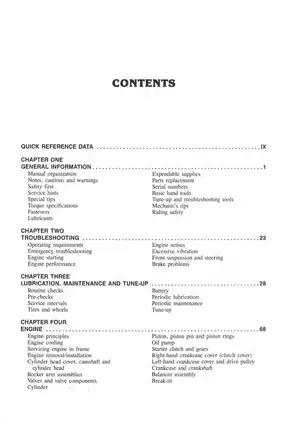

PDF Search, Bookmarks, and Included Sections
Search and diagram detail: Manual content is not text-searchable. Embedded bookmarks open the chapters, transmission supplement, index, and wiring diagrams. Small circuit labels and connector numbers are best read with zoom.
One printable, 363-page PDF in English, including six preliminary pages, 334 pages of main chapters, a seven-page transmission supplement, a three-page index, and an 11-page wiring-diagram section. The total also includes one cover page and one maintenance-log page.
Engine Overhaul, Drivetrain Service, and Electrical Tests
These selected sections outline the main repair coverage. Other topics include spoke adjustment and instrument-cluster removal.
-
Engine repair: Engine removal and overhaul, cam timing, valve and guide service, cylinder and piston inspection, piston-ring checks, and lower-end repair.
-
Clutch and transmission: Wet multi-plate clutch and release-mechanism service, cable replacement, gearshift linkage, external and internal shift mechanisms, and gearbox disassembly and inspection.
-
Belt final drive: Drive-pulley, toothed-belt, driven-pulley, and rear-hub service, with belt inspection, alignment, and tension adjustment.
-
Fuel and emissions: Carburetor operation, overhaul, and adjustment; throttle-cable, fuel-tank, filter, and air-box service; U.S. breather and California evaporative systems.
-
Electrical diagnosis: Charging-output and alternator tests, transistorized ignition, signal-generator and ignition-coil checks, starter-motor inspection, starter-solenoid testing, and automatic-decompression control.
-
Chassis and brakes: Wheel and steering-head bearings, fork overhaul, swingarm and shock service, front-disc hydraulic service and bleeding, and rear-drum brake repair.
-
Reference data: Component torque tables, clearances, wear limits, fluid capacities, gear and belt specifications, electrical test values, troubleshooting tables, and illustrated special-tool callouts.
Suited to owners who are reasonably handy with tools, with press work, precision measurement, and complex electronic testing requiring appropriate skills and shop equipment.
Troubleshooting and Engine Repair
The troubleshooting material works through starting faults, poor engine performance, abnormal noises, vibration, steering or suspension problems, and brake complaints. Symptom-based checks help relate a complaint to possible fuel, compression, ignition, or mechanical causes before component disassembly.
Engine coverage extends from in-frame service to step-by-step removal, disassembly, inspection, and reassembly. It includes camshaft-bearing clearance measurement, rocker-arm service, valve-seat reconditioning, oil-pump checks, starter-clutch replacement, crankcase splitting, crankshaft inspection, and balance-shaft work.
The chain-driven camshaft and four-valve cylinder head receive detailed assembly coverage, followed by post-overhaul break-in guidance. The manual assigns valve-guide replacement to a dealer because it requires special tools and substantial expertise.
The manual warns against drawing crankcase halves together with their bolts; interference can indicate a transmission gear installed backward. It also identifies incorrect cam-chain and sprocket indexing as a potential cause of engine damage.
Four-Speed and Five-Speed Drivetrain Coverage
The main Chapter Six overhaul procedure is based on the 1986–1988 four-speed transmission. For 1995-on five-speed models, the manual directs readers to use that procedure with the supplement's revised mainshaft and countershaft exploded views and specifications. This distinction helps match gear positions and component layouts to the transmission being serviced.
Fuel System, Suspension, and Brake Service
Fuel coverage includes Mikuni BS40SS float-height adjustment and a gasoline/alcohol blend test. Emission coverage includes crankcase-breather inspection and cleaning, plus California charcoal-canister service and hose routing.
Chassis chapters detail front-master-cylinder and caliper rebuilding, brake-hose replacement, and rear brake-pedal and cable service. Rear shock absorbers are sealed units: coverage is limited to inspection, preload adjustment, and removal/replacement.
Body and frame procedures cover seat, fender, sidestand, and footpeg removal.
Secure the motorcycle before engine, wheel, or suspension removal, disconnect the battery when specified, and observe the manual's brake-fluid and ignition high-voltage precautions.
Electrical Tests, Wiring Diagrams, and Tools
Circuit drawings include the charging system, ignition circuit, and starter/automatic-decompression control system, with connector and wire-color identification. Model-specific color wiring diagrams cover 1986, 1987–1994, 1995, 1996–2003, and 2004. Switch, lighting, and fuse checks accompany the component tests.
Complete voltage regulator/rectifier and ignitor testing requires Suzuki test equipment, an important boundary before electrical parts are replaced.
Named tool references include the valve-guide-hole reamer and handle (09916-34531 and 09916-34541), flywheel holder (09930-32410), 46 mm socket (09923-12410), rotor remover (09930-30720), and front-fork oil-seal installer (09940-50112). Equivalent tools and shop-made alternatives are discussed where practical.
Selected Clutch Wear Limits
The clutch inspection table gives friction-disc wear limits of 2.62 mm for No. 1 discs and 3.15 mm for No. 2 discs. It also lists 0.10 mm as the clutch-plate warpage limit, alongside separate standard thickness ranges for the two friction-disc types.
