2002 Suzuki Savage LS650P Owner's Manual (P/N 99011-24C57-03A)

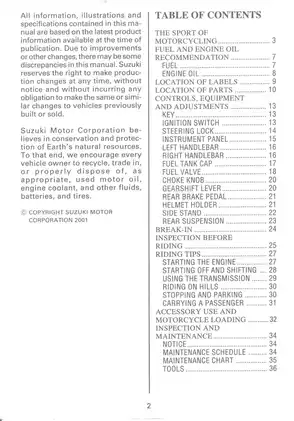

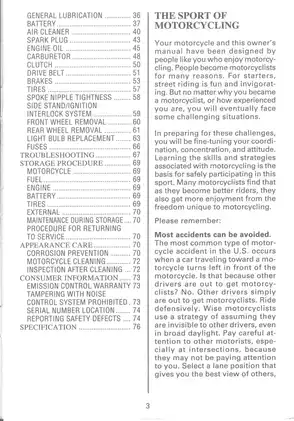

• Document identity and exact coverage: Factory-issued Owner's Manual for the 2002 Suzuki Savage LS650P (K2), prepared in September 2001 by Suzuki Motor Corporation's Motorcycle Service Department. Part No. 99011-24C57-03A; 83-page PDF. This U.S. edition contains California-model notes.
• Controls and starting: Explains the ignition and steering locks, instruments, handlebar controls, diaphragm-type fuel valve, choke, gear selection, and the starter and side-stand interlock systems, with separate cold- and warm-engine starting coverage.
• Owner maintenance: Covers the factory maintenance chart, general lubrication, battery care and removal, air-cleaner service, spark plug inspection and replacement, engine oil and filter changes, and idle, throttle-cable, and clutch-cable adjustments.
• Belt, chassis, and brakes: Details drive-belt inspection, tension-gauge use and pulley alignment, rear suspension preload, front disc and rear drum brake checks, brake adjustment, tire inspection, and spoke-nipple checks.
• Wheel and electrical work: Walks through front and rear wheel removal and refitting, headlight beam adjustment, bulb replacement, fuse checks, and an operational test of the side-stand/ignition interlock.
• Troubleshooting and reference data: Provides fuel- and ignition-system checks for hard starting, no-start, and stalling complaints, plus storage procedures and engine, transmission, chassis, electrical, and capacity specifications.

This is the operating and owner-maintenance manual for the LS650P, not Suzuki's full workshop repair manual. It is suited to riders with mechanical experience who carry out unmarked routine maintenance; Suzuki directs schedule items marked with an asterisk, and any job the owner is unsure about, to a Suzuki dealer or qualified mechanic.

Controls, Riding, and Loading

The controls chapter identifies the ignition switch's OFF, ON, and parking positions; the separate steering lock; speedometer and indicator functions; handlebar switches; fuel cap; clutch; throttle; rear brake; helmet holder; and side stand. The automatic fuel valve receives a clear three-position explanation covering normal running, reserve use, and priming an empty carburetor after the motorcycle has run dry or been stored.

Operating sections address break-in, the pre-ride inspection, starting and shifting, transmission use, hill riding, stopping, parking, and passenger behavior. Accessory and loading guidance covers mounting position, weight distribution, steering and suspension interference, electrical-system loading, and changes needed for two-up riding. The rear shock preload illustrations show how both sides must remain equally adjusted.

Owner-Level Service and Limited Repair Work

The mileage-and-month maintenance chart separates inspection, tightening, and replacement intervals and identifies California-only vapor-hose service. Instructions cover battery electrolyte and charging checks, air-cleaner element removal and cleaning, spark plug selection and removal, engine oil and filter replacement, carburetor idle adjustment, cable free-play settings, and drive-belt inspection and adjustment. Procedures identify when a tachometer, battery hydrometer, feeler gauge, belt-tension gauge, service stand, or jack is needed.

Brake coverage distinguishes the front disc and rear drum systems, with checks for fluid level, leaks, pad wear, shoe wear, pedal travel, and brake-light switch operation. Tire loading, pressure and wear tables are paired with wheel balancing and rotation-direction guidance. Front and rear wheel removal sections address proper support, axle fastener torque, belt realignment, restored brake-lever travel, and a free-rotation check before riding.

Two repair cautions deserve attention. Installing the oil-filter element backward can stop oil flow and damage the engine. Cross-threading or overtightening the spark plug can damage the aluminum cylinder-head threads.

Illustrations, Fault Finding, and Specifications

Useful drawings include the labeled location-of-parts views, fuel-valve position diagram, transmission shift pattern, general lubrication-point diagram, drive-belt tension-gauge and pulley-alignment views, and rear brake-lining wear indicator. Minor electrical work covers the headlight, turn signals, tail/brake light, license-plate light, beam aim, and fuse access.

The troubleshooting section is limited to common hard-start, no-start, and stalling complaints. It traces basic fuel delivery to the carburetor, spark-plug condition, ignition spark, fuel-valve blockage, and idle speed, with explicit fuel-fire and high-voltage warnings. Long-term storage, monthly battery care, return-to-service checks, corrosion prevention, washing, and inspection after cleaning are covered as separate procedures.

Closing tables identify the air-cooled OHC TSCC single-cylinder engine, Mikuni BS40SS carburetor, wet-sump lubrication, wet multi-plate clutch, constant-mesh transmission, belt final drive, front disc/rear drum brakes, electronic ignition, specified tires, bulbs, fuse, dimensions, dry mass, gear ratios, and fluid capacities. Internal engine or transmission repair procedures, carburetor disassembly, hydraulic brake overhaul, and complete wiring diagrams are outside the scope of this owner's manual.
