1996 Mercury/Mariner 8 & 9.9 HP 4-Stroke Outboard Service & Repair Manual (P/N 90-827857R1)

This Mercury Marine service manual covers 1996 Mercury/Mariner 8 and 9.9 HP 4-stroke outboards, with U.S. serial-number coverage starting at 0H000058. Publication 90-827857R1, November 1996, documents manual- and electric-start configurations, with separate information for Bodensee versions.

Text search and wiring detail: Service text and tables are searchable; some labels within wiring illustrations are not. Embedded bookmarks cover the opening pages and manual outline only. Small wire-color codes and connector labels require zooming.

• Powerhead repair: Cylinder-head and crankcase disassembly, valve-clearance adjustment, timing-belt installation, piston inspection, and crankshaft bearing selection.

• Ignition and starting: CDI troubleshooting, DVA and resistance tests, charging-system checks, starter-motor repair, and starting-circuit fault isolation.

• Fuel system: Fuel-pump and carburetor disassembly, diaphragm inspection, float-level adjustment, and electrothermal enrichment-valve testing, including Bodensee differences.

• Lower unit and cooling: Gear-housing overhaul, propeller-shaft installation, bearing and seal replacement, water-pump impeller service, and thermostat testing.

• Steering and controls: Mid-section assembly views, tiller-handle repair, throttle/shift linkage service, and separate procedures for side-shift and remote-control models.

• Manual rewind starter: Rope and spiral-spring replacement, drum and pinion assembly, spring-tension adjustment, and shift-interlock cable setup.

Written for Mercury dealer mechanics and company service personnel, this manual assumes training in outboard service and familiarity with the specified shop tools.

CDI Diagnosis, Charging Systems, and Wiring

The ignition troubleshooting tables link no-spark, weak-spark, misfire, and timing symptoms to DVA and resistance checks. These references help narrow down a suspected ignition fault before component replacement; they also explain how low oil pressure affects CDI operation. Ignition timing is electronically controlled and is not mechanically adjustable.

Charging coverage distinguishes the manual-start lighting coil and optional charging accessories from the regulated electric-start system. Starter-current specifications, ignition-coil output data, and the rectifier/regulator diode test chart support electrical diagnosis. The manual identifies Multimeter/DVA Tester 91-99750A1.

Manual- and electric-start wiring diagrams accompany the starting-circuit troubleshooting flow chart. Commander, Commander 2000, and Commander 3000 control wiring adds connector and switch details for the covered remote-control arrangements.

Fuel-system work and high-voltage ignition testing require the precautions given in the manual, including electrical isolation where specified.

Fuel-Pump and Carburetor Variants

Fuel-pump repair covers the diaphragm, check valve, and plunger, with a separate cooling jacket on Bodensee pumps. Carburetor procedures include needle-valve inspection and electrical and movement checks for the electrothermal valve.

Bodensee and standard versions have different carburetor specifications. The pilot-mixture adjustment procedure specifically excludes Bodensee models, and the powerhead chapter shows their different water-hose routing.

Cylinder Head, Crankcase, and Engine Measurements

Internal engine repair extends to valve-guide replacement, valve-seat reconditioning, camshaft inspection, and oil-pump servicing. Valve-dimension drawings and cylinder-head tightening-sequence illustrations accompany the inspection limits and torque tables. The valve-adjustment section identifies wrench 91-809498A1.

Crankcase code letters and bearing colors are cross-referenced for main-bearing selection. Further reference data cover crankshaft runout, piston and ring clearances, connecting-rod oil clearance, oil-pump clearances, and relief-valve pressure specifications.

The timing-belt section warns that incorrect gear alignment can bring valves into contact with the pistons.

Gear-Housing Repair and Mid-Section Assemblies

Lower-unit coverage includes short- and long-shaft components, bearing-carrier removal, sliding-clutch inspection, and gearcase pressure-leak testing. Forward and reverse backlash and pinion depth are nonadjustable. Bearing Carrier Tool 91-13664 is identified for the threaded carrier.

The water-pump instructions warn that reversing the established vane direction of a reused impeller can cause vane breakage.

Exploded views identify the driveshaft housing, swivel bracket, steering handle, and clamp bracket, with component torque and lubrication references.

Control Linkage, Maintenance, and Performance Checks

Control procedures distinguish tiller-handle shift, side shift, and remote-control platforms. Adjustment illustrations show single- and triple-mark platforms; remote linkage service separates throttle-arm spring and retaining-ring designs.

Inspection schedules cover routine service and the 300-hour/three-year interval, plus seasonal storage. Compression and cylinder-leakage analysis help distinguish valve, piston-ring, and head-gasket leakage, while the weather-related horsepower-loss chart and propeller-selection guidance address performance complaints.

English PDF and Included Pages

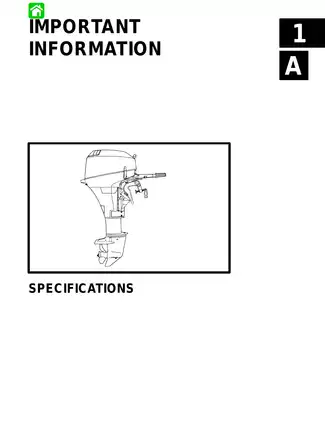

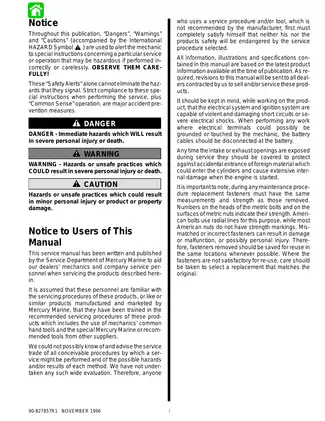

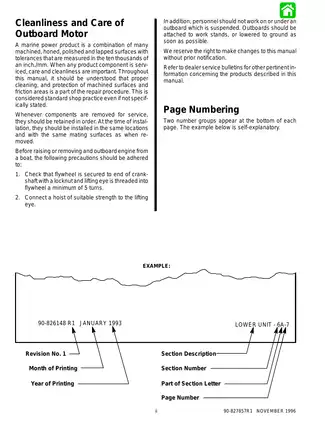

One printable 251-page PDF contains 224 service and reference pages, one cover, three introductory pages, 18 section-divider pages, and five Notes pages. All are included in the total.
