Cub Cadet Models Covered & Key Technical Specifications

Models: International Cub Cadet 582, 582 Special, 682, 782, 982

Coverage: Chassis, IH Equipment

Model Year: 1981

Transmission variants: 582 (standard gear drive), 582 Special (belt-driven transaxle), 682, 782 and 982 (hydrostatic drive)

Wiring diagram serial limits (handwritten): 682 and 782 (S/N 719,999 and below), 982 (S/N 744199 and below)


  • Engine mounting bolt torque: 27 to 34 N·m (20–25 ft. lbs.)

  • Front PTO armature-to-rotor gap before installation: 1.5 to 3.2 mm (0.060 to 0.125 in.)

  • Front PTO armature-to-rotor air gap, installed and disengaged: 0.25 to 0.38 mm (0.010 to 0.015 in.)

  • Steering wheel nut torque: 43 to 50 N·m (32 to 37 ft. lbs.)

  • Transmission fluid warm-up temperature for hydraulic pressure testing: Approximately 130°F

Cub Cadet Manual Features & Selected Content Preview

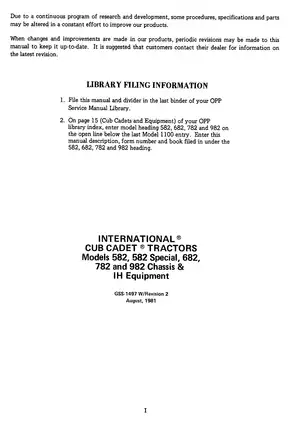

International Harvester’s August 1981 service manual (P/N GSS-1497, Revision 2) covers the International Cub Cadet 582, 582 Special, 682, 782, and 982 tractor chassis and IH equipment.

PDF Search and Page Condition

Text search and wiring labels: Text search covers part of the manual. Wiring labels need magnification and are outside the searchable text. The PDF has no embedded bookmarks. Printed page 2-45 is cropped, cutting off part of the hydrostatic theory text and illustration. The referenced hydrostatic foldout is absent.

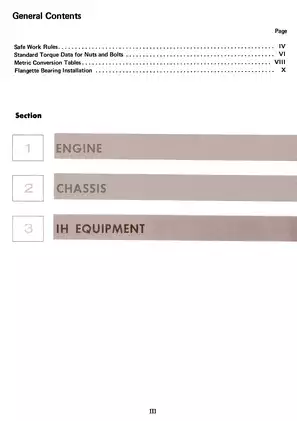

The download contains one 168-page printable English PDF, including both covers, nine preliminary and reference pages, and 30 inserted 582 Special pages covering drivetrain and brake service.


Drivetrain, PTO, and Implement Service

These selected topics show what the manual covers. It also illustrates flangette bearing installation and explains how to fit the seat and safety start switches.

  • 582 gear drive: Clutch repair, tractor splitting and recoupling, reduction-drive overhaul, transmission and differential rebuilding, and creeper-drive service.
  • 582 Special drivetrain: Step-by-step instructions for drive-belt replacement, plus clutch spring and linkage service, right-angle-drive overhaul, and transaxle and differential repair.
  • Hydrostatic drive: Check-valve diagnosis, charge-pump service, pump and motor overhaul, speed-control adjustment, and cam-bracket neutral-return checks.
  • Hydraulic lift: Charge and implement pressure testing, relief-valve adjustment, lift-cylinder rebuilding, and single- and double-spool control-valve service.
  • Steering and brakes: Steering assembly overhaul, front axle and wheel-bearing inspection, and model-specific internal and external brake repair.
  • PTO and electrical: Front PTO troubleshooting, clutch removal and adjustment, 982 rear PTO and hitch service, and model-specific wiring diagrams.
  • IH implements: Mower spindle repair and deck leveling, snow thrower gearbox and auger-bearing service, and rotary tiller tine replacement and timing.

This manual suits mechanics experienced in drivetrain repair and equipped for tractor support, bearing work, and hydraulic pressure testing.

Engine Removal and Installation

The engine section covers removal and installation. Internal engine specifications and overhaul procedures are in separate manuals: GSS-1498 for the 582 and 582 Special, GSS-1495 for the 682 and 782, and GSS-1484-1 for the 982. Those manuals are sold separately from this publication.

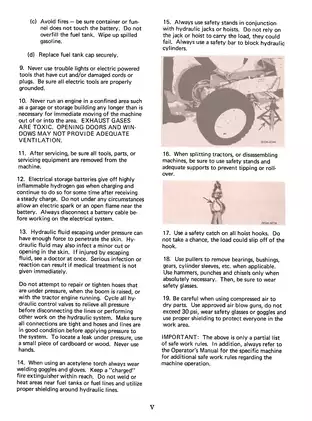

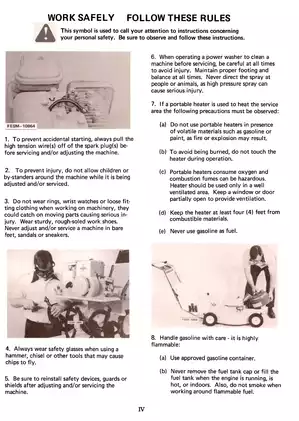

Follow the manual’s support, hoisting, and pressure-release precautions when splitting the tractor, lifting the engine, or servicing the hydrostatic system.

582 and 582 Special Drivetrain Repair

582 gear drive: Repair details include countershaft gear and spacer arrangement, differential bearing preload, bevel-pinion backlash, and tooth-contact checks. Creeper-drive section views show the planetary assembly and shift mechanism.

582 Special: Post-assembly transaxle checks help identify internal binding and verify gear operation before reinstallation. The right-angle-drive section warns that drilling into the input seal can damage the ball bearing underneath.

Hydrostatic Transmission and Lift Hydraulics

Drive diagnosis: The troubleshooting section separates one-direction drive loss from slow or absent travel in both directions, helping narrow the checks before teardown. An exploded view identifies the center section, cylinder blocks, piston slippers, valve plates, and swash plates. Driving the swash-plate pins too far can puncture the housing.

Lift hydraulics: Charge pressure specifications distinguish the 682 without hydraulic lift from the lift-equipped 782 and 982. The service procedures cover cylinder resealing, control-valve repair, air removal, and leak checks.

Steering, Axles, and Brakes

The 982 has separate steering and front axle procedures. Rear axle and axle housing service applies to every covered model except the 582 Special, which has its own transaxle section.

Brake procedures distinguish the 582 internal brake, the hydrostatic internal brakes on the 682 and 782, and the external brakes on the 982 and 582 Special.

PTO Clutches and Wiring Diagrams

Clutch service: The front PTO chart links engagement and slow-drive symptoms to fuse, wiring, field-coil, belt, and attachment checks. The 982 rear PTO section covers the drive shaft, bearing housing, and pulley hub.

Circuit tracing: The 582 and 582 Special schematics show a normally closed seat switch. The 682, 782, and 982 schematics show normally open switches. Wire-color legends and key-switch contact tables identify connections, and the 982 diagram includes the optional rear PTO relay circuit. Handwritten serial limits appear on the 682/782 and 982 diagrams.

IH Mowers, Snow Throwers, and Rotary Tillers

38C, 44C, and 50C mowers: Center and outer spindle assembly views accompany spindle inspection, blade sharpening, and belt adjustment.

QA 36A and QA 42A snow throwers: The manual covers attachment, removal, lubrication, runner and chain adjustment, and gearbox repair. Gearbox pulley callouts identify two-jaw puller 17-473-3 and bearing puller 17-473-22.

Model 2 and 2B rotary tillers: Tine orientation and timing drawings accompany replacement instructions and gearbox service. Gear backlash is factory-set.

Lift Pressure and PTO Test Data

At maximum idle with the lift cylinder at the end of its raise stroke, specified lift pressure is 500–625 psi for the 782 and 700–900 psi for the 982. The front PTO troubleshooting chart lists 3.5–4.0 A as normal current draw at the battery with the clutch engaged and the field coil properly grounded.

The manual also provides standard fastener torque and bolt identification charts, metric conversion tables, and component data for steering-sector jam nut torque, clutch spring tests, and hydrostatic wear limits.
