1992–1997 Mercury 135–225 HP V-6 Outboard & 105/140 Jet Service Manual (P/N 90-824052R2)

This Mercury Marine service manual, publication 90-824052R2 (September 1997), covers the listed 1992–1997 Mercury 135–225 HP V-6 outboards, serial 0D082000 and above, including carbureted and EFI models, XR6/Magnum III, Pro Max/Super Magnum, and 105/140 Jet configurations.

• Powerhead repair: Removal, disassembly, cylinder and piston inspection, crankshaft and reed-block service, thermostat testing, and reassembly for standard and high-performance engines.

• Ignition and starting: Spark-loss diagnosis, DVA tests, charging-system checks, starter overhaul, and timing/synchronizing procedures with model-specific wiring diagrams.

• Fuel and oil systems: WMH/WMV carburetor overhaul, EFI pressure and sensor tests, vapor-separator service, oil-pump bleeding, and warning-system troubleshooting.

• Mid-section and power trim: Clamp/swivel brackets, driveshaft housing, trim-ram repair, motor testing, hydraulic troubleshooting, and system purging.

• Lower unit and jet drive: Standard/counter-rotation gearcase overhaul, water-pump impeller replacement, pinion-depth and backlash adjustment, plus Jet impeller and liner service.

• Installation and controls: Outboard mounting, Ride Guide steering installations, and throttle/shift cable adjustment for production and Pro Max/Super Magnum configurations.

Written for Mercury dealer mechanics and service personnel, the manual assumes training in outboard servicing and familiarity with the specified workshop tools.

Powerhead Inspection and Cooling Service

Powerhead specifications cover compression, cylinder-bore sizing, piston inspection limits, and crankshaft bearings. Crankcase-cover and cylinder-head torque-sequence drawings support reassembly; the cylinder block and crankcase cover are a matched, line-bored assembly.

Cooling work includes thermostat testing and water-pressure relief-valve service. The maintenance schedule specifies service every 100 hours or annually, whichever comes first, alongside before-use, after-use, and storage checks.

EFI Versions, Carburetors, and Oil Injection

EFI configurations: Separate chapters cover serial 0G303045 and below and 0G303046 and above, distinguishing external fuel pumps from pumps inside the vapor separator. Fuel-flow diagrams and low/high-pressure diagnostic charts help separate fuel-delivery faults from electrical problems before major fuel-system disassembly.

Carburetors and lubrication: Jet-location drawings, the High Altitude Jet Chart, float adjustments, and carburetor synchronization accompany oil-injection flow tests and warning-module diagnosis.

Pro Max/Super Magnum testing: The bleed-fitting injector-delivery test does not apply to these engines. The manual refers this check to Digital Diagnostic Terminal 91-823686A2 and its separate instructions.

Ignition, Charging, and Starting Diagnosis

Tests address stators, triggers, switch boxes, idle stabilizers, and voltage regulators. The Ignition System Test Chart uses DVA readings; the Starter Circuit Troubleshooting Flow Chart follows test points and starter-solenoid response. Timing tables distinguish cranking and running settings.

The ignition procedures warn that cranking with ungrounded switch boxes can damage them. Working with marine electrical and fuel systems involves high voltages and pressurized lines; follow the manual's safety procedures.

Gearcase Variants and Jet Pump Repair

Standard-rotation and counter-rotation sections distinguish gearcases through serial 0G437999 from non-ratcheting units starting at 0G438000. A dedicated XR6/Magnum III section accompanies CLE, TorqueMaster, and Sportmaster coverage.

Pinion-depth and backlash procedures include bearing preload and shimming, with gearcase lubricant-capacity tables for reference. Jet-drive work covers driveshaft bearings and seals, impeller-clearance adjustment, and liner replacement.

Power Trim Hydraulics and Motor Designs

Square-motor/solenoid and round-motor/relay systems have separate electrical troubleshooting coverage. Three-ram hydraulic circuit drawings explain trim, tilt, and shock functions; pressure checks with Test Gauge Kit 91-52915A6 verify operation after repair.

Motor and ram repairs are covered, while a defective trim pump is replaced as an assembly. The priming instructions warn that running an unprimed pump can damage its driveshaft.

A Preview of Ignition Resistance and EFI Pressure Data

These are a few of the ignition and EFI test specifications included in the manual.

Blue ignition coils are listed at 800–1100 ohms between the coil tower and either primary terminal. The stator test specifies 3500–4200 ohms between the blue and red leads.

During the key-on, engine-off fuel-pump pressure check, the EFI specification is 36–39 psi for serial 0G303045 and below, and 34–36 psi for serial 0G303046 and above.

PDF Navigation, Diagram Detail, and Page Count

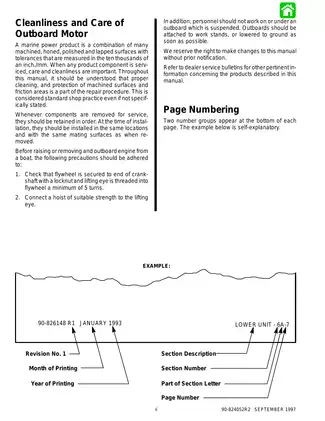

Text search and diagram access: Body text and tables are searchable, with embedded bookmarks for the main sections and many individual procedures. Some labels inside wiring graphics require visual lookup; small wire codes and connector markings require zooming for comfortable reading.

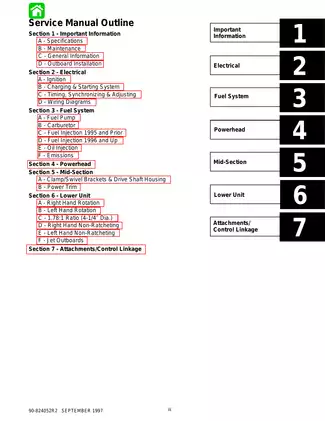

Supplied as one printable 800-page PDF, including the original cover, three introductory/outline pages, 24 section dividers, and eight notes pages. All are included in the stated total.
